Product Description

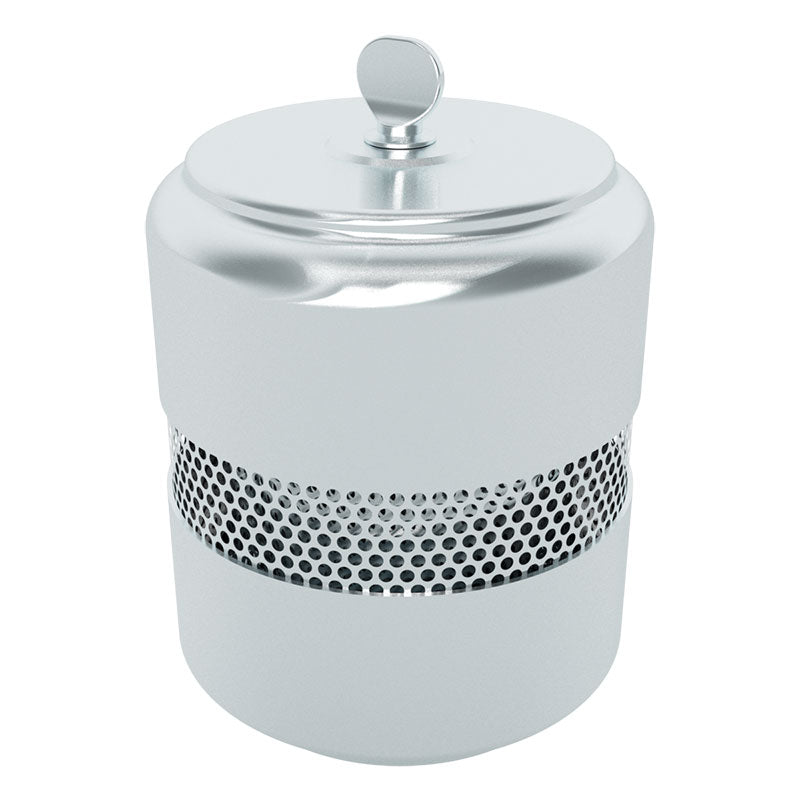

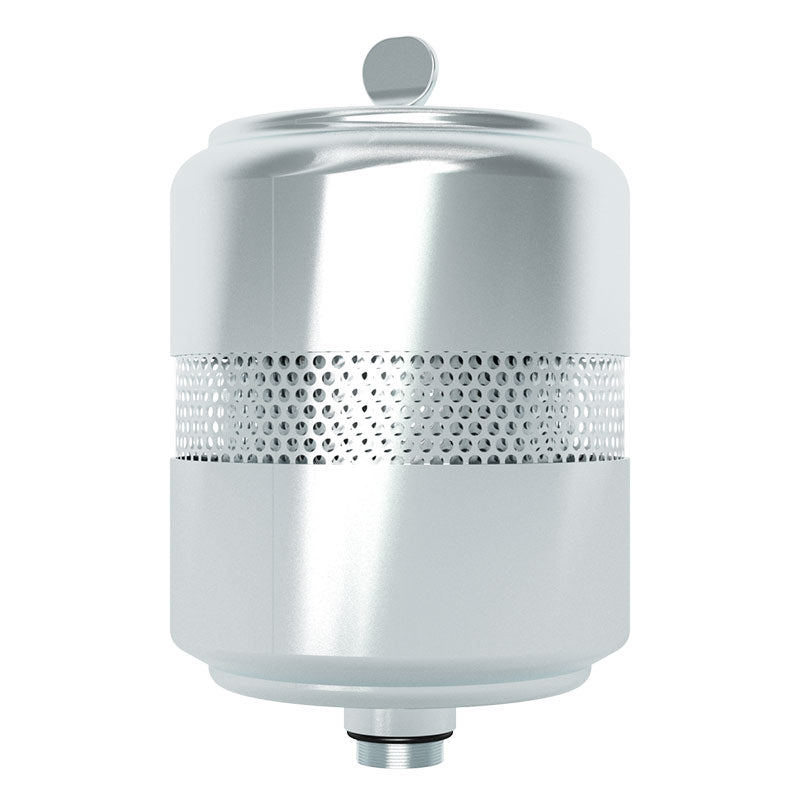

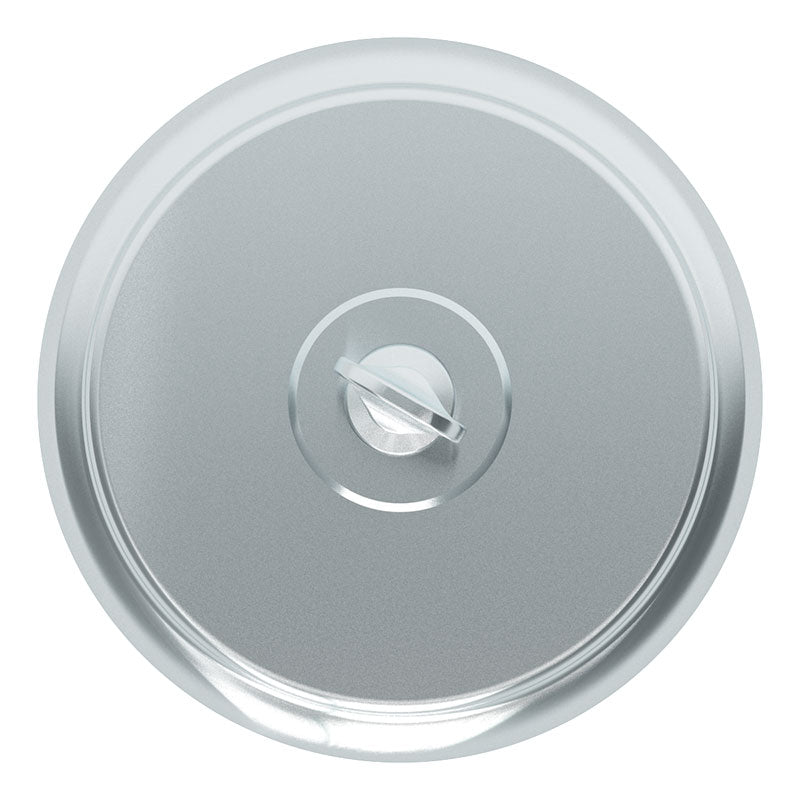

Solberg EF-FG10-103 Oil Mist Discharge Filter
The Solberg EF-FG10-103 is a high-efficiency oil mist discharge filter designed for oil-sealed vacuum pumps and industrial exhaust systems. It captures fine oil fog, mist, and aerosol particles from exhaust streams, helping maintain clean air environments, reduce emissions, and protect downstream equipment.
This model features a durable steel housing with a corrosion-resistant white powder-coated finish and a replaceable FG10 coalescing element. It is engineered for continuous-duty operation in demanding industrial and laboratory vacuum applications where reliable oil separation and safety are critical.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 1" 1-20 UNEF threaded inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Integrated back pressure relief valve for pump safety (opens at approx. 0.5 bar differential)
- Seamless drawn steel housing construction
- Nickel-plated corrosion-resistant finish
- Easy maintenance with replaceable FG10 element
- Oil drain port for collected condensate
- Vertical installation design for proper drainage
Specifications
- Model: EF-FG10-103
- Series: EF Compact Oil Mist Filter Series
- Connection Size: 1" (1-20 UNEF)
- Flow Capacity: ~24 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Steel (powder coated, corrosion resistant)
- Element Type: FG10 coalescing cartridge
- Drain Port: 1/8" NPSC
- Approximate Weight: ~3 lbs
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial and laboratory vacuum systems
- Vacuum coating and freeze drying systems
- Semiconductor and electronics manufacturing
- Refrigeration and HVAC evacuation service
- Leak detection and vacuum testing systems
- Industrial process exhaust filtration
Benefits
- Improves workplace air quality by reducing oil mist emissions
- Protects vacuum pumps from harmful backpressure conditions
- Enhances system safety with built-in relief protection
- Supports reliable continuous-duty operation
The EF-FG10-103 is engineered to provide reliable oil mist separation with enhanced safety features, making it suitable for demanding vacuum applications requiring both efficiency and protection.
