Product Description

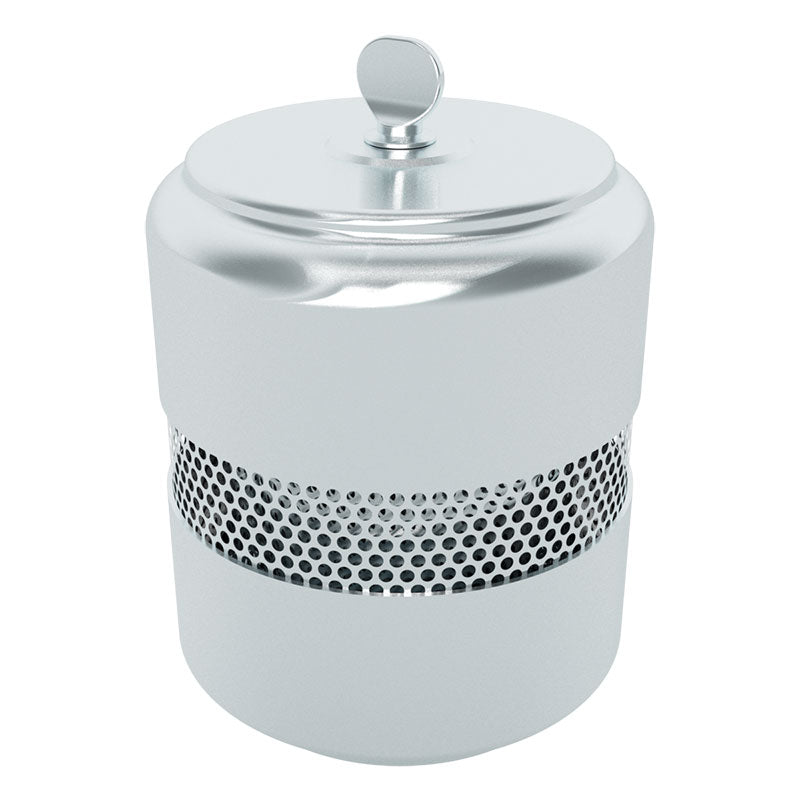

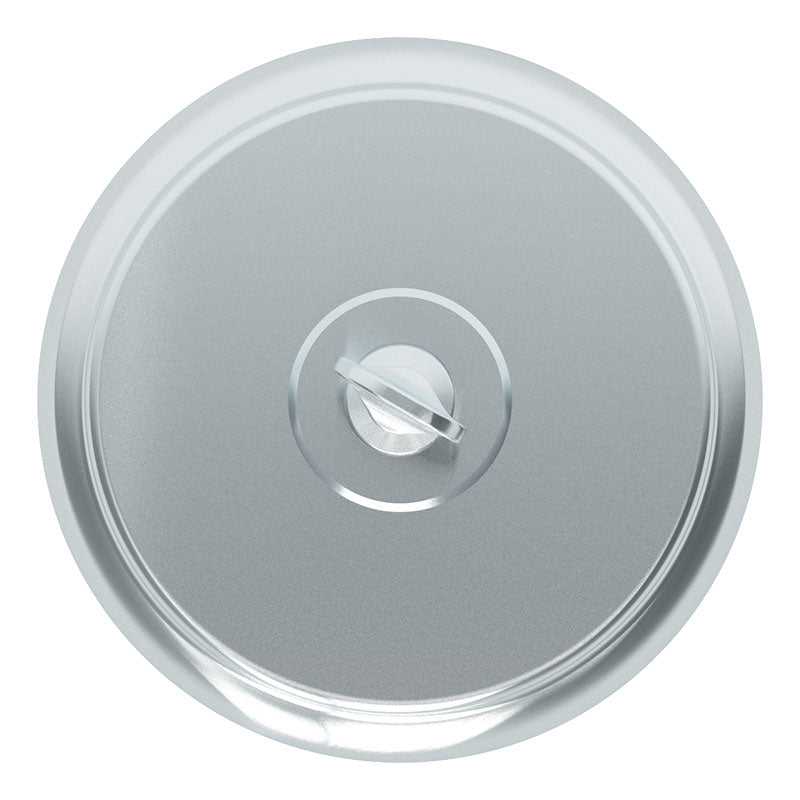

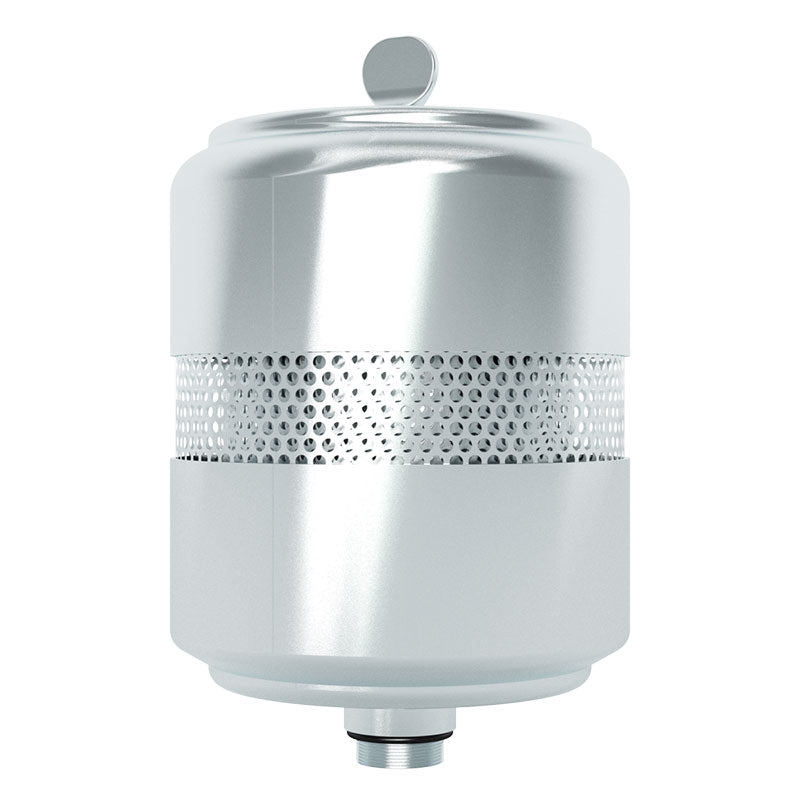

Solberg EF-FG10-177 Oil Mist Discharge Filter
The Solberg EF-FG10-177 is a high-efficiency oil mist discharge filter designed for oil-sealed vacuum pumps and industrial exhaust systems. It captures fine oil fog, mist, and aerosol particles from pump exhaust, helping maintain cleaner air, reduce emissions, and protect surrounding equipment in demanding industrial environments.
This model features a rugged steel housing with a nickel-plated corrosion-resistant finish and a replaceable FG10 coalescing element. It is engineered for continuous-duty operation and includes a safety pressure relief valve to protect the vacuum pump from excessive backpressure conditions.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 1.75" 1-20 UNF threaded connection
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Integrated backpressure relief valve (opens at approx. 0.5 bar differential)
- Seamless drawn steel housing construction
- Nickel-plated corrosion-resistant finish
- Easy maintenance with replaceable FG10 element
- Oil drain port for collected condensate recovery
- Vertical mounting design for proper drainage
Specifications
- Model: EF-FG10-177
- Series: EF Oil Mist Discharge Filter Series
- Connection Size: 1.75" (1-20 UNF)
- Flow Capacity: ~24 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Steel (nickel-plated finish)
- Element Type: FG10 coalescing cartridge
- Drain Port: 1/8" NPSC
- Approximate Dimensions: ~8.1" length (varies by configuration)
- Approximate Weight: ~3–3.5 lbs
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum systems and process equipment
- Vacuum coating and freeze drying systems
- Semiconductor and electronics manufacturing
- Leak detection and testing systems
- Refrigeration and HVAC evacuation service
- General industrial oil mist recovery applications
Benefits
- Improves air quality by reducing oil mist emissions
- Protects vacuum pumps from harmful backpressure conditions
- Enhances system safety with integrated relief protection
- Supports stable, continuous-duty industrial operation
The EF-FG10-177 is engineered for high-performance oil mist separation in larger vacuum systems, combining efficiency, safety, and durability for demanding industrial use.
