Product Description

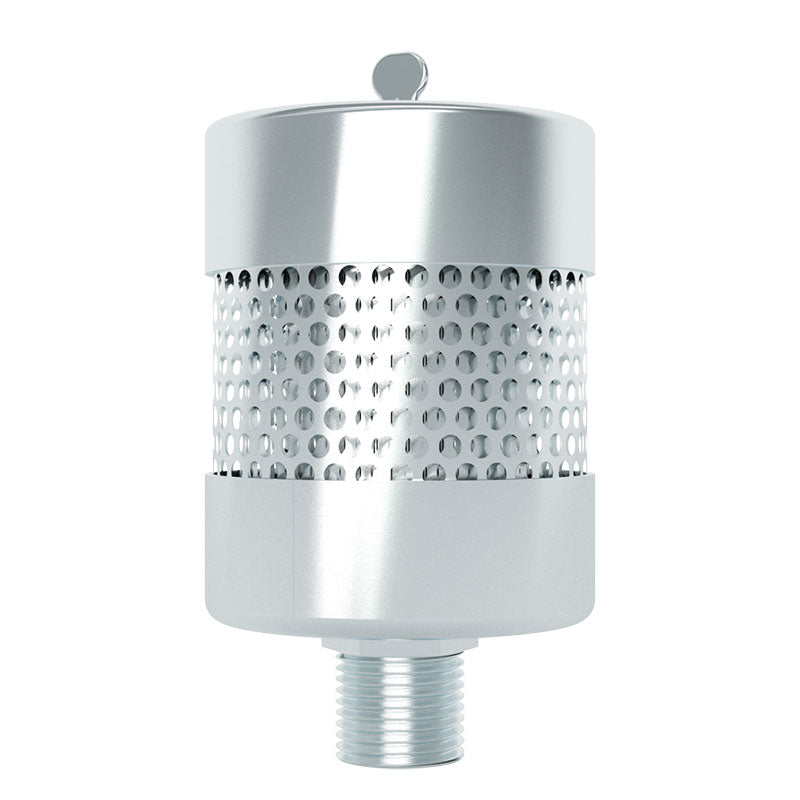

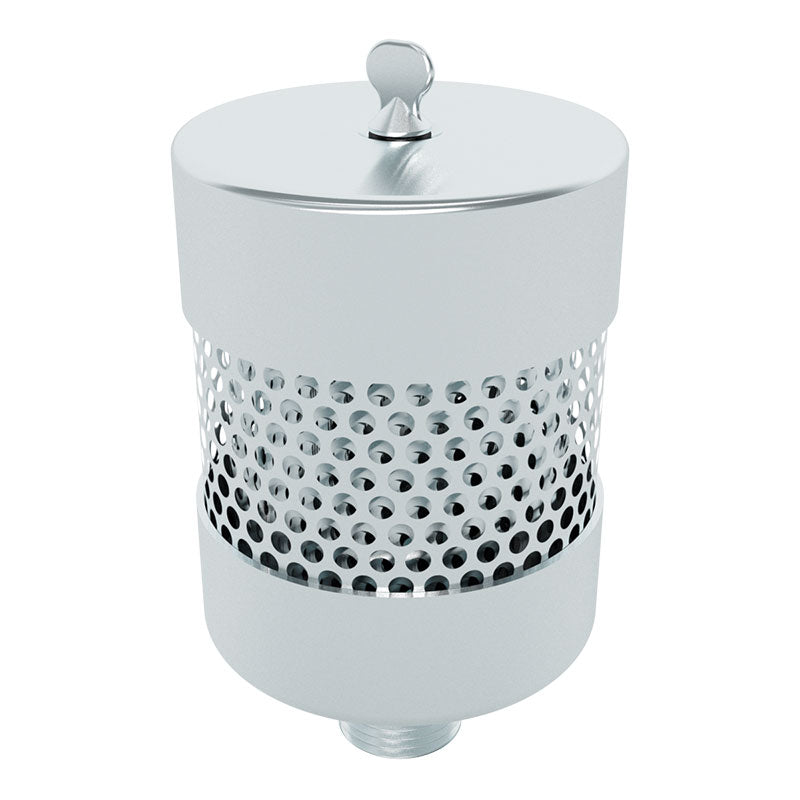

Solberg EF-FG5-050 Compact Oil Mist Discharge Filter
The Solberg EF-FG5-050 is a compact oil mist discharge filter designed for small oil-sealed vacuum pumps and industrial exhaust systems. It captures fine oil fog, mist, and aerosol particles from pump exhaust, helping maintain cleaner air, protect equipment, and reduce environmental contamination.
This filter is built with a durable steel housing and nickel-plated finish for corrosion resistance. Its compact inline design makes it ideal for space-constrained installations while still delivering high-efficiency coalescing filtration performance.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum exhaust
- 0.5" MPT inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact low-profile inline design
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy thumb-screw access for element replacement
- Oil drain-back design returns collected oil to pump
Specifications
- Model: EF-FG5-050
- Series: EF Series Compact Oil Mist Filters
- Connection Size: 0.5"
- Connection Type: MPT
- Filtration Type: Coalescing oil mist separator
- Filtration Rating: 0.3 micron
- Efficiency: 99.97%
- Flow Capacity: ~4.5 SCFM
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Steel with nickel-plated finish
- Approximate Weight: ~0.6 lbs
- Replacement Element: FG5
Applications
- Small oil-sealed vacuum pump exhaust systems
- Laboratory vacuum equipment
- Leak detection and vacuum testing systems
- Vacuum coating and freeze drying systems
- Refrigeration and HVAC evacuation service
- Semiconductor and electronics manufacturing
Benefits
- Improves workplace air quality
- Reduces oil mist emissions
- Helps extend vacuum pump life
- Supports clean and efficient system operation
The EF-FG5-050 is engineered for compact systems requiring reliable oil mist separation, offering efficient filtration performance in a small and easy-to-maintain design.
