Product Description

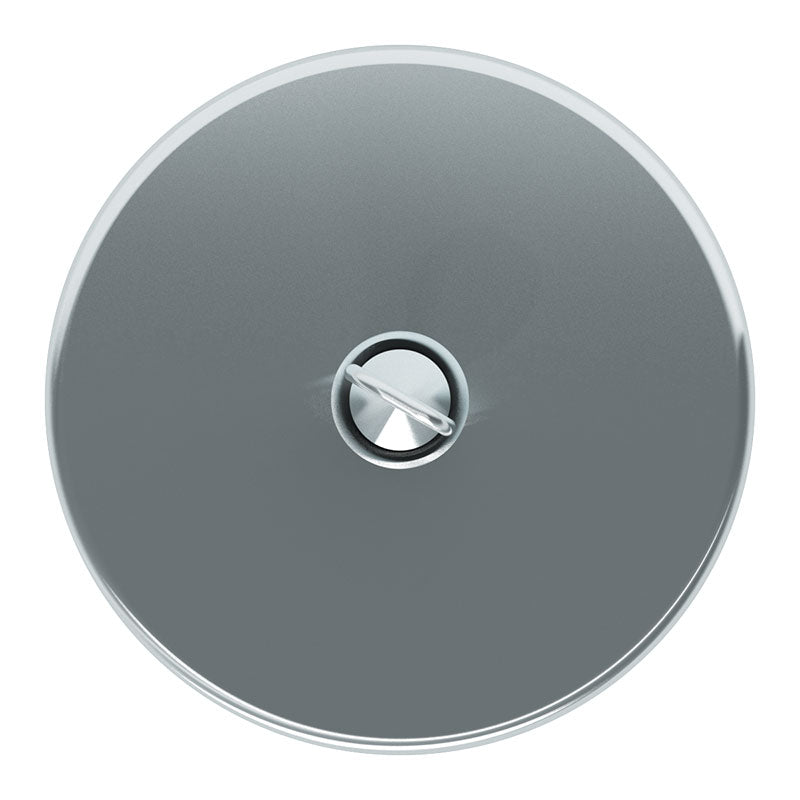

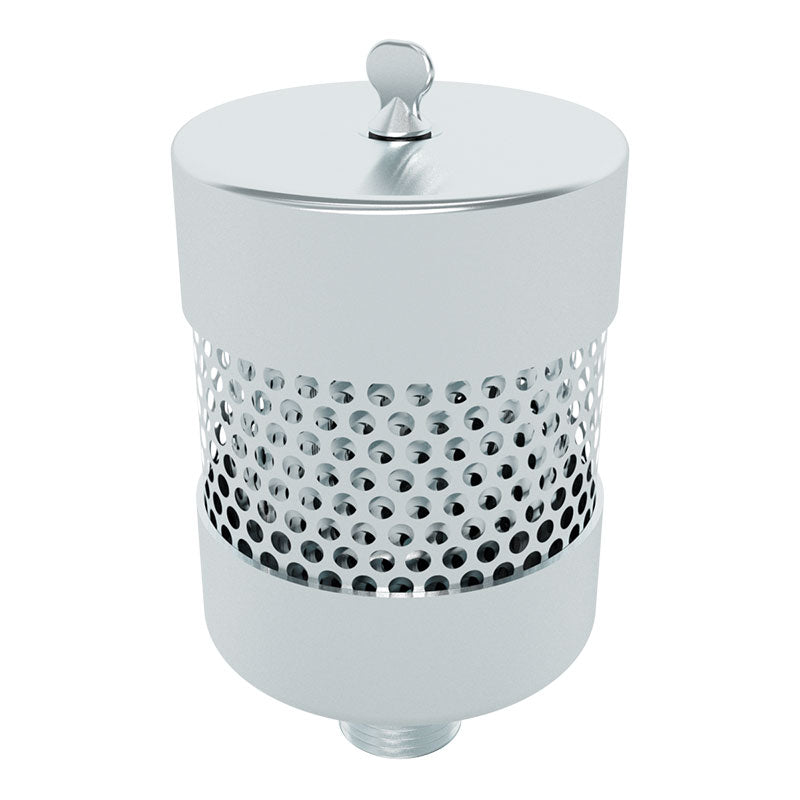

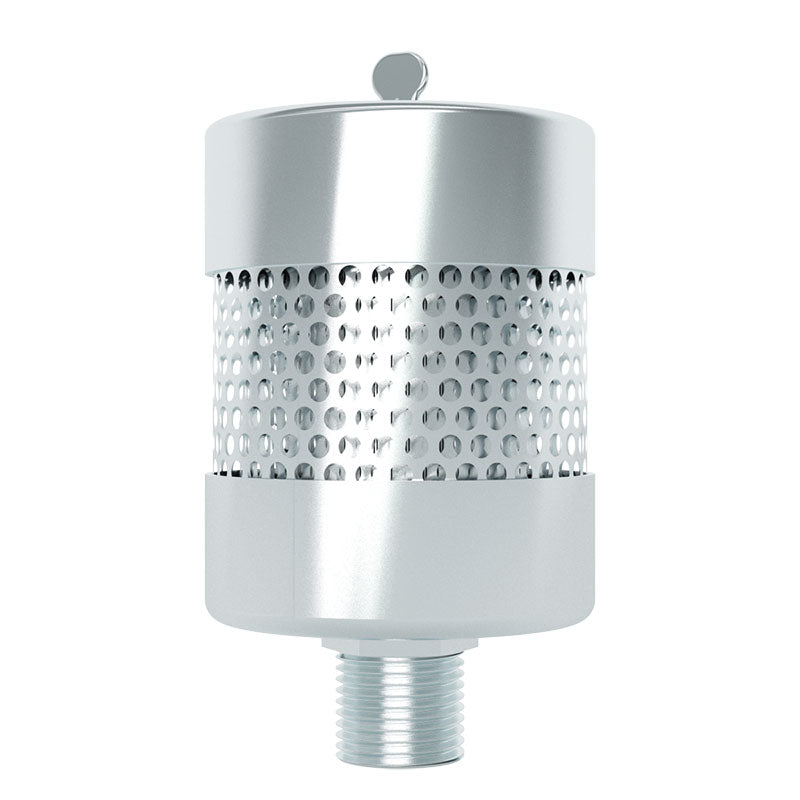

Solberg EF-FG5-103 Compact Oil Mist Discharge Filter
The Solberg EF-FG5-103 is a compact high-efficiency oil mist discharge filter designed for small oil-sealed vacuum pumps and industrial exhaust systems. It effectively captures fine oil fog, mist, and aerosol particles from exhaust streams, helping maintain clean air quality, protect equipment, and reduce oil emissions.
This model features a durable nickel-plated steel housing with a replaceable coalescing filter element. Its compact inline design makes it ideal for space-constrained installations while still delivering reliable oil mist separation performance in continuous-duty applications.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 1" MPT inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for small vacuum systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG5 element
- Oil drain-back design returns collected oil to pump
- Low pressure drop for efficient operation
Specifications
- Model: EF-FG5-103
- Series: EF Compact Oil Mist Filter Series
- Connection Size: 1" MPT
- Flow Capacity: ~4.5 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Nickel-plated steel
- Weight: ~0.7 lbs
- Replacement Element: FG5
Applications
- Small oil-sealed vacuum pump exhaust systems
- Laboratory vacuum systems
- Vacuum coating and freeze drying systems
- HVAC and refrigeration evacuation
- Leak detection and testing systems
- Light industrial vacuum applications
Benefits
- Improves workplace air quality by reducing oil mist emissions
- Protects sensitive equipment from contamination
- Compact design for easy integration
- Supports efficient and stable vacuum pump operation
The EF-FG5-103 is engineered to deliver reliable oil mist separation in compact vacuum systems, combining high efficiency filtration with a durable, low-maintenance design.
