Product Description

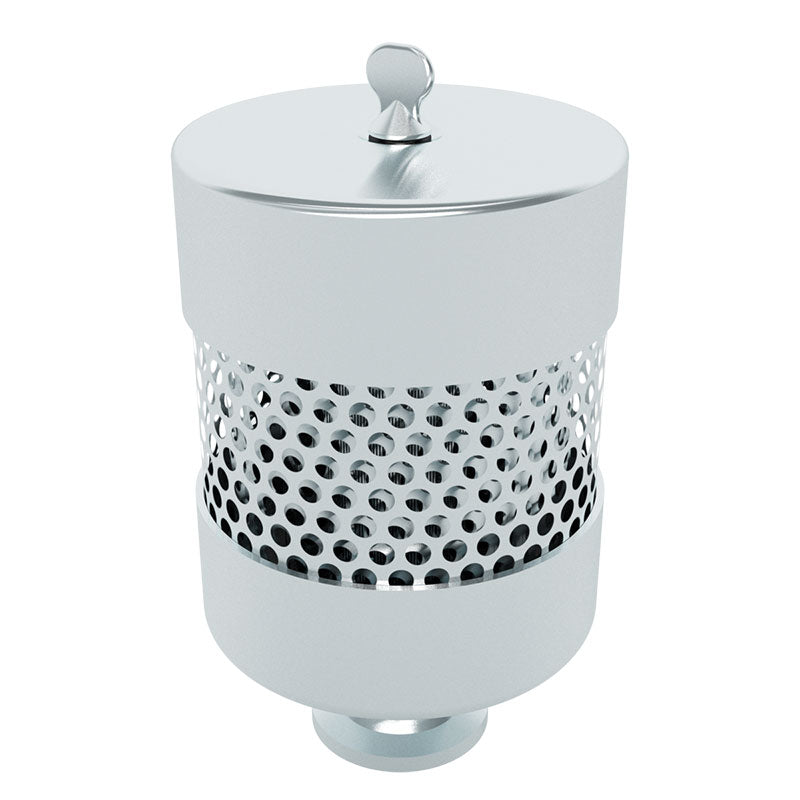

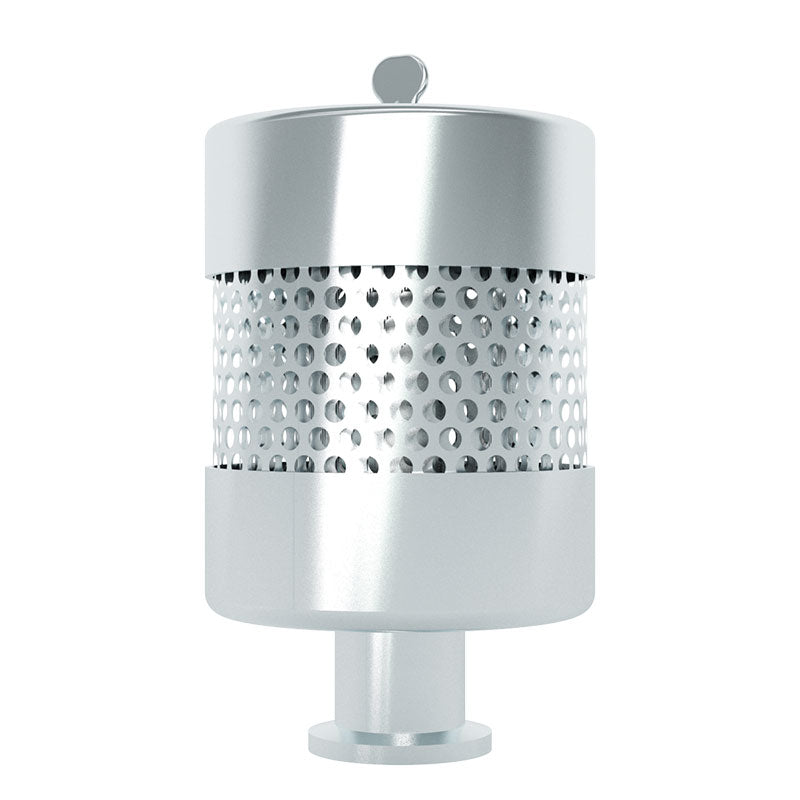

Solberg EF-FG5-NW16 Compact Oil Mist Discharge Filter
The Solberg EF-FG5-NW16 is a compact oil mist discharge filter designed for small oil-sealed vacuum pumps and laboratory-grade vacuum systems. It is engineered to capture fine oil fog, mist, and aerosol particles from exhaust streams, helping maintain clean operating environments and reduce oil emissions.
This model features a durable steel housing with a nickel-plated corrosion-resistant finish and a high-efficiency coalescing element. Its compact inline design with NW16 ISO flange connections makes it ideal for laboratory, semiconductor, and precision industrial vacuum applications where space and cleanliness are critical.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum exhaust
- NW16 ISO flange inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for laboratory and OEM systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG5 element
- Oil drain-back design returns collected oil to pump
- Low pressure drop for efficient vacuum operation
Specifications
- Model: EF-FG5-NW16
- Series: EF Compact Oil Mist Filter Series
- Connection Type: NW16 ISO flange
- Flow Capacity: ~4.5 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Steel (nickel-plated finish)
- Media Type: Coalescing element
- Replacement Element: FG5
- Approximate Dimensions: ~101.6 mm length (varies by configuration)
- Approximate Weight: ~0.27 kg
Applications
- Small oil-sealed vacuum pump exhaust systems
- Laboratory vacuum systems
- Semiconductor and electronics manufacturing
- Vacuum coating and freeze drying equipment
- Leak detection and vacuum testing systems
- Refrigeration and HVAC service evacuation
Benefits
- Improves workplace air quality by reducing oil mist
- Protects sensitive vacuum systems from contamination
- Compact design for tight OEM integration
- Supports stable and efficient vacuum pump operation
The EF-FG5-NW16 is engineered for precision vacuum applications requiring reliable oil mist separation in a compact, easy-to-maintain form factor.
