Product Description

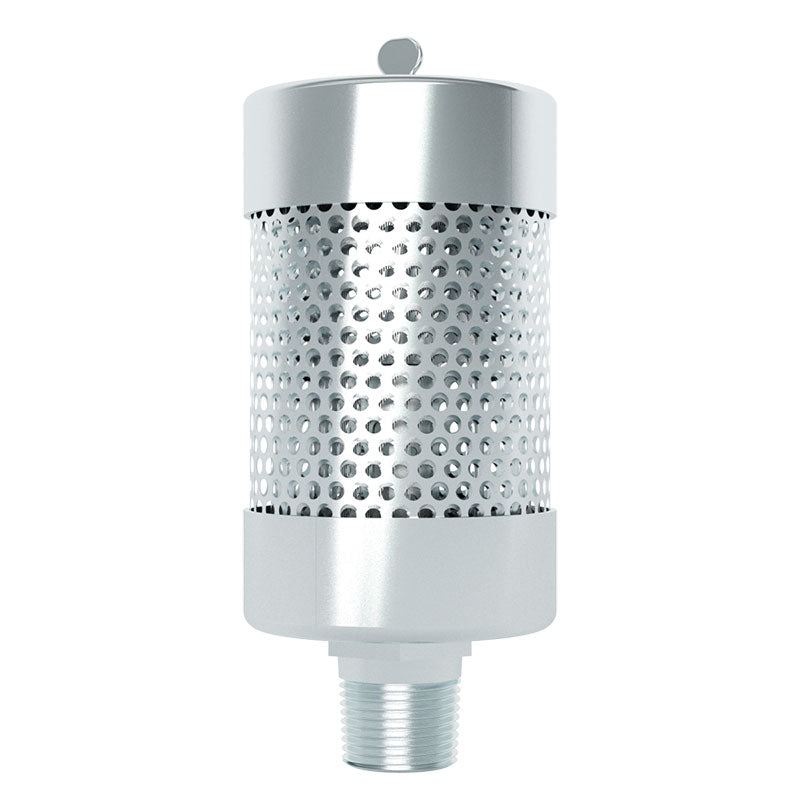

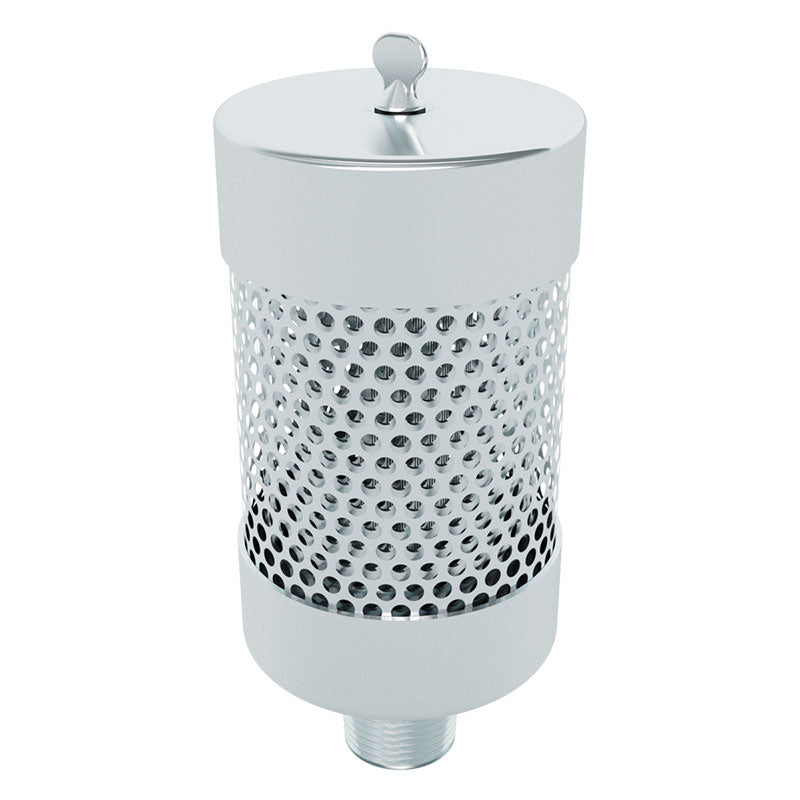

Solberg EF-FG7-103 Compact Oil Mist Discharge Filter
The Solberg EF-FG7-103 is a compact high-efficiency oil mist discharge filter designed for oil-sealed vacuum pumps and light industrial or laboratory vacuum systems. It effectively captures fine oil fog, mist, and aerosol particles from exhaust air streams, helping maintain clean environments and reducing oil emissions during vacuum operation.
This model features a durable steel housing with a nickel-plated corrosion-resistant finish and a replaceable high-efficiency coalescing element. Its compact inline design makes it suitable for space-constrained installations while still delivering consistent filtration performance in continuous-duty applications.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 1" 1-20 UNEF threaded connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for small vacuum systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG7 element
- Oil drain-back design returns collected oil to pump
- Low pressure drop for efficient operation
Specifications
- Model: EF-FG7-103
- Series: EF Compact Oil Mist Filter Series
- Connection Size: 1" (1-20 UNEF)
- Flow Capacity: ~7 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Nickel-plated steel
- Weight: ~0.8 lb
- Replacement Element: FG7
Applications
- Small oil-sealed vacuum pump exhaust systems
- Laboratory vacuum systems
- Vacuum coating and freeze drying systems
- Refrigeration and HVAC evacuation service
- Leak detection and testing systems
- Light industrial vacuum applications
- Semiconductor and electronics manufacturing
Benefits
- Improves air quality by reducing oil mist emissions
- Protects sensitive equipment from contamination
- Compact design for easy integration
- Supports stable and efficient vacuum pump operation
The EF-FG7-103 is engineered to provide reliable oil mist separation in compact vacuum systems, combining high-efficiency filtration with a durable, low-maintenance design.
