Product Description

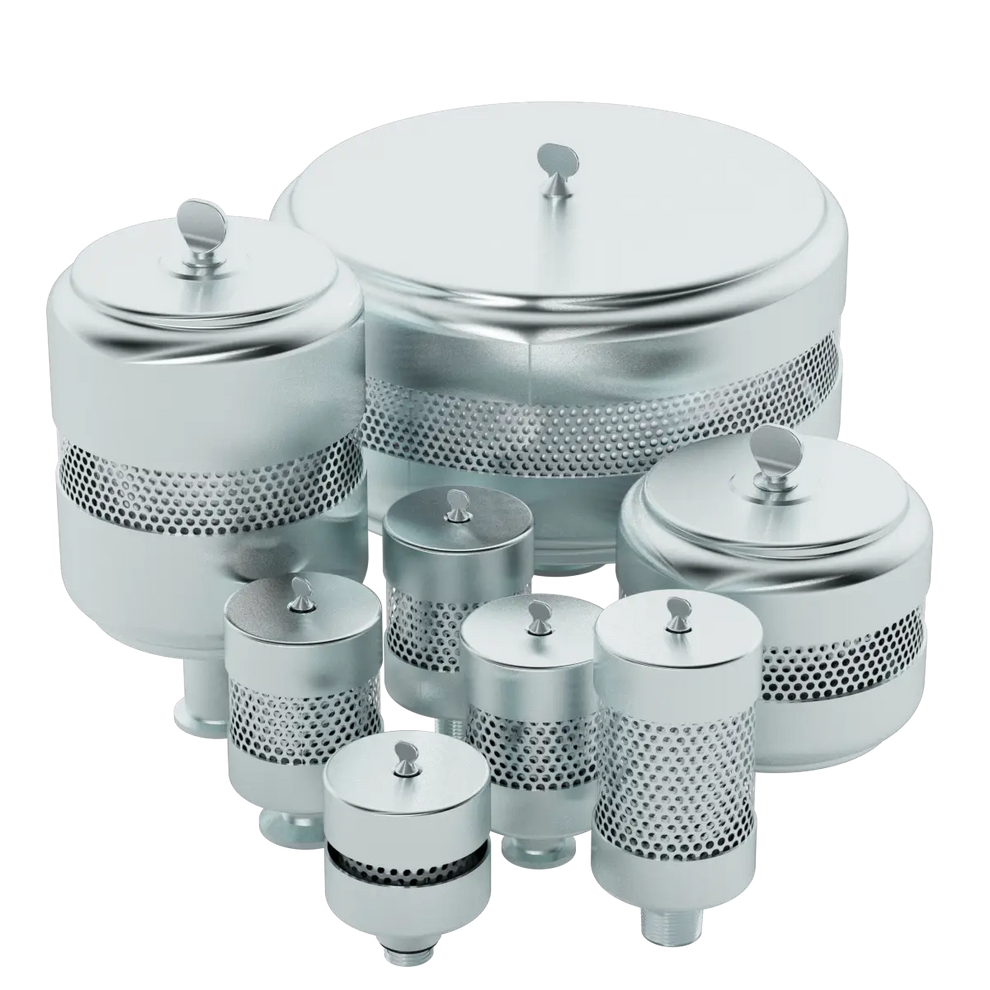

Solberg EFDB-FG9-103 Oil Mist Discharge Filter
The Solberg EFDB-FG9-103 is a high-efficiency oil mist discharge filter with an integrated drain-back design, engineered for oil-sealed vacuum pumps and industrial exhaust systems. It captures fine oil fog, mist, and aerosol particles from exhaust streams while returning separated oil back to the pump for improved efficiency and reduced waste.
This model features a durable steel housing with a nickel-plated corrosion-resistant finish and a compact inline configuration. The internal drain-back system helps prevent oil blowback and ensures cleaner operation, making it ideal for continuous-duty industrial vacuum applications.
Key Features
- Integrated drain-back system returns captured oil to the pump
- Prevents oil blowback with internal auto-sealing design
- 1" 1-20 UNEF threaded inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency for oil mist removal
- Seamless drawn steel housing construction
- Nickel-plated corrosion-resistant finish
- Easy element replacement with thumb-screw access
- Designed for vertical mounting and proper drainage
- Low pressure drop for stable vacuum performance
Specifications
- Model: EFDB-FG9-103
- Series: EFDB Oil Mist Discharge Filter Series
- Connection Size: 1" (1-20 UNEF)
- Flow Capacity: ~16 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Steel (nickel-plated finish)
- Approximate Weight: ~2.3–2.5 lbs
- Replacement Element: FG9
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum and process systems
- Vacuum coating and freeze drying equipment
- Semiconductor and electronics manufacturing
- Refrigeration and HVAC evacuation systems
- Leak detection and laboratory vacuum systems
- General industrial oil mist recovery applications
Benefits
- Improves air quality by reducing oil mist emissions
- Recovers oil and reduces operating waste
- Prevents oil blowback into the system
- Enhances vacuum pump efficiency and reliability
The EFDB-FG9-103 is designed for demanding vacuum applications requiring efficient oil mist separation with the added advantage of an integrated drain-back recovery system for cleaner and more efficient operation.
