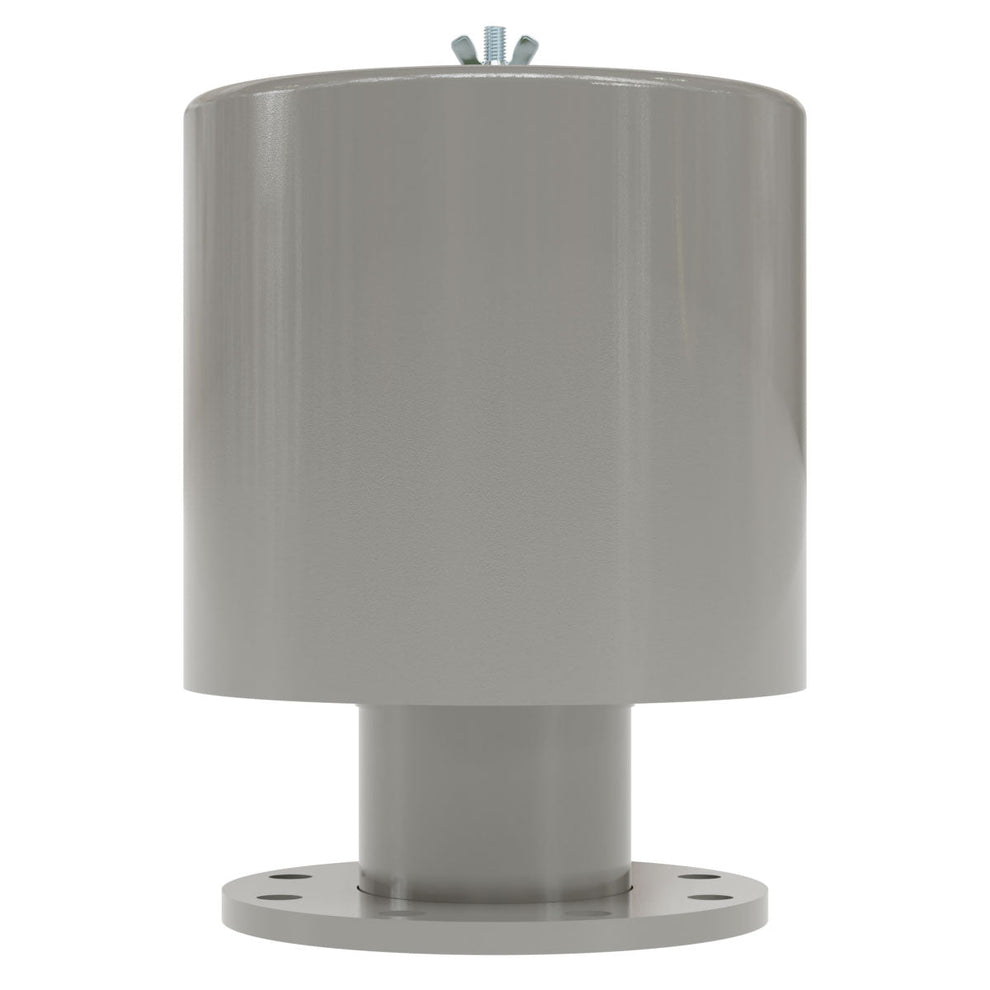

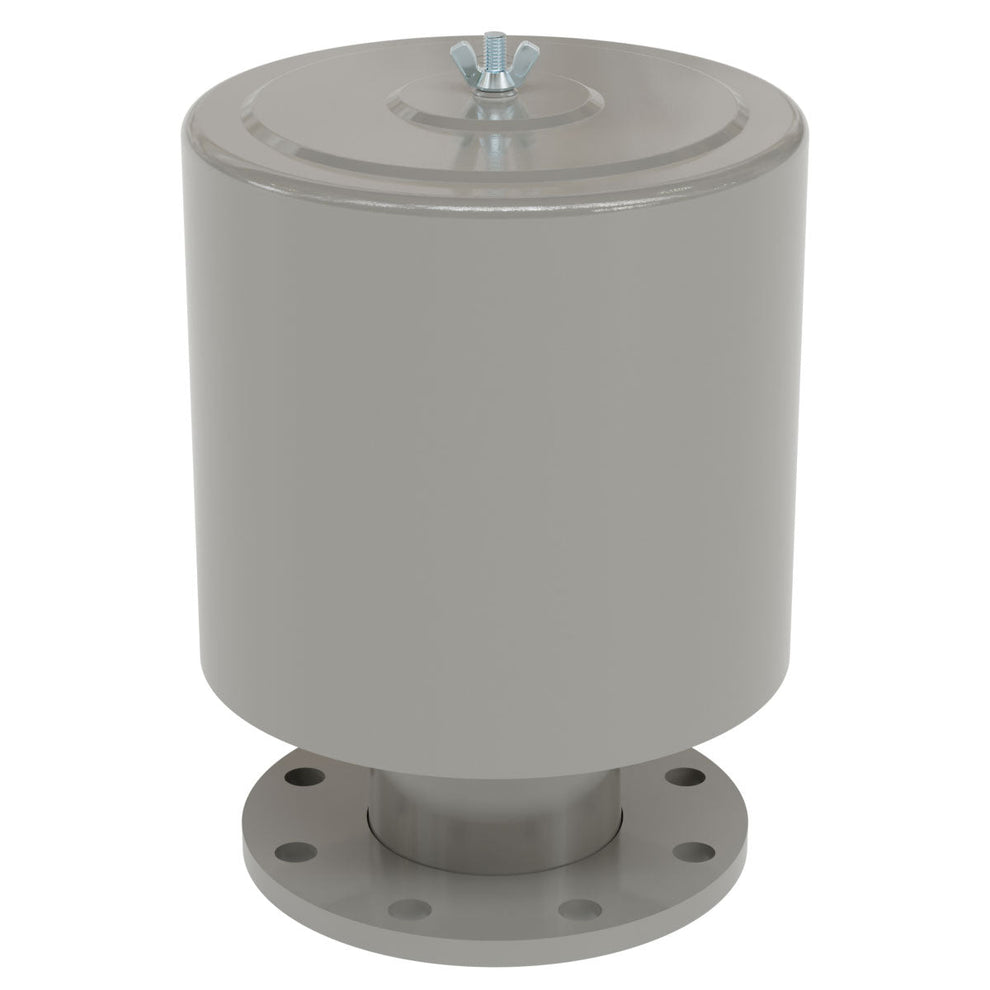

Solberg F-235P-400F Inlet Filter Silencer, 4" Flange Connection, 520 CFM, 5 Micron Polyester Element

Product Description

The Solberg F-235P-400F Inlet Filter Silencer is engineered for industrial compressors, PD blowers, fans, and pneumatic conveying systems requiring efficient intake filtration and advanced noise reduction. Featuring a rugged carbon steel housing with a fully drawn weatherhood and flanged connection design, this filter silencer provides dependable performance in demanding industrial applications.

• Model: F-235P-400F
• Connection Size: 4" Flange
• Maximum Flow Rate: 520 CFM
• Element Flow Rating: 570 CFM
• Filter Rating: 5 Micron
• Filtration Efficiency: 99%+
• Filter Media: Polyester
• Housing Material: Carbon Steel with Gray Powder Coat Finish
• Design: Weatherhood Inlet Filter Silencer
• Connection Style: Flanged
• Outside Diameter: 16 Inches
• Overall Height: 14 Inches
• Approximate Weight: 33 lbs
• Operating Temperature: -15°F to 220°F
• Filter Change Differential: 15-20" H?O over initial pressure drop
• Applications: Compressors, PD Blowers, Side Channel Blowers, Pneumatic Conveying Systems, Waste Water Aeration, Industrial Equipment

The low-pressure-drop outlet design helps maximize airflow efficiency while minimizing intake restriction and operating noise. The removable weatherhood allows easy filter maintenance and replacement, making this unit ideal for industrial and severe-duty environments.
