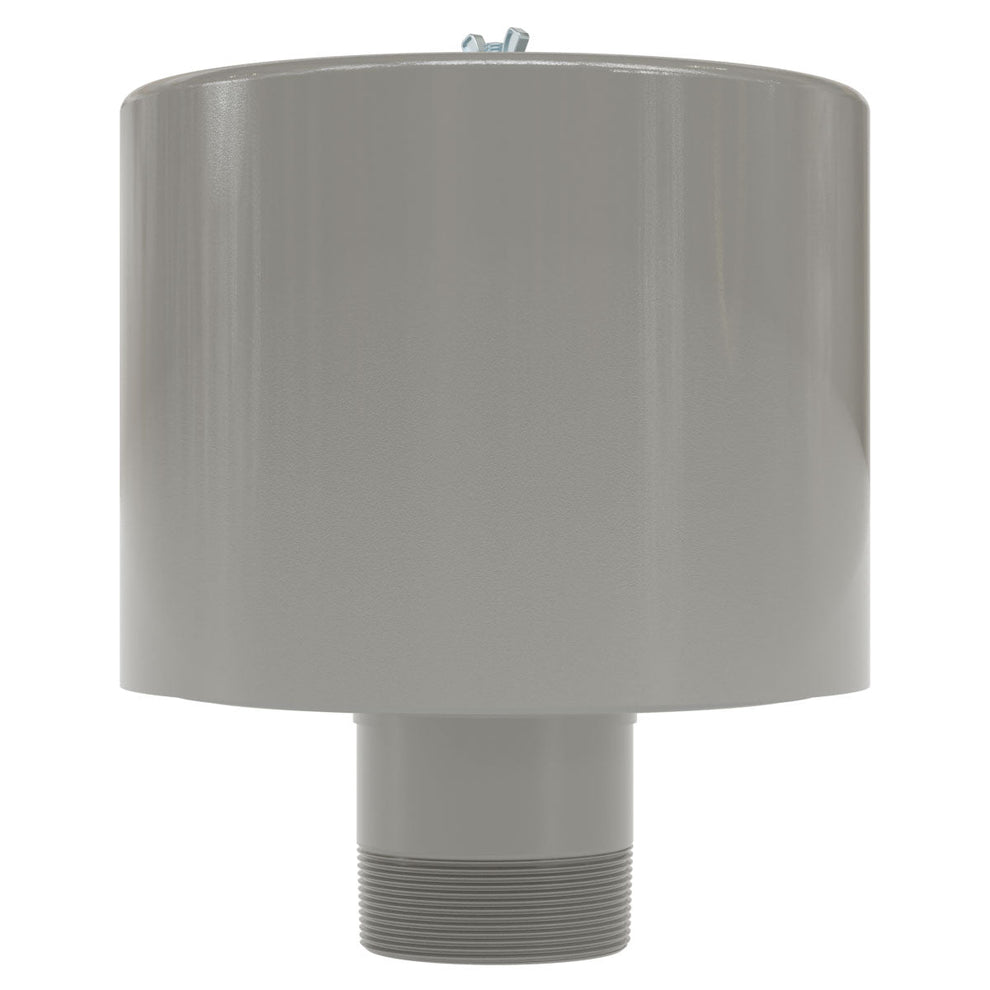

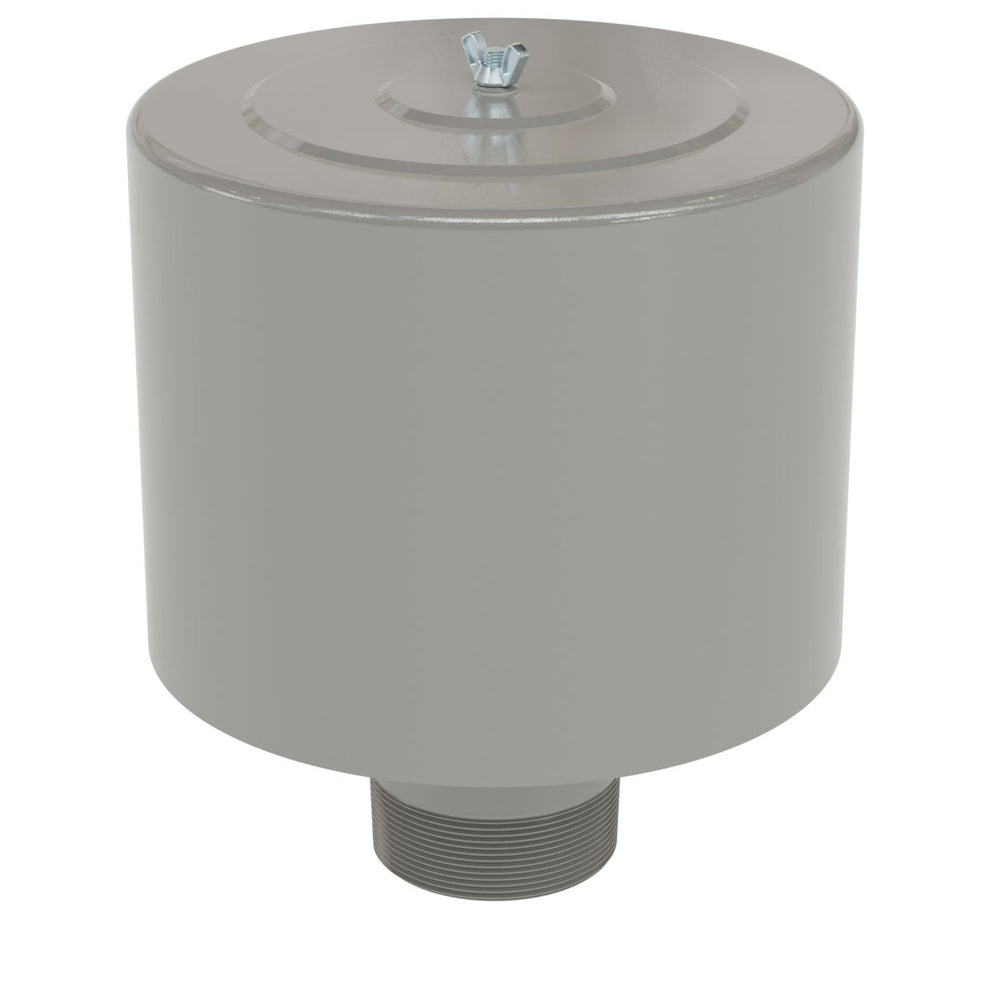

Solberg F-245P-500 Inlet Filter Silencer, 5" MNPT, 850 CFM, 5 Micron Polyester Element

Product Description

The Solberg F-245P-500 Inlet Filter Silencer is designed for heavy-duty industrial compressors, blowers, fans, and pneumatic conveying systems requiring high-capacity intake filtration and advanced silencing performance. Constructed with a corrosion-resistant carbon steel housing and fully drawn weatherhood, this filter silencer delivers reliable protection in severe-duty industrial environments.

• Model: F-245P-500
• Connection Size: 5" MNPT
• Maximum Flow Rate: 850 CFM
• Filter Rating: 5 Micron
• Filtration Efficiency: 99%+
• Filter Media: Polyester
• Housing Material: Carbon Steel with Gray Powder Coat Finish
• Design: Weatherhood Inlet Filter Silencer
• Connection Style: Threaded / Screw-On
• Operating Temperature: -15°F to 220°F
• Filter Change Differential: 15-20" H?O over initial pressure drop
• Applications: Compressors, PD Blowers, Side Channel Blowers, Pneumatic Conveying Systems, Waste Water Aeration, Industrial Equipment
• Features: Low Pressure Drop Outlet Pipe, Heavy Gauge Base, Advanced Silencing Technology, Fully Drawn Weatherhood

The low-restriction airflow design helps maximize system efficiency while minimizing intake noise and protecting equipment from airborne contaminants. Ideal for industrial and severe-duty applications requiring dependable filtration and long service life.
