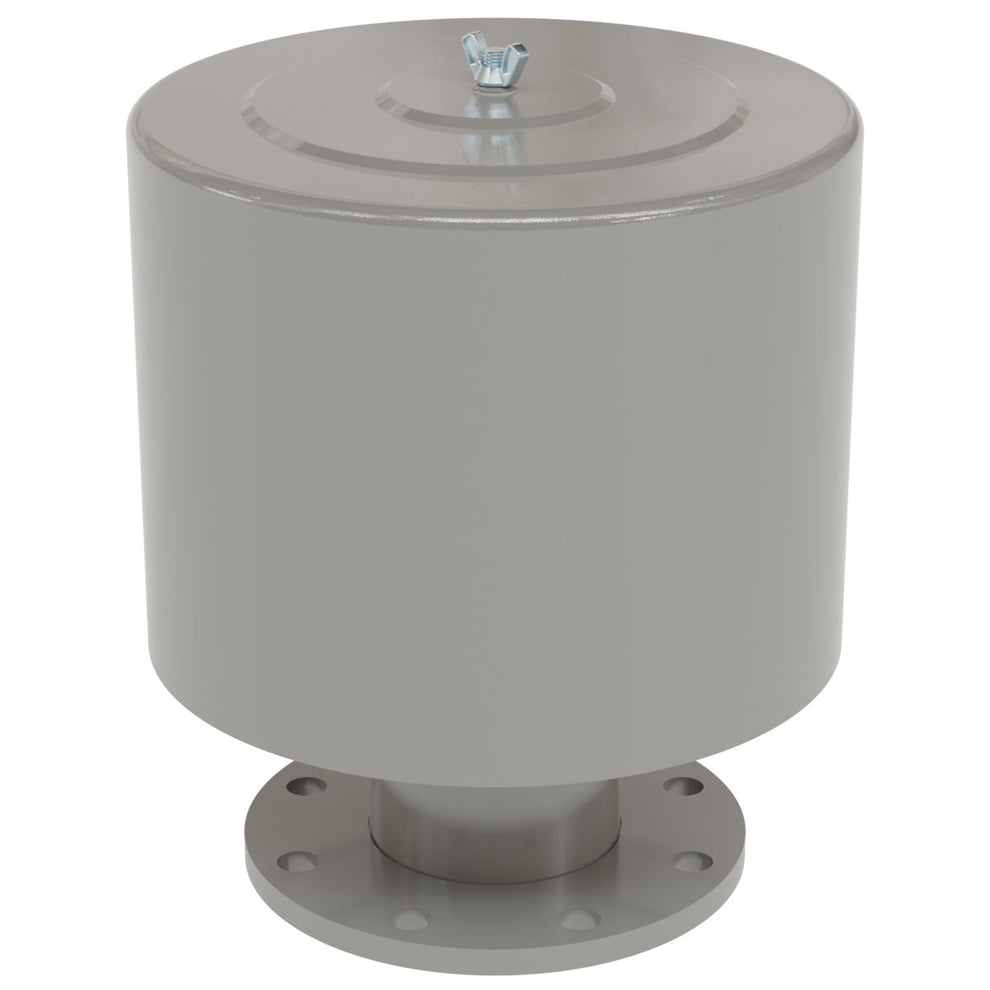

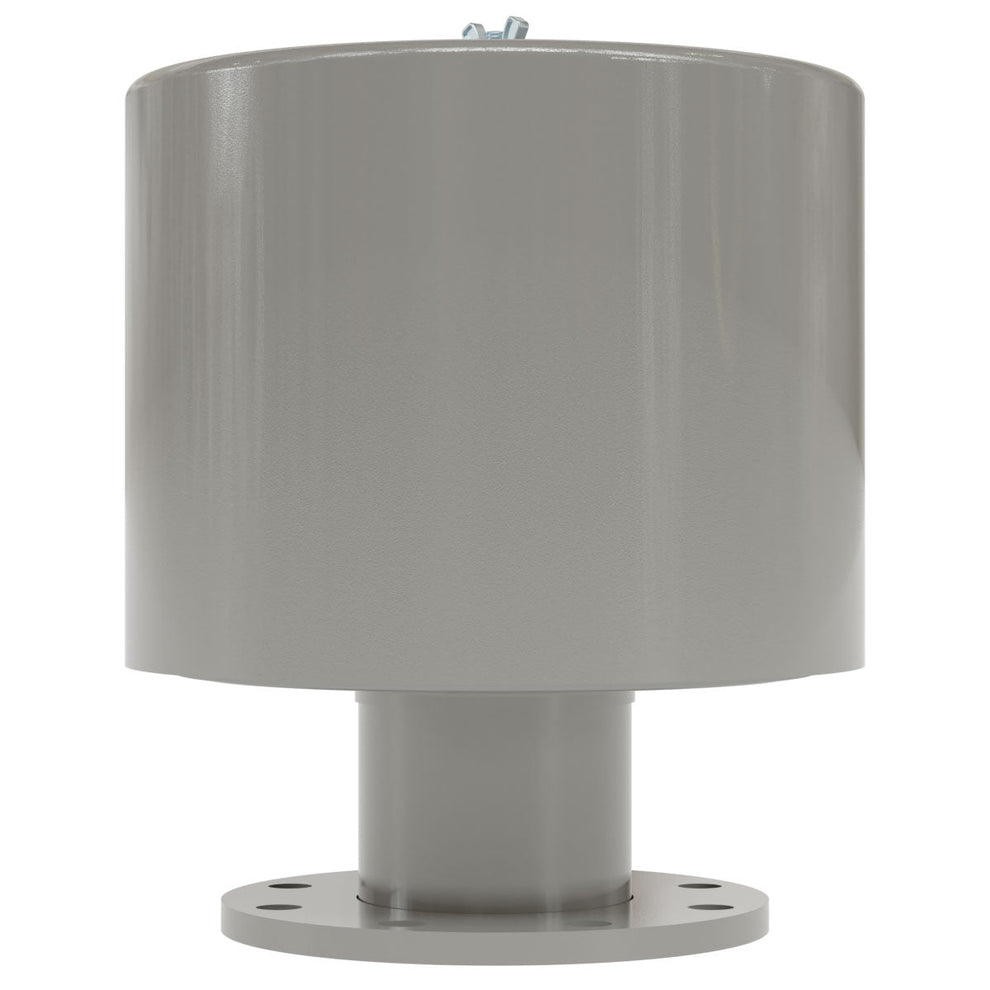

Solberg F-245P-500F Inlet Filter Silencer, 5" Flange Connection, 850 CFM, 5 Micron Polyester Element

Product Description

The Solberg F-245P-500F Inlet Filter Silencer is engineered for heavy-duty industrial compressors, PD blowers, vacuum systems, and pneumatic conveying applications requiring high-capacity airflow, efficient intake filtration, and advanced sound attenuation. Featuring a rugged carbon steel housing with a fully drawn weatherhood and flanged connection design, this filter silencer delivers dependable performance in severe-duty industrial environments.

• Model: F-245P-500F
• Connection Size: 5" Flange
• Maximum Flow Rate: 850 CFM
• Filter Rating: 5 Micron
• Filtration Efficiency: 99%+
• Filter Media: Polyester
• Housing Material: Carbon Steel with Gray Powder Coat Finish
• Design: Weatherhood Inlet Filter Silencer
• Connection Style: Flanged
• Operating Temperature Range: -15°F to 220°F
• Filter Change Differential: 15-20" H?O over initial pressure drop
• Construction: Heavy Gauge Base with Low Pressure Drop Outlet Pipe
• Applications: Compressors, PD Blowers, Side Channel Blowers, Pneumatic Conveying Systems, Waste Water Aeration, Ash Handling, Industrial Equipment

The low-restriction airflow design helps maximize system efficiency while reducing intake noise and protecting equipment from airborne contaminants. The removable weatherhood allows quick filter access for simplified maintenance and extended service life in demanding industrial applications.
