Solberg FS-274P-400F Inlet Filter Silencer with Weatherhood, 4" ANSI Flange Connection, Paper Filter Element, 520 SCFM, 2 Micron

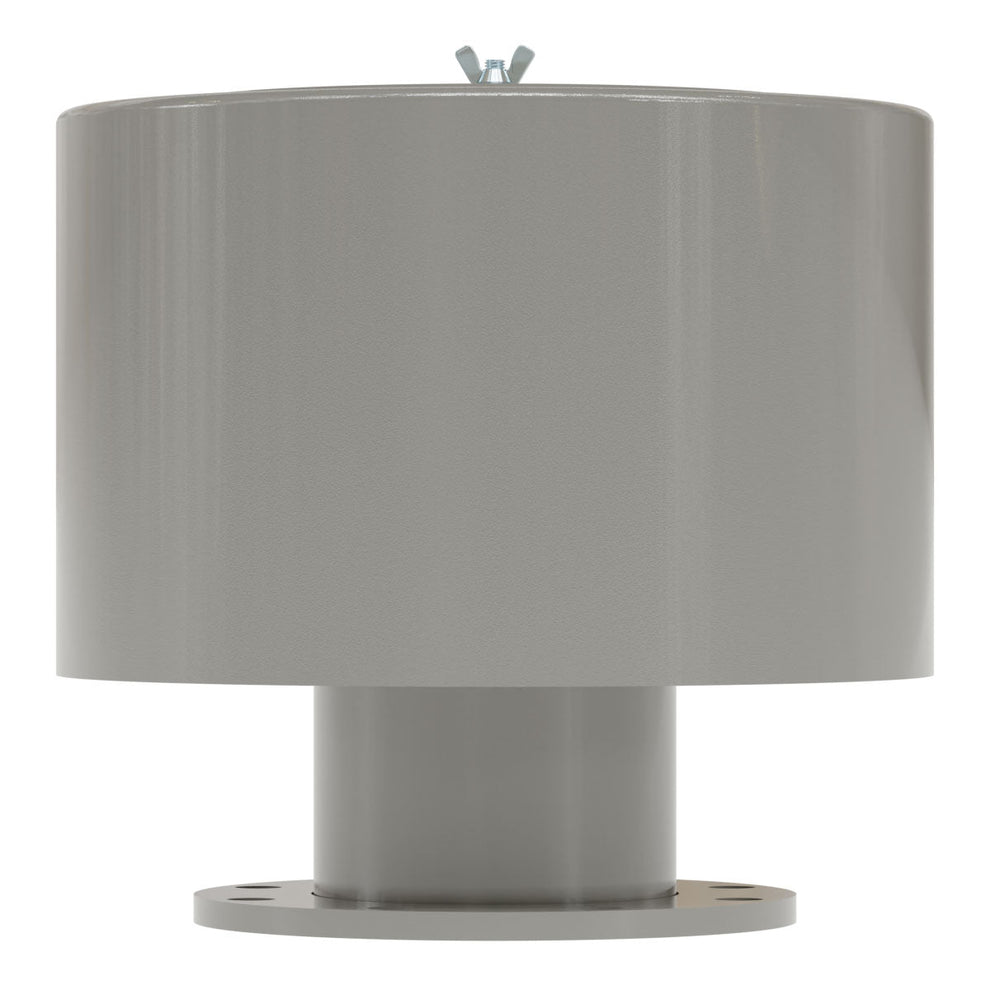

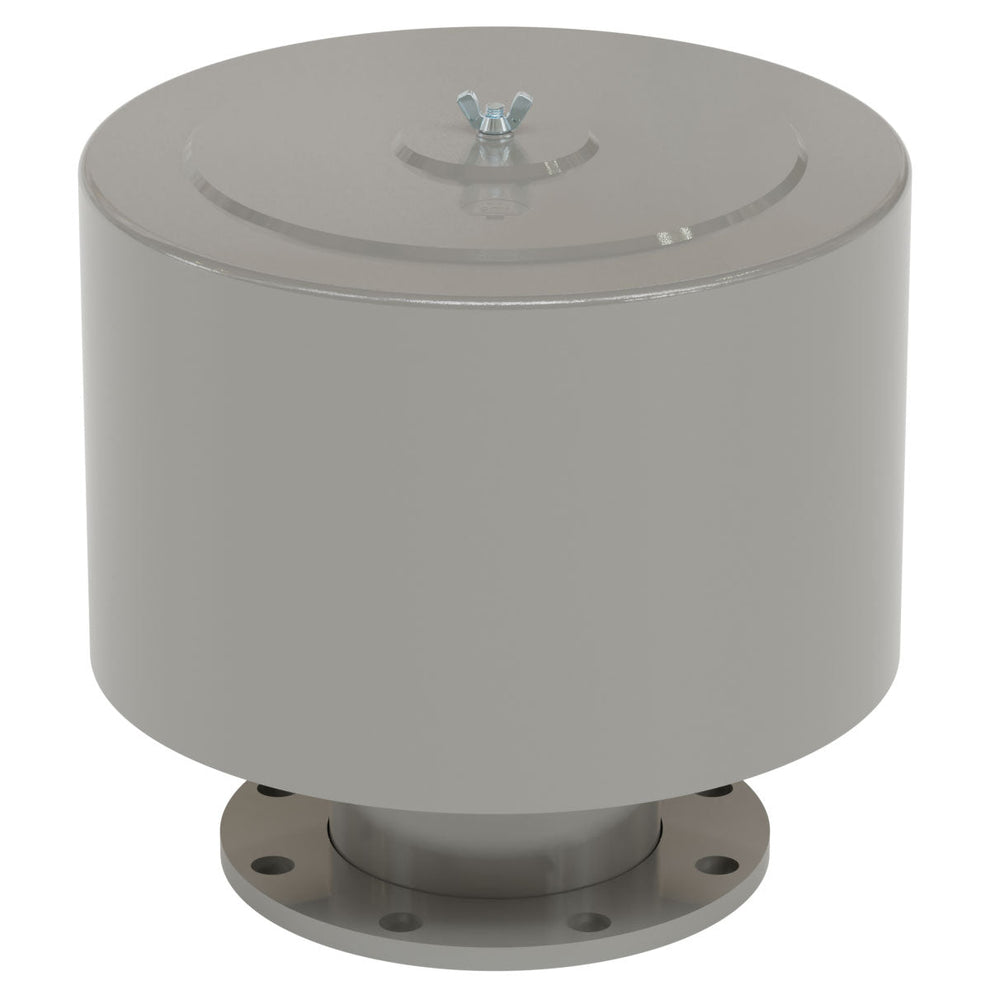

Solberg FS-274P-400F Inlet Filter Silencer

The Solberg FS-274P-400F Filter Silencer is a rugged industrial air intake filtration solution designed for blowers, compressors, fans, and pneumatic conveying systems. Combining advanced tubular silencing technology with a high-efficiency paper filter element, this unit provides superior equipment protection while reducing intake noise in demanding industrial environments.

Key Features

• High-efficiency paper filter element with 99%+ filtration efficiency at 2 microns
• Integrated tubular silencing design reduces intake noise while maintaining optimal airflow
• Fully drawn weatherhood protects the filter element from rain, debris, and harsh outdoor conditions
• Heavy-duty carbon steel housing with corrosion-resistant gray powder-coated finish
• Low pressure drop airflow design improves system performance and efficiency
• Removable weatherhood allows quick and easy filter maintenance
• Designed for continuous-duty industrial blower and compressor applications
• Suitable for indoor and outdoor installations

Specifications

• Model: FS-274P-400F
• Series: FS Series
• Connection Size: 4 Inch
• Connection Type: ANSI Flange Pattern
• Filter Media: Paper Element
• Micron Rating: 2 Micron
• Filtration Efficiency: 99%+
• Maximum Flow Capacity: 520 SCFM
• Element Flow Rating: 1100 CFM
• Housing Material: Carbon Steel
• Finish: Gray Powder-Coated
• Overall Height: 14 Inches
• Outside Diameter: 16 Inches
• Approximate Weight: 41 lbs
• Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
• Typical Noise Attenuation: Approximately 15 dB

Applications

• Industrial Blowers
• Rotary Screw Compressors
• Piston Compressors
• Pneumatic Conveying Systems
• Waste Water Aeration
• Hydraulic Breathers
• Workshop Equipment
• Dock Controls
• Envelope Manufacturing
• Industrial & Severe Duty Applications

Benefits

• Protects critical equipment from airborne contaminants and debris
• Reduces intake noise for quieter operating environments
• Improves airflow efficiency with low restriction silencing technology
• Weather-protected construction ensures long-lasting durability
• Easy maintenance design minimizes downtime and servicing costs

The Solberg FS-274P-400F combines efficient intake filtration, sound attenuation, and durable industrial construction into one compact assembly, making it an ideal solution for blower and compressor intake applications in harsh operating environments.
