Product Description

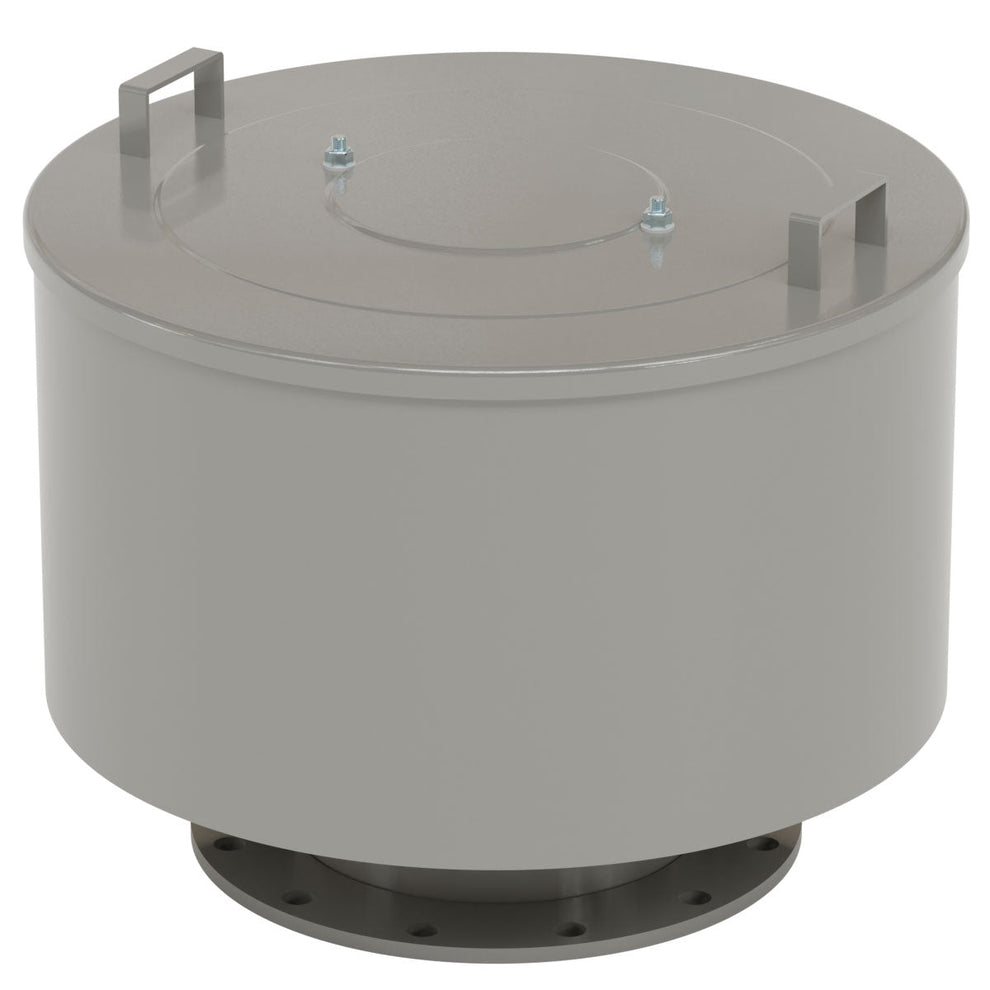

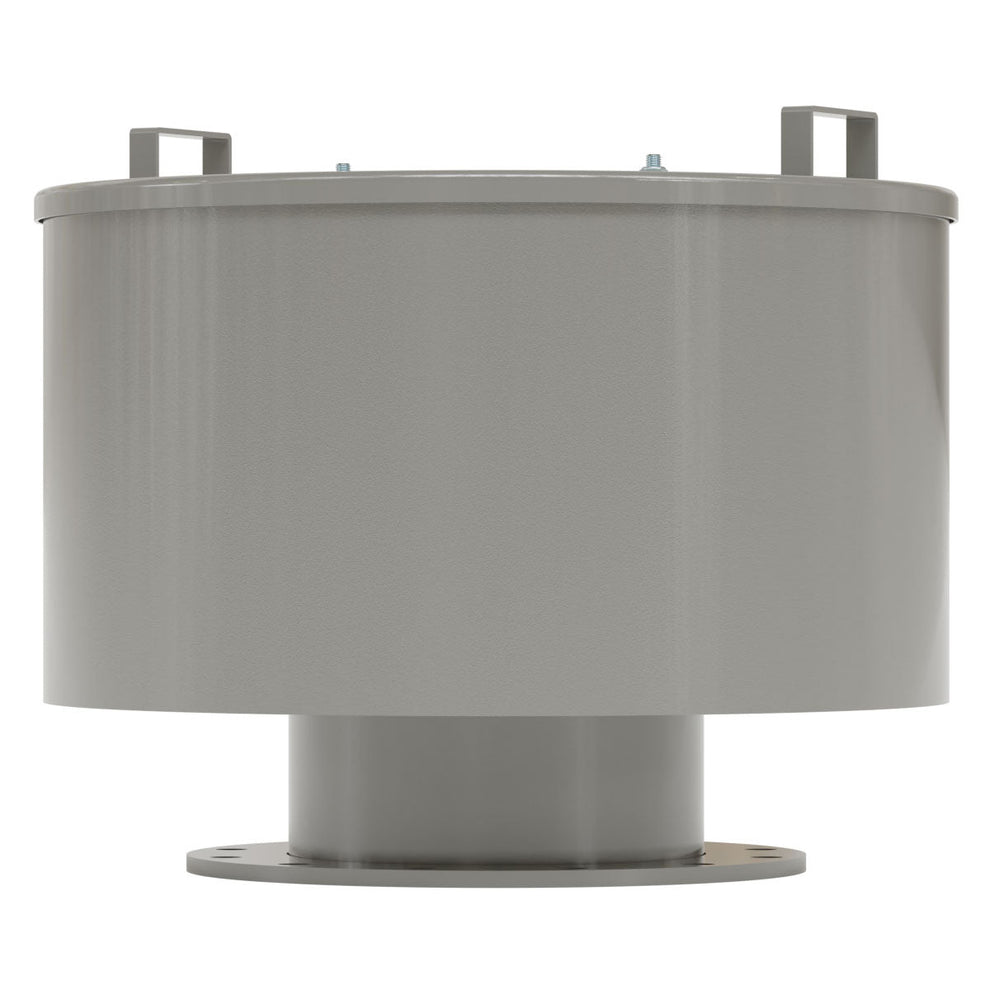

Solberg FS-384P-1000F Inlet Filter Silencer
The Solberg FS-384P-1000F Filter Silencer is a high-capacity industrial air intake filtration and sound attenuation solution designed for blowers, compressors, vacuum pumps, and pneumatic conveying systems. Engineered with advanced tubular silencing technology and a high-efficiency paper filter element, this rugged assembly delivers reliable equipment protection while significantly reducing intake noise in severe-duty industrial environments.
Key Features
- High-efficiency paper filter media with 99%+ filtration efficiency at 2 microns
- Integrated tubular silencing technology helps reduce intake noise by approximately 15 dB
- Heavy-duty carbon steel construction with corrosion-resistant gray powder-coated finish
- Fully drawn weatherhood protects the filter element from rain, debris, and harsh outdoor conditions
- Low pressure drop airflow design improves system efficiency and minimizes restriction
- Large-capacity filter element supports demanding high airflow industrial applications
- Removable weatherhood allows quick and easy filter servicing
- Designed for continuous-duty industrial and severe-environment applications
Specifications
- Model: FS-384P-1000F
- Series: FS Series
- Connection Size: 10 Inch
- Connection Type: ANSI Flange Pattern
- Filter Media: Paper Element
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Capacity: 2600 SCFM
- Element Flow Rating: 2600 CFM
- Housing Material: Carbon Steel
- Finish: Gray Powder-Coated
- Overall Dimensions: Approximately 24 Inch OD x 25 Inch Height
- Approximate Weight: 125 lbs
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Recommended Filter Change-Out: 10-15 in. H2O above initial pressure drop
Applications
- Industrial Blowers
- Rotary Screw Compressors
- Piston Compressors
- Vacuum Pumps
- Pneumatic Conveying Systems
- Waste Water Aeration
- Ash Handling Systems
- Bulk Material Transfer Systems
- Power Generation Facilities
- Industrial & Severe Duty Applications
Benefits
- Protects critical equipment from airborne contaminants and debris
- Reduces intake noise for quieter industrial operation
- Optimized airflow design minimizes restriction and improves efficiency
- Weather-resistant construction enhances durability in harsh environments
- Heavy-duty design supports demanding high-flow industrial systems
- Easy maintenance design helps reduce downtime and servicing costs
The Solberg FS-384P-1000F combines efficient intake filtration, advanced sound attenuation, and rugged industrial durability into one compact assembly, making it an ideal solution for demanding high-flow blower and compressor intake applications.
