Solberg FS-484P-2-1400F Dual Inlet Filter Silencer with Weatherhood, Dual 14" ANSI Flange Connections, Paper Filter Elements, 6000 SCFM, 2 Micron

Product Description

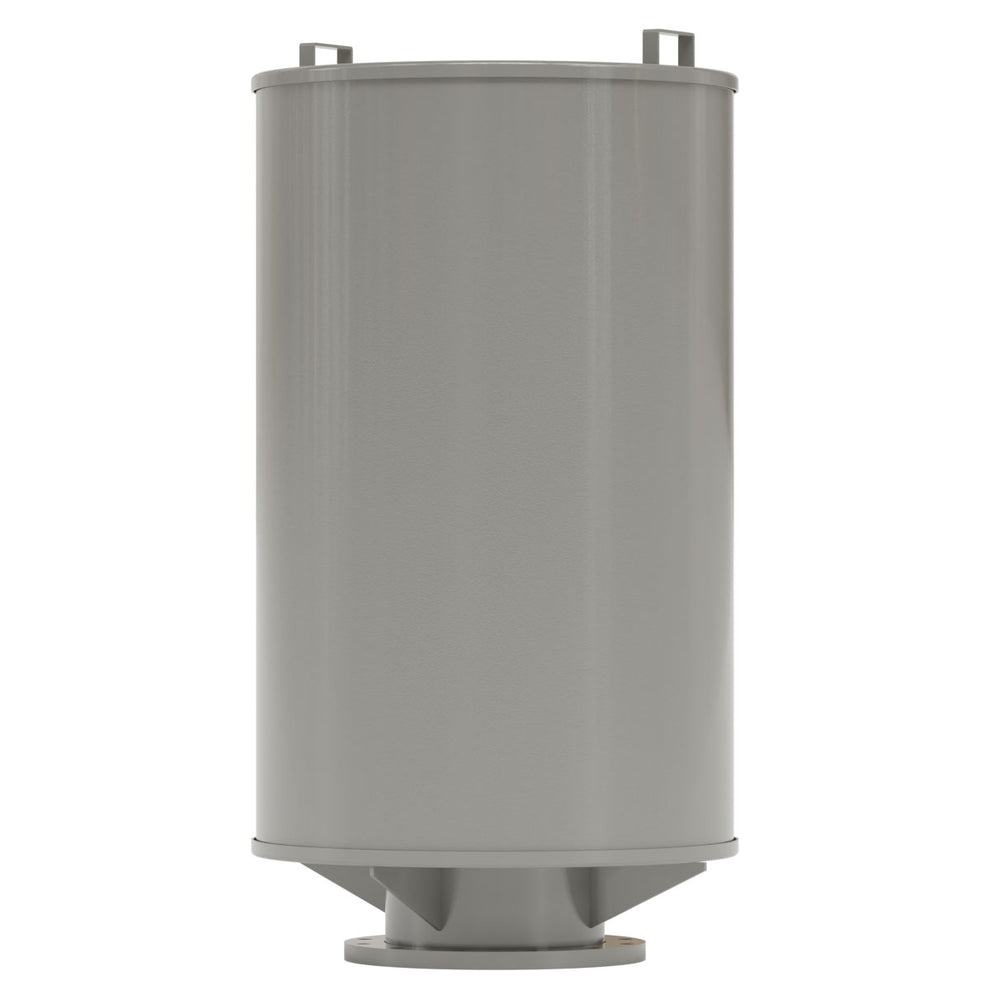

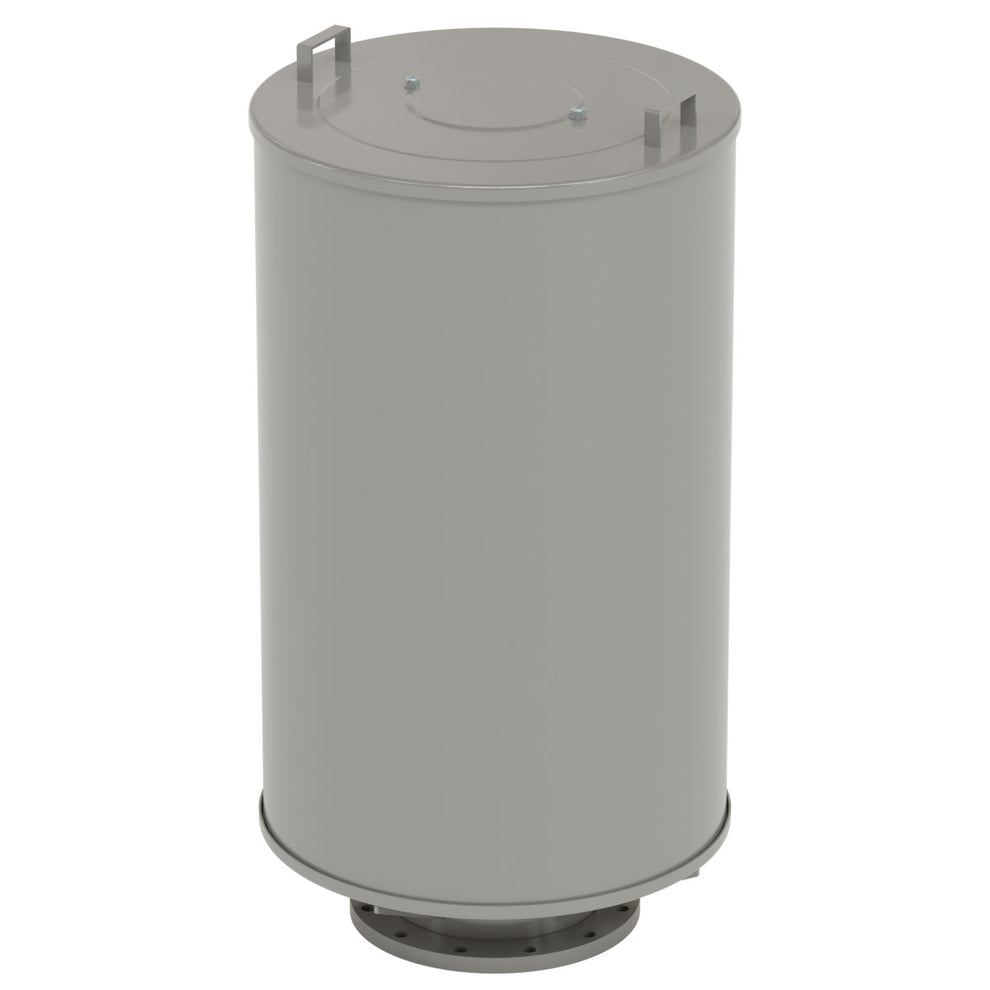

Solberg FS-484P-2-1400F Dual Inlet Filter Silencer

The Solberg FS-484P-2-1400F Filter Silencer is a high-capacity dual inlet industrial air intake filtration and sound attenuation solution engineered for large blowers, compressors, vacuum systems, and pneumatic conveying applications. Featuring dual high-efficiency paper filter elements and advanced tubular silencing technology, this heavy-duty assembly delivers maximum airflow performance while reducing intake noise and protecting critical equipment from airborne contaminants in severe-duty industrial environments.

Key Features

• Dual high-efficiency paper filter elements with 99%+ filtration efficiency at 2 microns
• Advanced tubular silencing technology helps reduce intake noise by approximately 15 dB
• Dual inlet configuration designed for ultra-high airflow industrial systems
• Heavy-duty carbon steel housing with corrosion-resistant gray powder-coated finish
• Fully drawn weatherhood protects filter elements from rain, dirt, and outdoor contaminants
• Low pressure drop airflow design improves efficiency and minimizes restriction
• Large-capacity filter assembly designed for continuous-duty industrial applications
• Removable weatherhood and serviceable filter elements simplify maintenance procedures

Specifications

• Model: FS-484P-2-1400F
• Series: FS Series
• Connection Size: Dual 14 Inch
• Connection Type: ANSI Flange Pattern
• Filter Media: Paper Elements
• Micron Rating: 2 Micron
• Filtration Efficiency: 99%+
• Maximum Flow Capacity: 6000 SCFM
• Element Flow Rating: Up to 9410 CFM
• Housing Material: Carbon Steel
• Finish: Gray Powder-Coated
• Overall Dimensions: Approximately 28.5 Inch OD x 53 Inch Height
• Approximate Weight: 245 lbs
• Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
• Recommended Filter Change-Out: 10-15 in. H2O above initial pressure drop

Applications

• High Capacity Industrial Blowers
• Rotary Screw Compressors
• Vacuum Pumps
• Pneumatic Conveying Systems
• Waste Water Aeration Systems
• Bulk Material Transfer Systems
• Power Generation Facilities
• Cement Plants
• Mining Operations
• Industrial & Severe Duty Applications

Benefits

• Protects critical equipment from airborne contaminants and debris
• Reduces intake noise for quieter industrial operation
• Dual inlet design supports demanding ultra-high airflow systems
• Optimized airflow design minimizes restriction and improves efficiency
• Weather-resistant construction enhances durability in harsh environments
• Heavy-duty industrial construction ensures long service life
• Easy maintenance access helps reduce downtime and servicing costs

The Solberg FS-484P-2-1400F combines efficient intake filtration, advanced sound attenuation, and rugged industrial durability into a high-capacity dual inlet assembly, making it an ideal solution for demanding blower and compressor intake applications requiring maximum airflow performance.
