Product Description
Ultra Extreme Industrial Filtration with Maximum Airflow Capacity & Advanced Noise Reduction

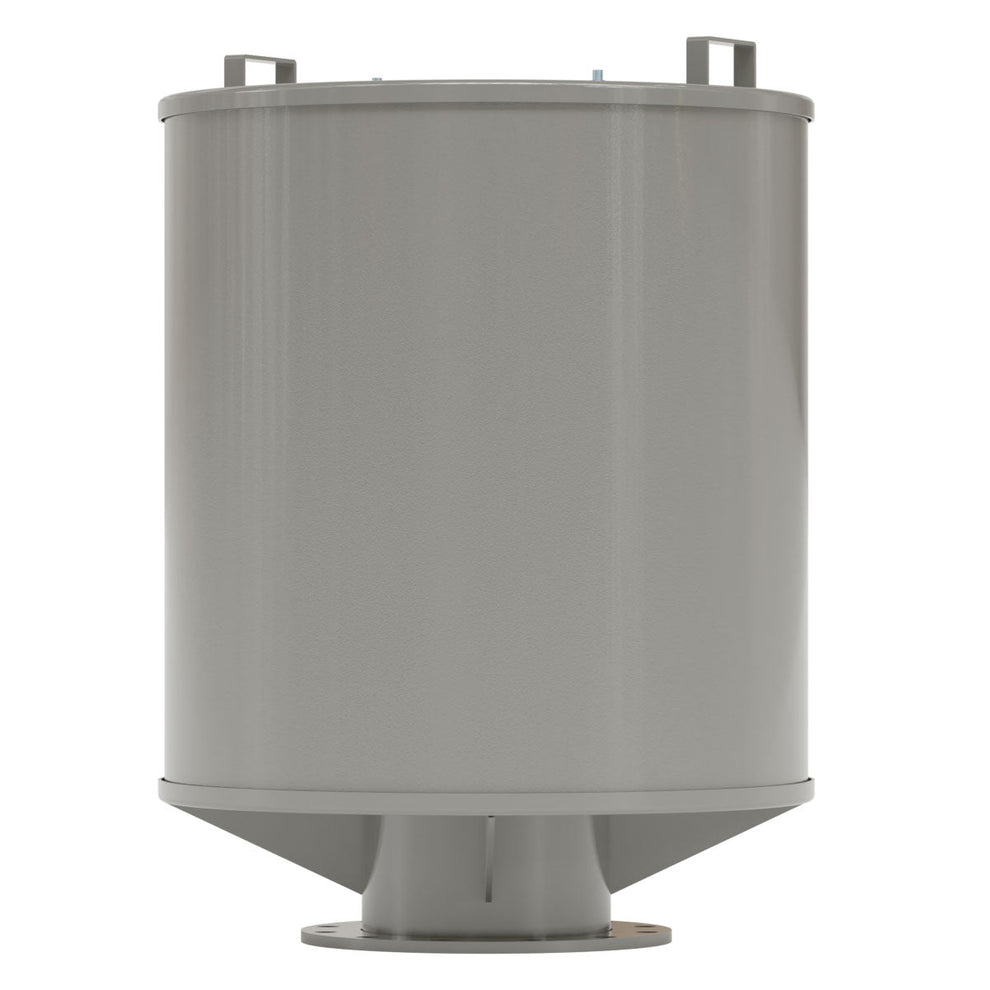

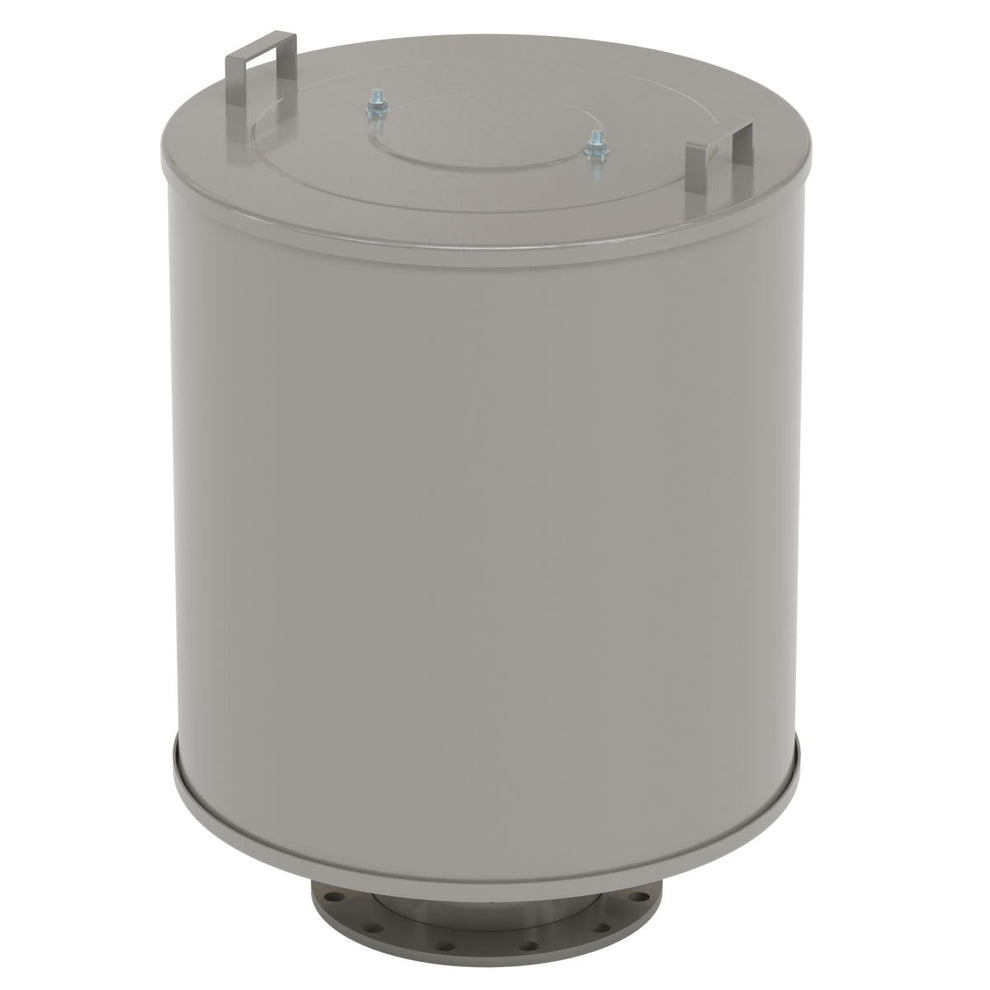

The Solberg FS-685P-1200F Air Inlet Filter Silencer is designed for the most extreme industrial applications requiring ultra-high airflow, superior filtration, and effective intake noise reduction. Featuring an oversized 685P housing, a heavy-duty 12" flanged connection, integrated weatherhood, and advanced tubular silencing technology, this unit ensures optimal performance with minimal pressure drop in continuous heavy-duty environments.
Key Features:
- High-efficiency polyester filter media with 99% filtration efficiency
- 5-micron filtration rating for fine particle removal
- Large 12" flanged (FLG) connection for heavy-duty industrial systems
- Fully integrated weatherhood protects against dust, debris, and moisture
- Extra-large 685P housing for maximum dirt-holding capacity and extended service intervals
- Advanced tubular silencing reduces intake noise while maintaining ultra-high airflow
- Low pressure drop design improves system efficiency
- Heavy-duty carbon steel construction with corrosion-resistant powder coating
- Replaceable filter element for cost-effective maintenance
Specifications:
- Model: FS-685P-1200F
- Connection Type: 12" Flanged (FLG)
- Flow Rate: Up to 7200 CFM
- Filter Media: Polyester
- Micron Rating: 5 µm
- Efficiency: 99%
- Material: Carbon Steel
- Finish: Corrosion-Resistant Gray Powder-Coated
- Operating Temperature: -15°F to 220°F
- Dimensions: Approx. 34" Diameter x 36–40" Height
- Weight: Approx. 220–280 lbs
- Noise Reduction: Up to 15 dB
Applications:
- Large industrial air compressors
- High-capacity blowers (PD & centrifugal)
- Industrial vacuum systems
- Pneumatic conveying systems
- Cement plants and power generation facilities
- Wastewater aeration systems
- Extreme-duty continuous industrial environments
This filter silencer delivers ultra-maximum airflow capacity, the highest dirt-holding capability in the FS series, and effective noise attenuation. Its oversized 685P housing and large flanged connection make it ideal for the largest industrial systems requiring maximum efficiency, durability, and extended maintenance intervals.
