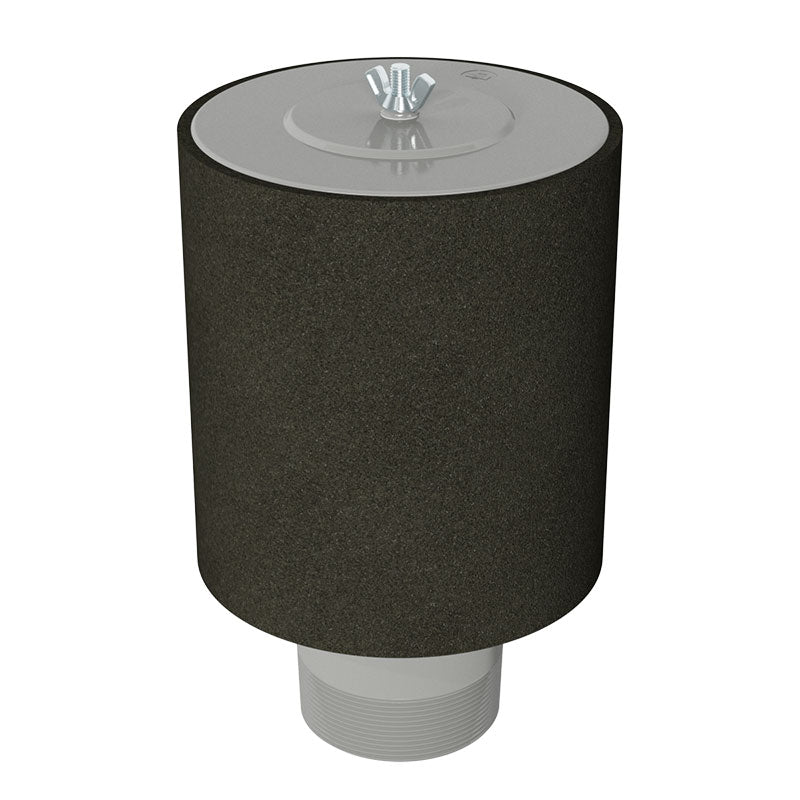

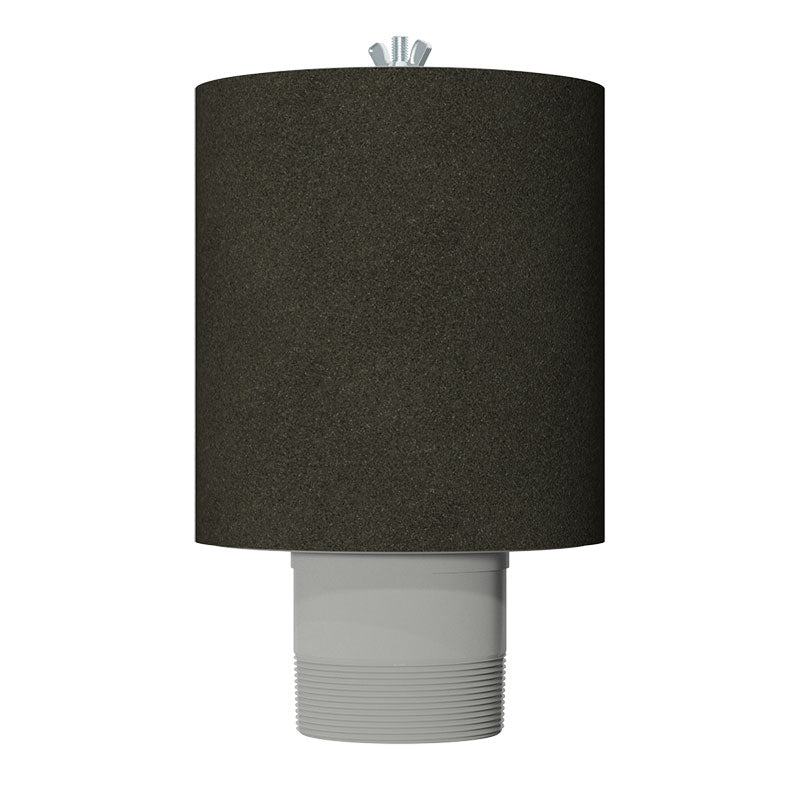

Solberg FT-235P-400 Exposed Intake Filter, 4" MNPT, 520 SCFM, 5 Micron Polyester Element

Product Description

The Solberg FT-235P-400 Exposed Intake Filter is engineered for industrial compressors, blowers, vacuum pumps, and pneumatic conveying systems requiring maximum airflow with minimal restriction. Featuring an exposed polyester filter element and rugged carbon steel construction, this intake filter provides high-efficiency particulate filtration while maintaining superior airflow performance in demanding industrial environments.

• Model: FT-235P-400
• Connection Size: 4" MNPT
• Maximum Flow Rate: 520 SCFM
• Element Flow Rating: 570 CFM
• Filter Rating: 5 Micron
• Filtration Efficiency: 99%+
• Filter Media: Polyester
• Housing Material: Carbon Steel with Gray Powder Coat Finish
• Design: Open / Exposed Intake Filter
• Connection Style: Threaded / Screw-On
• Outside Diameter: 14 Inches
• Overall Height: 14 Inches
• Nipple Length: 4 Inches
• Approximate Weight: 17 lbs
• Operating Temperature Range: -15°F to 220°F
• Replacement Element: 235P™
• Filter Change Differential: 15-20" H?O over initial pressure drop
• Applications: Compressors, PD Blowers, Side Channel Blowers, Pneumatic Conveying Systems, Ash Handling, Waste Water Aeration, Industrial Equipment

The exposed element design provides optimal airflow and low restriction for applications where sound attenuation is not required. The heavy-gauge base and low-pressure-drop outlet design help maximize airflow efficiency while extending equipment service life in industrial and severe-duty applications.
