Product Description

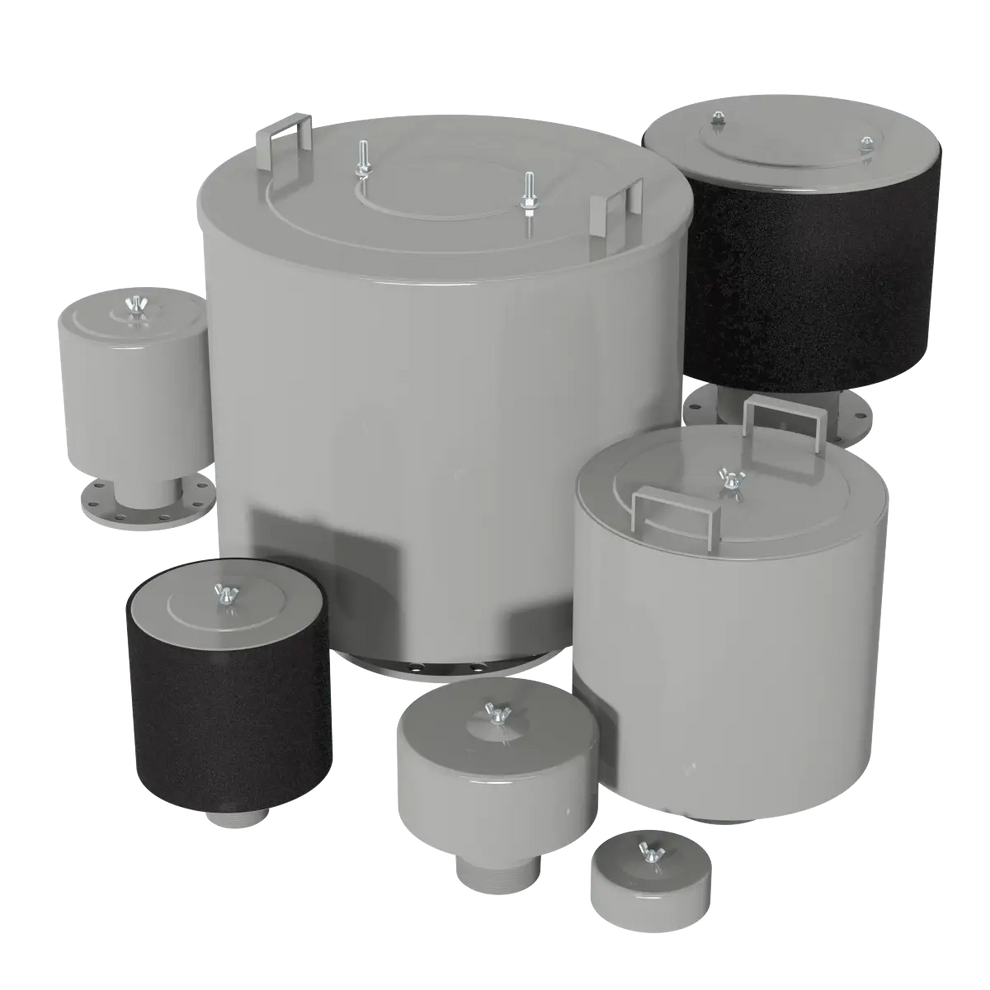

The Solberg FT-245P-500F is a high-performance exposed intake filter with weatherhood designed for industrial blowers, compressors, fans, and pneumatic conveying systems. Engineered for maximum airflow and low restriction, this FT Series filter provides reliable particulate filtration and dependable equipment protection in severe-duty environments.
This model features a 5" ANSI flange connection and a high-efficiency polyester filter element rated at 5 microns with 99%+ removal efficiency. The rugged carbon steel construction with corrosion-resistant gray powder coat finish ensures durability and long service life in demanding industrial applications.
Key Features
- Model: FT-245P-500F
- 5" ANSI flange connection
- Exposed element design with weatherhood protection
- Polyester filter media with 99%+ efficiency at 5 microns
- Heavy gauge carbon steel construction
- Corrosion-resistant gray powder coat finish
- Low restriction outlet pipe and center bracket design
- Continuous operating temperature: -15°F to 220°F (-26°C to 104°C)
- Pressure drop graphs available upon request
- Recommended filter replacement differential: 15-20" H2O above initial pressure drop
- Fully drawn weatherhood for outdoor and industrial protection
- Replacement filter element: 245P
Applications
- Positive displacement blowers
- Side channel blowers
- Piston compressors
- Screw compressors
- Pneumatic conveying systems
- Hydraulic breathers
- Waste water aeration systems
- Ash handling equipment
- Dock controls
- Envelope manufacturing
- Industrial workshops
- Construction and contractor equipment
- Industrial and severe-duty environments
The Solberg FT Series intake filters are engineered to deliver efficient airflow, dependable filtration performance, and long-lasting protection for critical industrial equipment operating in harsh environments.
