Product Description

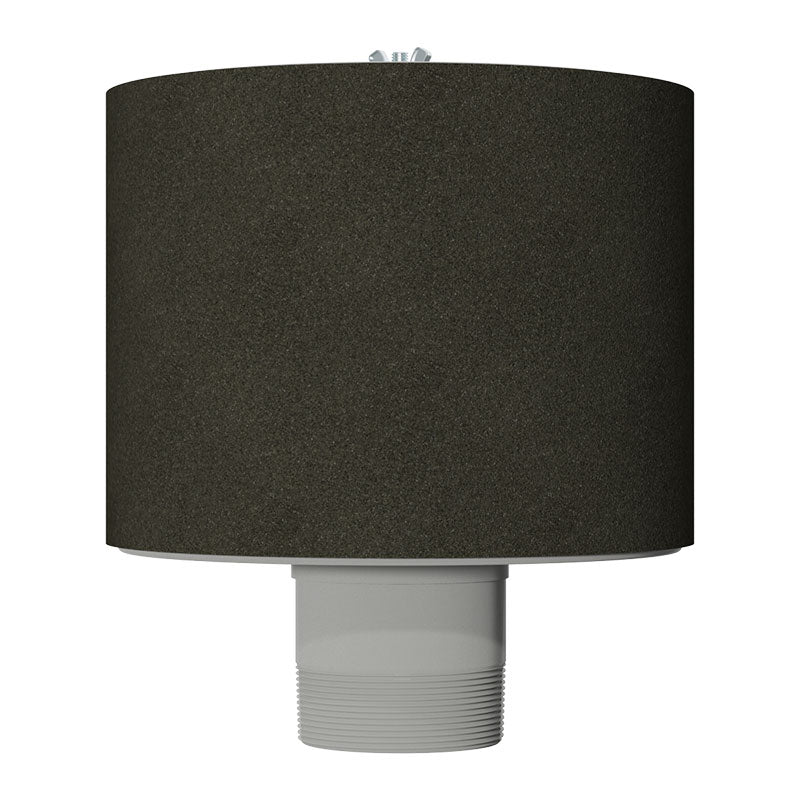

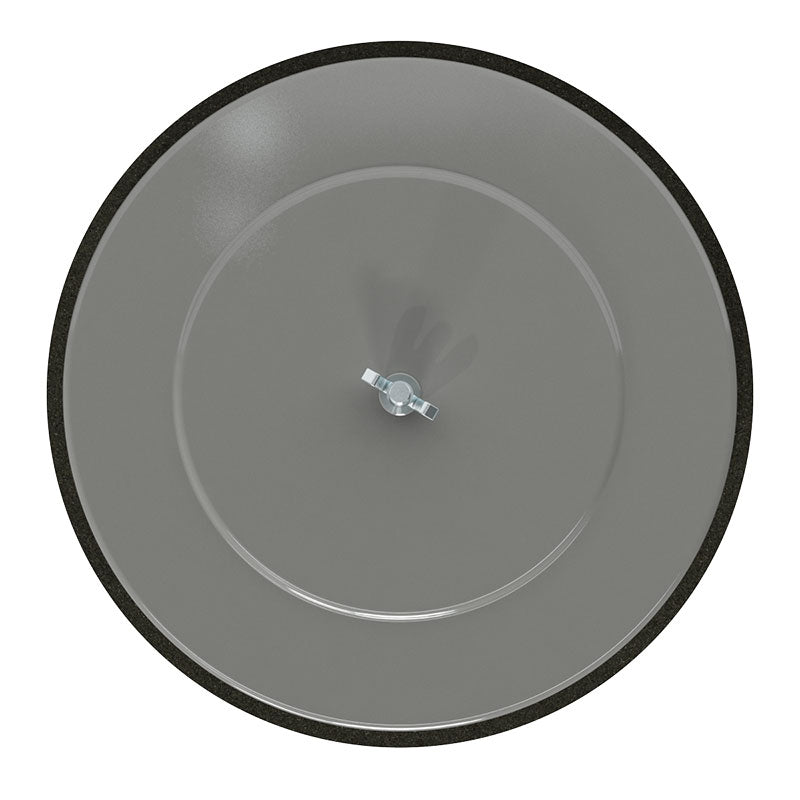

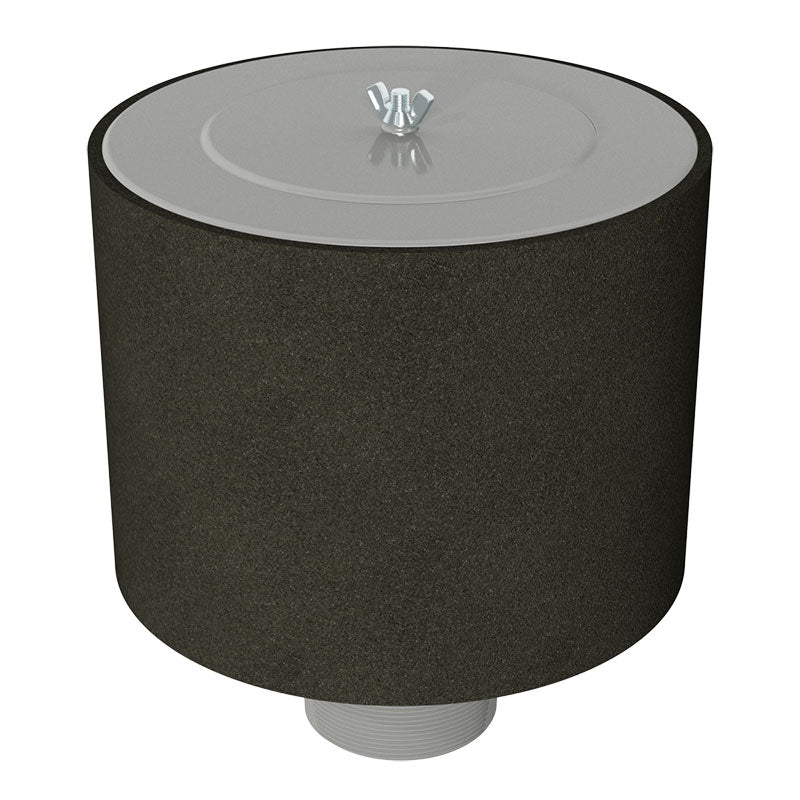

The Solberg FT-275P-500 is a compact exposed/open element intake filter engineered for industrial blowers, compressors, vacuum systems, and pneumatic conveying applications. Designed for maximum airflow and low restriction, this FT Series filter provides dependable protection in demanding industrial environments.
This model features a 5" Male Pipe Thread (MPT) connection and a high-efficiency polyester filter element rated at 5 microns with 99%+ filtration efficiency. The heavy-duty carbon steel construction with corrosion-resistant gray powder coat finish ensures long service life and durability.
Key Features
- Model: FT-275P-500
- 5" Male Pipe Thread (MPT) connection
- Compact exposed/open element intake filter design
- Polyester media with 99%+ efficiency at 5 microns
- Maximum airflow capacity: 800 SCFM
- Heavy gauge carbon steel construction
- Corrosion-resistant gray powder coat finish
- Low restriction outlet pipe and center bracket design
- Continuous operating temperature: -15°F to 220°F (-26°C to 104°C)
- Pressure drop graphs available upon request
- Recommended filter change differential: 15-20" H2O over initial pressure drop
- Replacement filter element: 275P
Applications
- Positive displacement blowers
- Piston compressors
- Screw compressors
- Pneumatic conveying systems
- Hydraulic breathers
- Waste water aeration
- Industrial workshops
- Construction and contractor equipment
- Side channel blowers
- Industrial and severe-duty operations
The Solberg FT Series intake filters are designed to deliver efficient particulate removal, low maintenance requirements, and reliable equipment protection while maintaining high airflow performance.
