Product Description

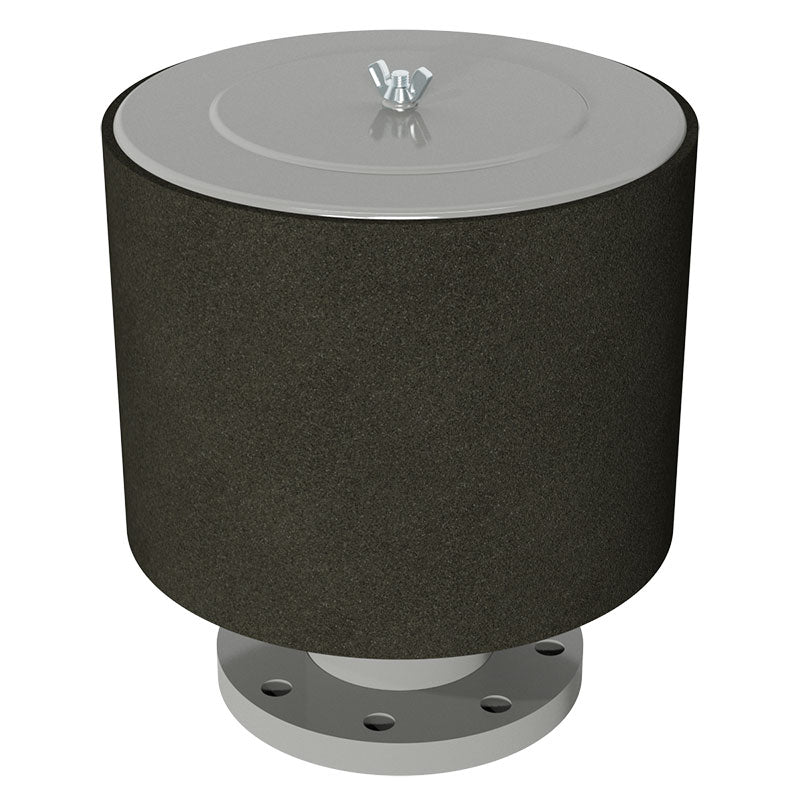

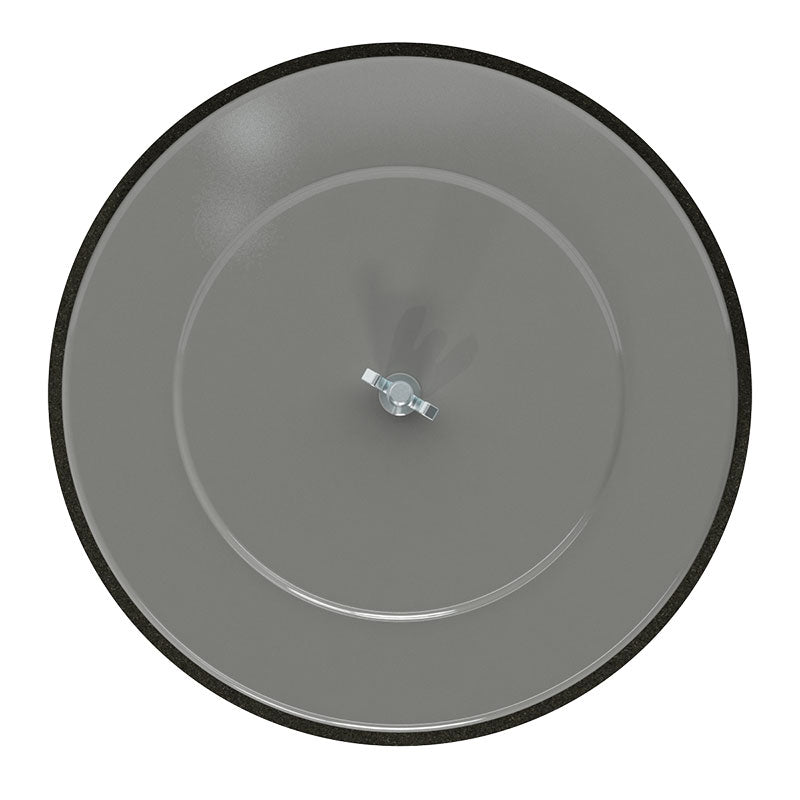

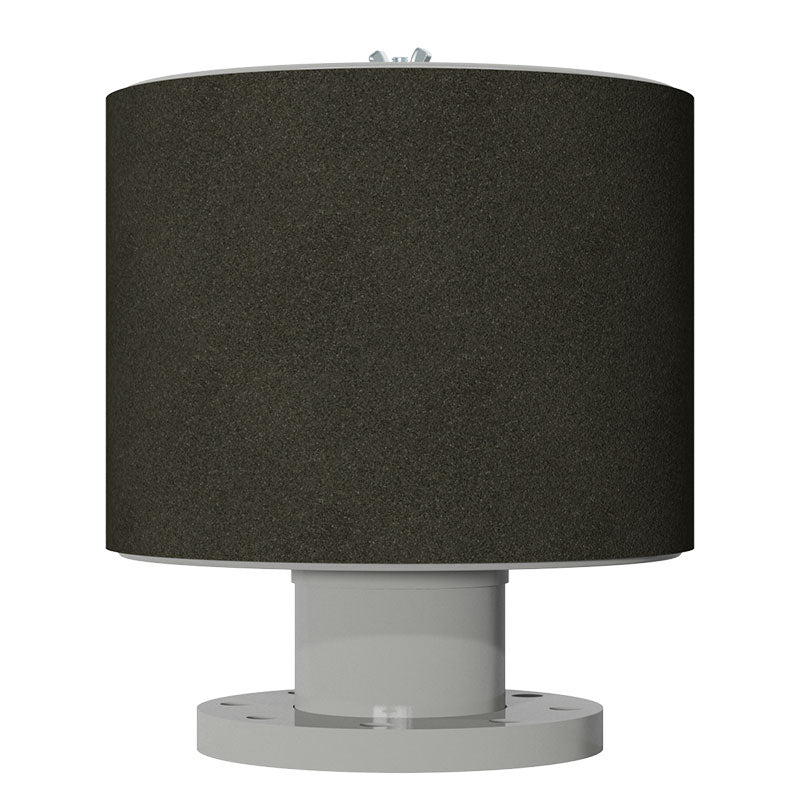

The Solberg FT-275P-500F is a heavy-duty exposed intake filter with weatherhood designed for industrial blowers, compressors, pneumatic conveying systems, and severe-duty applications. Engineered for maximum airflow and low restriction, this FT Series filter provides reliable particulate filtration while protecting critical equipment in harsh operating environments.
This model features a 5" ANSI flange connection and a high-efficiency polyester filter element rated at 5 microns with 99%+ particulate removal efficiency. The rugged carbon steel construction with corrosion-resistant gray powder coat finish ensures long-lasting durability and dependable performance.
Key Features
- Model: FT-275P-500F
- 5" ANSI flange connection
- Exposed/open element design with weatherhood protection
- Maximum airflow capacity: 800 SCFM
- Polyester filter media with 99%+ efficiency at 5 microns
- Heavy gauge carbon steel construction
- Corrosion-resistant gray powder coat finish
- Low restriction outlet pipe and center bracket design
- Continuous operating temperature: -15°F to 220°F (-26°C to 104°C)
- Recommended filter change differential: 15-20" H2O above initial pressure drop
- Pressure drop graphs available upon request
- Replacement filter element: 275P
- Approximate overall dimensions: 12" OD x 14" Height
Applications
- Positive displacement blowers
- Side channel blowers
- Piston compressors
- Screw compressors
- Pneumatic conveying systems
- Hydraulic breathers
- Waste water aeration systems
- Ash handling systems
- Construction and contractor equipment
- Industrial workshops
- Dock controls
- Envelope manufacturing
- Industrial and severe-duty environments
The Solberg FT Series intake filters are engineered to deliver efficient airflow performance, dependable filtration efficiency, and extended service life while minimizing maintenance requirements in demanding industrial operations.
