Product Description

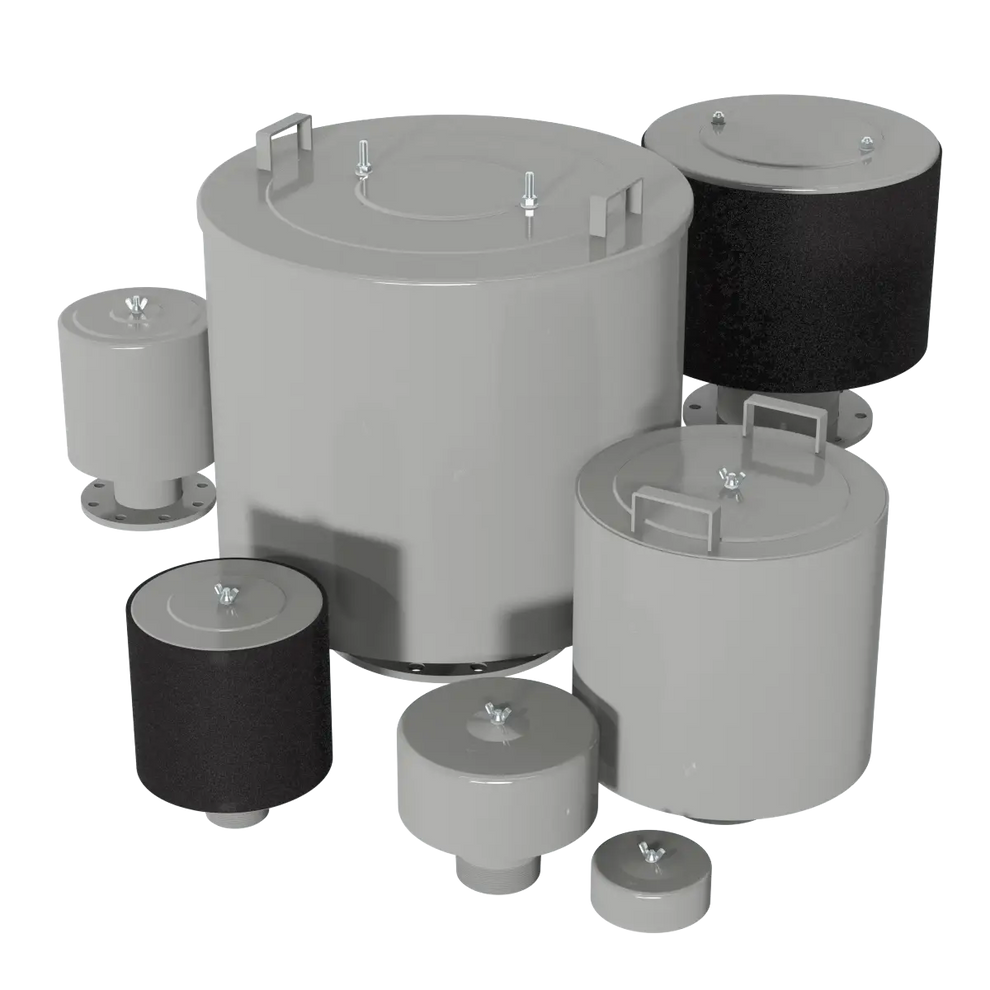

The Solberg FT-485P-2-1200F is a heavy-duty dual element exposed intake filter with weatherhood designed for high-capacity industrial blowers, compressors, vacuum systems, and pneumatic conveying applications. Engineered for maximum airflow and minimal restriction, this FT Series filter assembly provides superior particulate filtration and dependable equipment protection in severe-duty industrial environments.
This model features a 12" ANSI flange connection and dual high-efficiency polyester filter elements rated at 5 microns with 99%+ particulate removal efficiency. Its rugged carbon steel construction with corrosion-resistant gray powder coat finish ensures reliable long-term durability and performance in demanding operating conditions.
Key Features
- Model: FT-485P-2-1200F
- 12" ANSI flange connection
- Dual exposed/open element design with weatherhood protection
- High airflow capacity for large industrial systems
- Dual polyester filter media elements with 99%+ efficiency at 5 microns
- Heavy gauge carbon steel construction
- Corrosion-resistant gray powder coat finish
- Low restriction outlet pipe and center bracket design
- Continuous operating temperature: -15°F to 220°F (-26°C to 104°C)
- Recommended filter replacement differential: 15-20" H2O above initial pressure drop
- Pressure drop graphs available upon request
- Fully drawn weatherhood for outdoor and industrial protection
- Replacement filter element: 485P
- Designed for severe-duty and high-volume airflow applications
Applications
- Positive displacement blowers
- Side channel blowers
- Piston compressors
- Screw compressors
- Pneumatic conveying systems
- Vacuum pumps and vacuum systems
- Hydraulic breathers
- Waste water aeration systems
- Ash handling systems
- Industrial workshops
- Construction and contractor equipment
- Dock controls
- Envelope manufacturing
- Heavy industrial and severe-duty operations
The Solberg FT Series dual element intake filters are engineered to provide superior airflow performance, extended filter service life, and reliable particulate protection while minimizing maintenance requirements in demanding industrial applications.
