Product Description

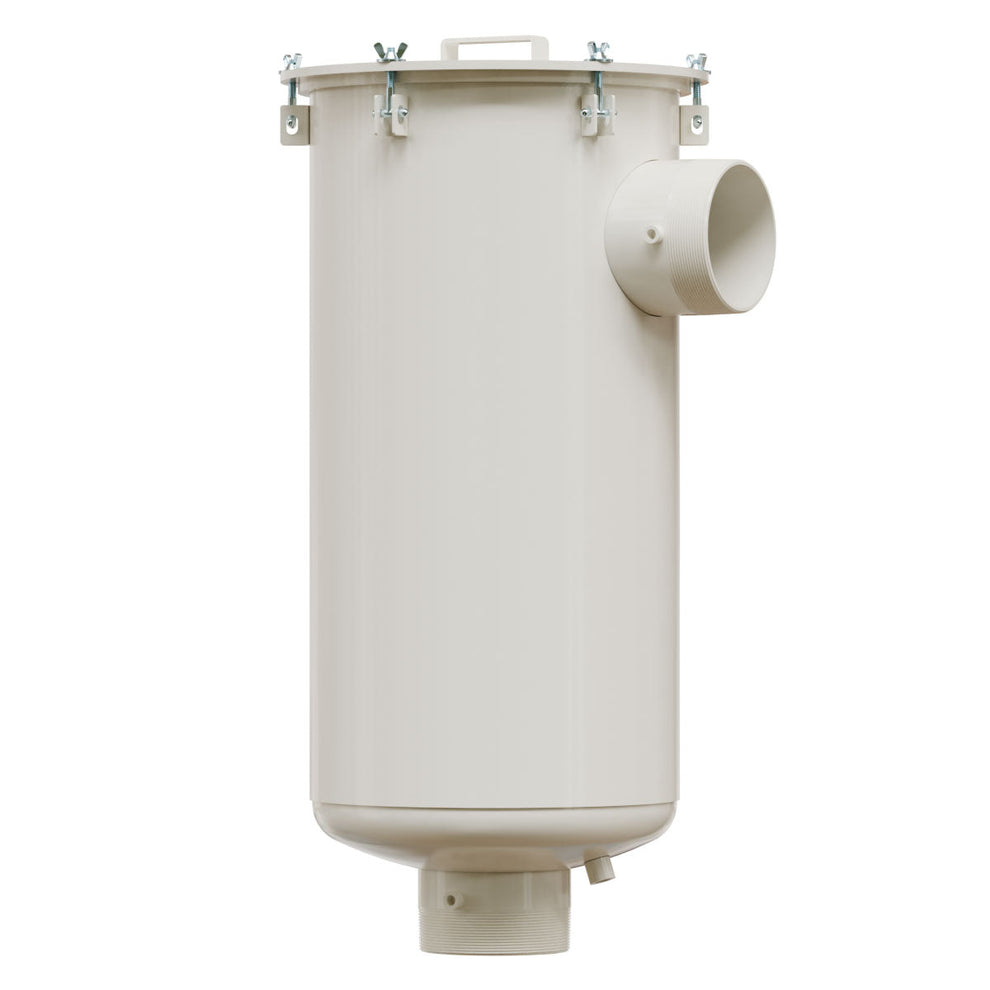

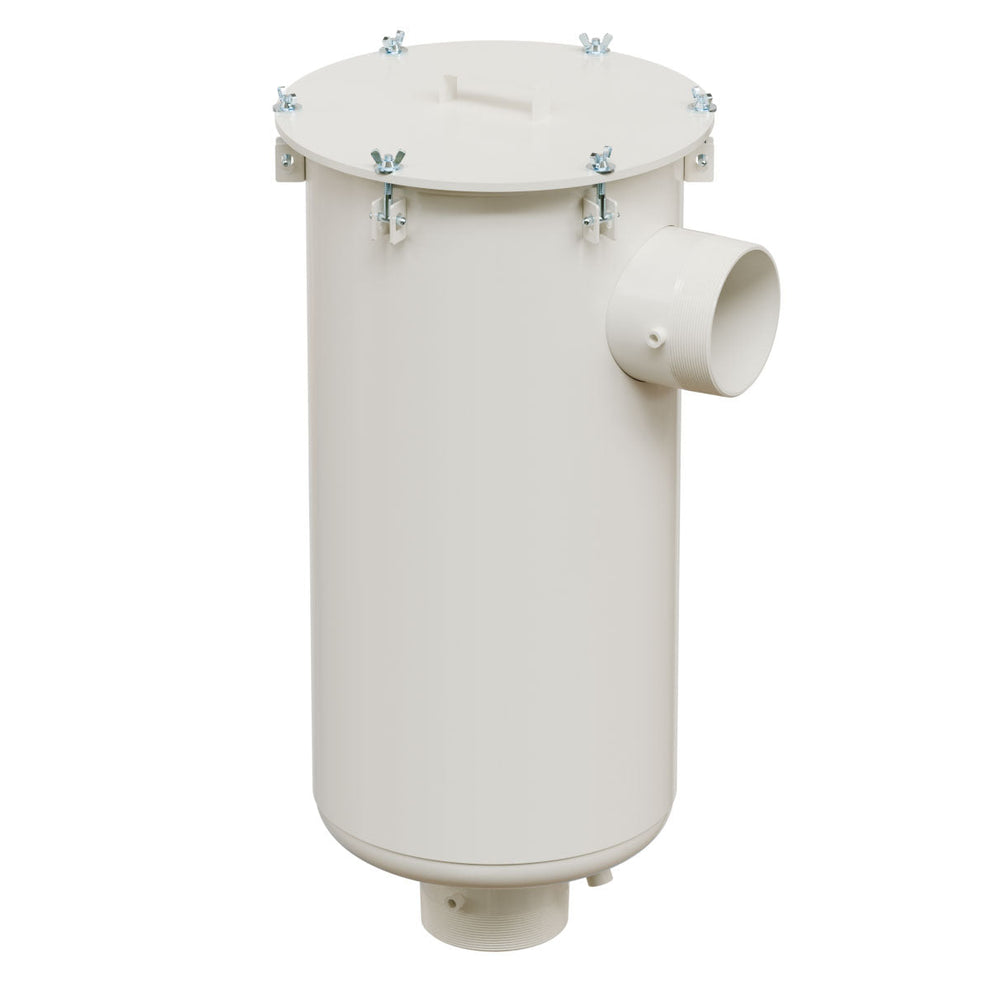

Solberg HDL-PSG474/2-500 Oil Mist Discharge Filter
The Solberg HDL-PSG474/2-500 is a heavy-duty oil mist discharge filter designed for large-capacity oil-sealed vacuum pumps and industrial exhaust systems. It efficiently captures oil fog, mist, and aerosol particles from exhaust air streams, helping maintain clean working environments, reduce oil emissions, and enable oil recovery and reuse.
Built with a robust carbon steel housing and corrosion-resistant white powder-coated finish, this high-flow coalescing filter is engineered for demanding continuous-duty applications such as vacuum systems, compressors, vacuum coating, and large industrial process exhausts.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 5" MPT inlet and outlet connections
- 0.3 micron coalescing filter media
- 99.97% filtration efficiency for oil mist removal
- High-flow pleated element design for low pressure drop
- Seamless drawn carbon steel housing construction
- O-ring sealed housing for leak-free operation
- Integrated discharge baffle for optimized airflow
- 1/2" drain port for recovered oil collection
- Vertical installation design for proper drainage
Specifications
- Model: HDL-PSG474/2-500
- Series: HDL Oil Mist Discharge Filter Series
- Connection Size: 5"
- Connection Type: MPT
- Filter Type: Coalescing Oil Mist Exhaust Filter
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Maximum Airflow: 800 SCFM
- Housing Material: Carbon steel (powder coated)
- Element Type: PSG474/2 coalescing media
- Drain Port: 1/2" NPT
- Operating Temperature: 68°F to 180°F (20°C to 82°C)
- Approximate Dimensions: 38.1" Height x 18.5" OD
- Approximate Weight: ~150 lbs
Applications
- Large oil-sealed vacuum pump systems
- Industrial compressor exhaust systems
- Vacuum coating and metallizing systems
- Freeze drying and degassing plants
- Heavy industrial manufacturing processes
- Paper, cement, and food processing industries
- High-volume oil mist recovery systems
Optional Features
- Alternative sealing materials and gasket options
- Stainless steel housing variants (select models)
- Custom connection configurations
- High-temperature media options
The HDL-PSG474/2-500 oil mist filter is engineered to deliver maximum separation efficiency for large-scale vacuum systems, ensuring reduced emissions, improved air quality, and reliable oil recovery in demanding industrial environments.
