Product Description

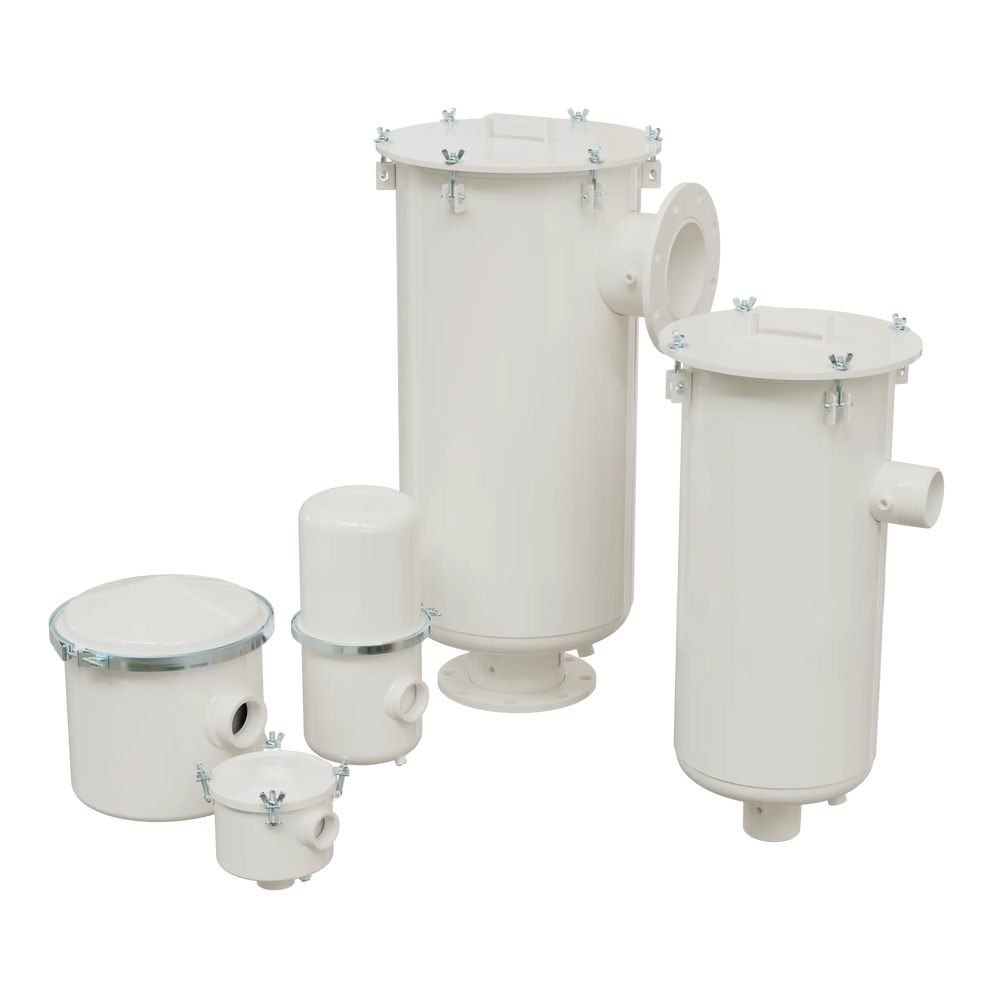

Solberg HDL-PSG474/2-600 Oil Mist Discharge Filter
The Solberg HDL-PSG474/2-600 is an ultra high-capacity oil mist discharge filter designed for large industrial oil-sealed vacuum pumps and heavy-duty exhaust systems. It efficiently removes fine oil mist, aerosol, and smoke from exhaust air streams, helping maintain clean industrial environments while enabling oil recovery and reducing emissions.
Built with a robust carbon steel housing and corrosion-resistant white powder-coated finish, this high-flow coalescing filter is engineered for continuous-duty operation in demanding applications such as large vacuum systems, compressors, vacuum coating, and industrial process exhaust handling.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 6" MPT inlet and outlet connections
- 0.3 micron coalescing filter media
- 99.97% filtration efficiency for oil mist removal
- High surface-area pleated element for low pressure drop
- Seamless drawn carbon steel housing construction
- O-ring sealed housing for leak-free operation
- Integrated discharge baffle for optimized airflow
- 1/2" drain tap for recovered oil collection
- Vertical mounting design for proper drainage
Specifications
- Model: HDL-PSG474/2-600
- Series: HDL Oil Mist Discharge Filter Series
- Connection Size: 6"
- Connection Type: MPT
- Filter Type: Coalescing Oil Mist Exhaust Filter
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Maximum Airflow: 1100 SCFM
- Housing Material: Carbon steel (powder coated)
- Element Type: PSG474/2 coalescing media
- Drain Port: 1/2" NPT
- Operating Temperature: 68°F to 180°F (20°C to 82°C)
- Outside Diameter: ~18.5"
- Overall Height: ~39.1"
- Approximate Weight: ~160 lbs
Applications
- Large oil-sealed vacuum pump systems
- Industrial compressor exhaust systems
- Vacuum coating and metallizing systems
- Freeze drying and degassing systems
- Heavy manufacturing and process industries
- Cement, paper, food, and packaging industries
- High-volume oil mist recovery applications
Optional Features
- Stainless steel housing options (select configurations)
- Alternative gasket and seal materials
- Custom inlet/outlet connections
- High-temperature media variants
The HDL-PSG474/2-600 oil mist filter is engineered to provide maximum separation efficiency for large-scale industrial vacuum systems, ensuring reduced emissions, improved air quality, and reliable oil recovery in high-demand environments.
