Product Description

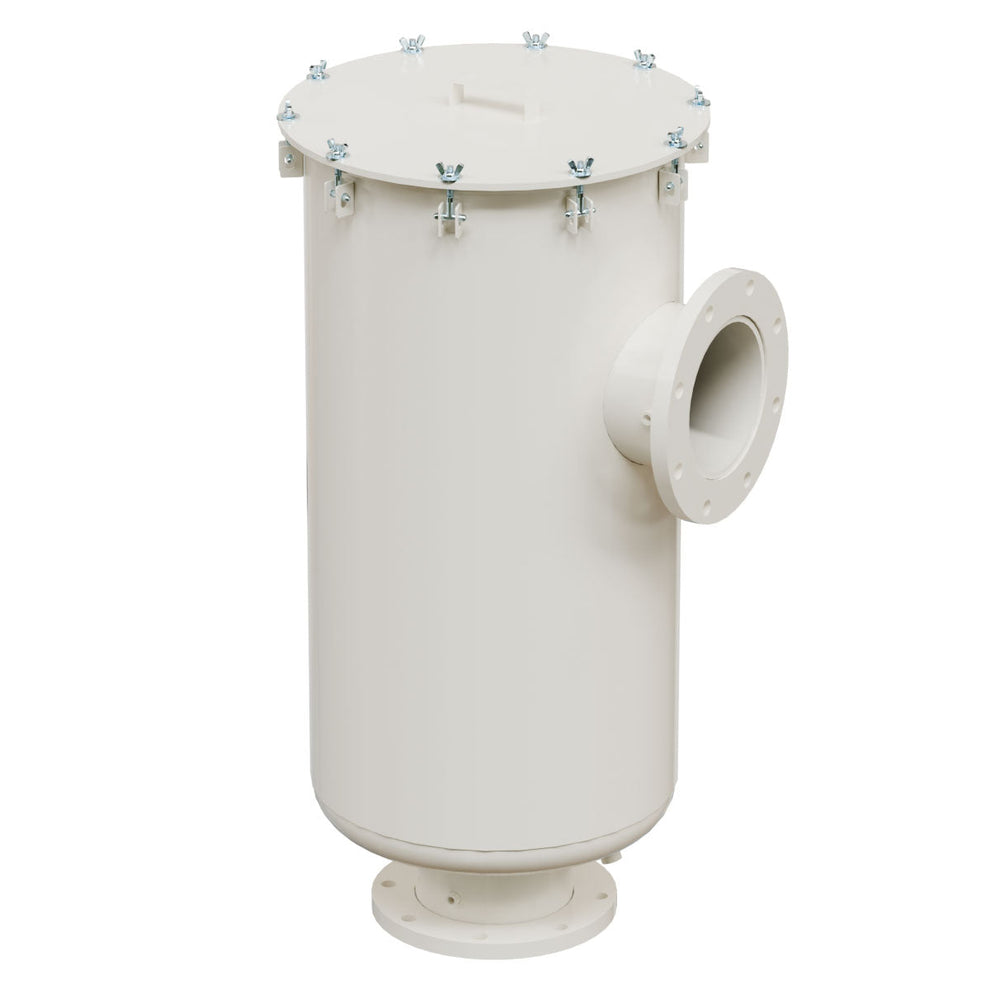

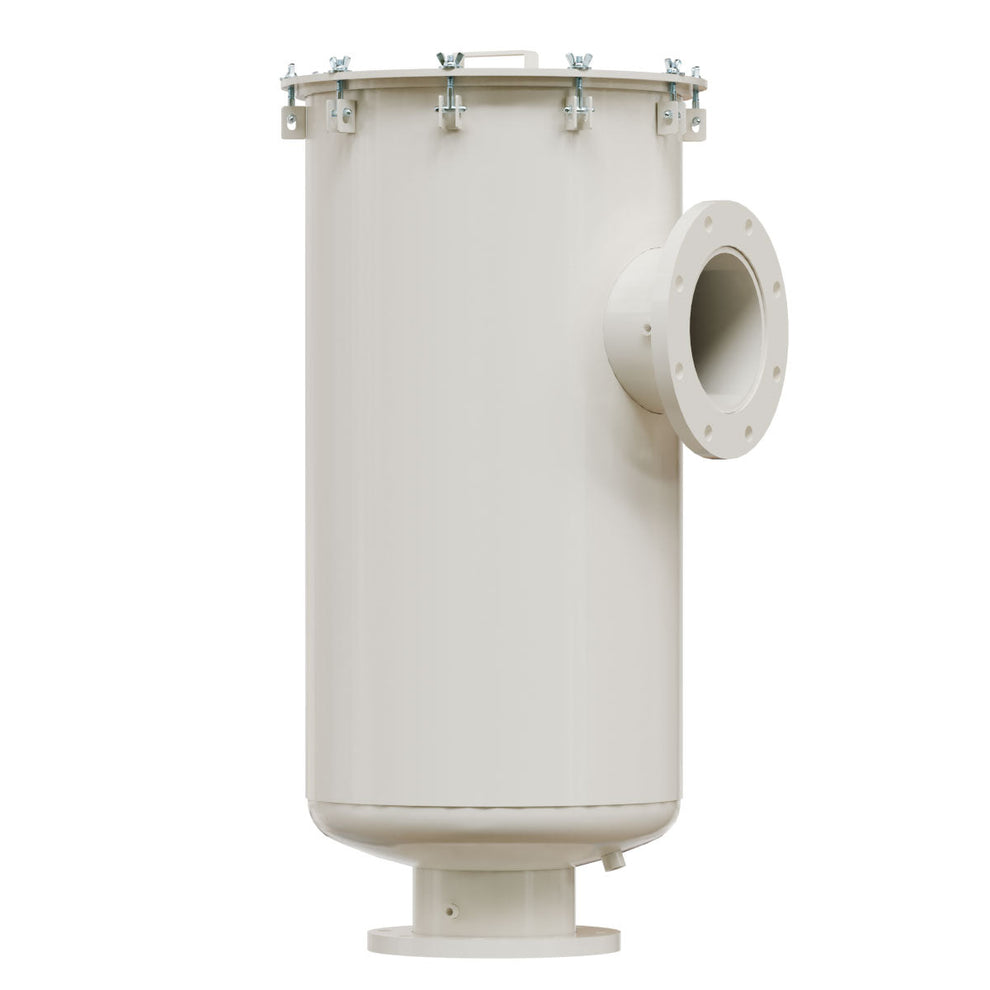

Solberg HDL-PSG476-800F Oil Mist Discharge Filter
The Solberg HDL-PSG476-800F is an ultra high-capacity oil mist discharge filter designed for large industrial vacuum pumps and heavy-duty exhaust systems. It effectively captures oil fog, mist, and aerosol particles from oil-sealed vacuum pump exhaust, helping maintain clean industrial environments while enabling oil recovery and reducing emissions.
Built with a rugged carbon steel housing and corrosion-resistant white powder-coated finish, this high-flow coalescing filter is engineered for continuous-duty operation in demanding applications such as vacuum systems, compressors, vacuum coating, and large-scale industrial process exhaust handling.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 8" flanged inlet and outlet connections
- 0.3 micron coalescing filter media
- 99.97% filtration efficiency for oil mist removal
- Large pleated element for ultra-low pressure drop at high flow
- Seamless drawn heavy-duty carbon steel housing
- O-ring sealed construction for leak-free operation
- Integrated discharge baffle for optimized airflow
- 1/2" drain port for recovered oil collection
- Vertical installation design for proper drainage
Specifications
- Model: HDL-PSG476-800F
- Series: HDL Oil Mist Discharge Filter Series
- Connection Size: 8"
- Connection Type: Flanged (ANSI pattern)
- Filter Type: Coalescing Oil Mist Exhaust Filter
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Maximum Airflow: 1800 SCFM
- Housing Material: Carbon steel (powder coated)
- Element Type: PSG476 coalescing media
- Drain Port: 1/2" NPT
- Operating Temperature: 68°F to 180°F (20°C to 82°C)
- Overall Dimensions: ~38.8" H x 21" OD
- Approximate Weight: ~200+ lbs
Applications
- Large industrial vacuum pump systems
- Vacuum coating and metallizing systems
- Freeze drying and degassing plants
- Heavy manufacturing and process industries
- Cement, paper, food, and packaging industries
- High-volume oil mist recovery systems
- Industrial compressor exhaust systems
Optional Features
- Stainless steel housing options (select configurations)
- Custom sealing materials and gaskets
- Back-pressure relief accessories
- Special mounting and lifting options
The HDL-PSG476-800F oil mist filter is engineered for maximum separation efficiency in large-scale vacuum systems, ensuring reduced emissions, improved air quality, and reliable oil recovery in the most demanding industrial environments.
