Product Description

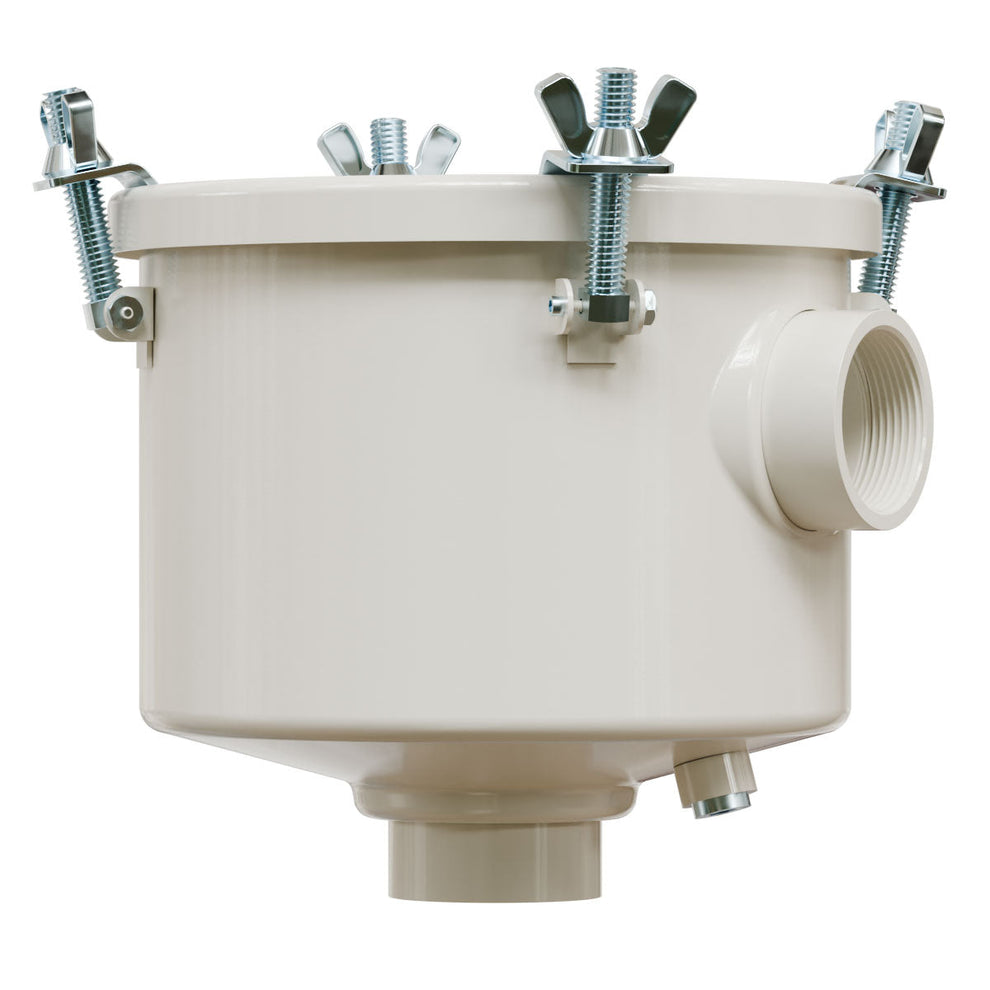

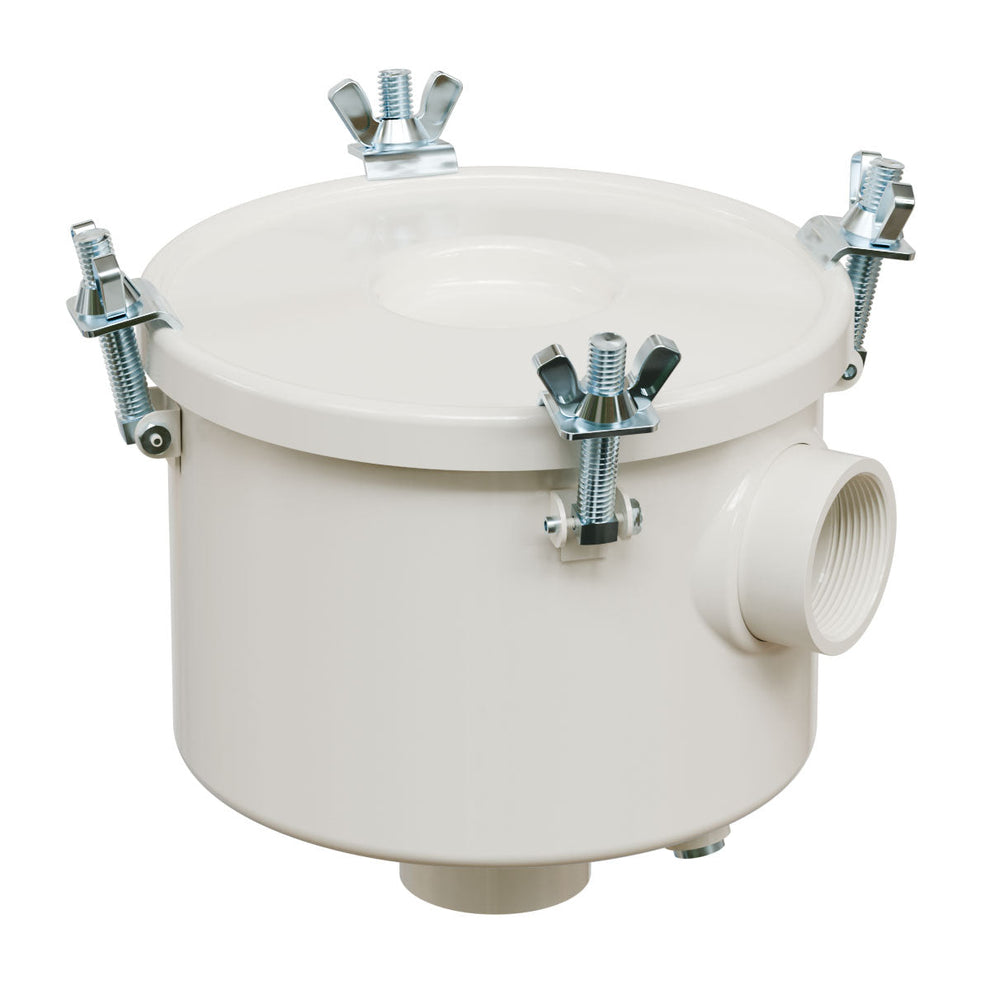

Solberg HDL-PSG848-100HC Oil Mist Discharge Filter
The Solberg HDL-PSG848-100HC is a high-efficiency oil mist and exhaust discharge filter designed for oil-sealed vacuum pumps, compressors, and industrial pneumatic systems. It effectively captures fine oil fog, mist, and aerosol particles from exhaust air, helping maintain clean workplace environments and enabling oil recovery and recycling.
Built with a durable carbon steel housing and corrosion-resistant powder-coated finish, this coalescing filter uses a high-surface-area pleated element to deliver low pressure drop and efficient separation of ultra-fine oil particles at 0.3 micron filtration performance.
Key Features
- High-efficiency oil mist and aerosol capture from vacuum pump exhaust
- 1" NPSC threaded inlet and outlet connections
- 0.3 micron coalescing filter media
- 99.97% filtration efficiency for oil mist separation
- Pleated element design for increased surface area and low pressure drop
- Corrosion-resistant white powder-coated carbon steel housing
- O-ring sealed housing for leak-free operation
- Integrated discharge baffle for optimized airflow
- Built-in drain tap for recovered oil collection and recycling
- Designed for vertical installation
Specifications
- Model: HDL-PSG848-100HC
- Series: HDL Oil Mist Discharge Filter Series
- Connection Size: 1"
- Connection Type: NPSC
- Filter Type: Coalescing Oil Mist Filter
- Filtration Rating: 0.3 Micron
- Efficiency: 99.97%
- Rated Flow: ~40 SCFM
- Housing Material: Carbon Steel (Powder Coated)
- Element Type: Pleated Coalescing Media
- Drain Port: 1/4" NPSC
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Approximate Weight: ~5 lbs
Applications
- Oil-sealed vacuum pump exhaust systems
- Blower and compressor exhaust oil mist removal
- Industrial vacuum processes
- Vacuum coating systems
- Freeze drying and degassing systems
- Paper, cement, and food processing equipment
- Pneumatic and industrial air systems
- Oil recovery and recycling systems
Optional Features
- Alternative sealing materials and gaskets
- Custom connection sizes and adapters
- Stainless steel housing options (select models)
- Lower back-pressure media options
The HDL-PSG848-100HC oil mist filter is engineered to reduce environmental contamination, recover usable oil, and protect downstream equipment by efficiently separating fine oil aerosols from exhaust air streams in demanding industrial applications.
