Product Description

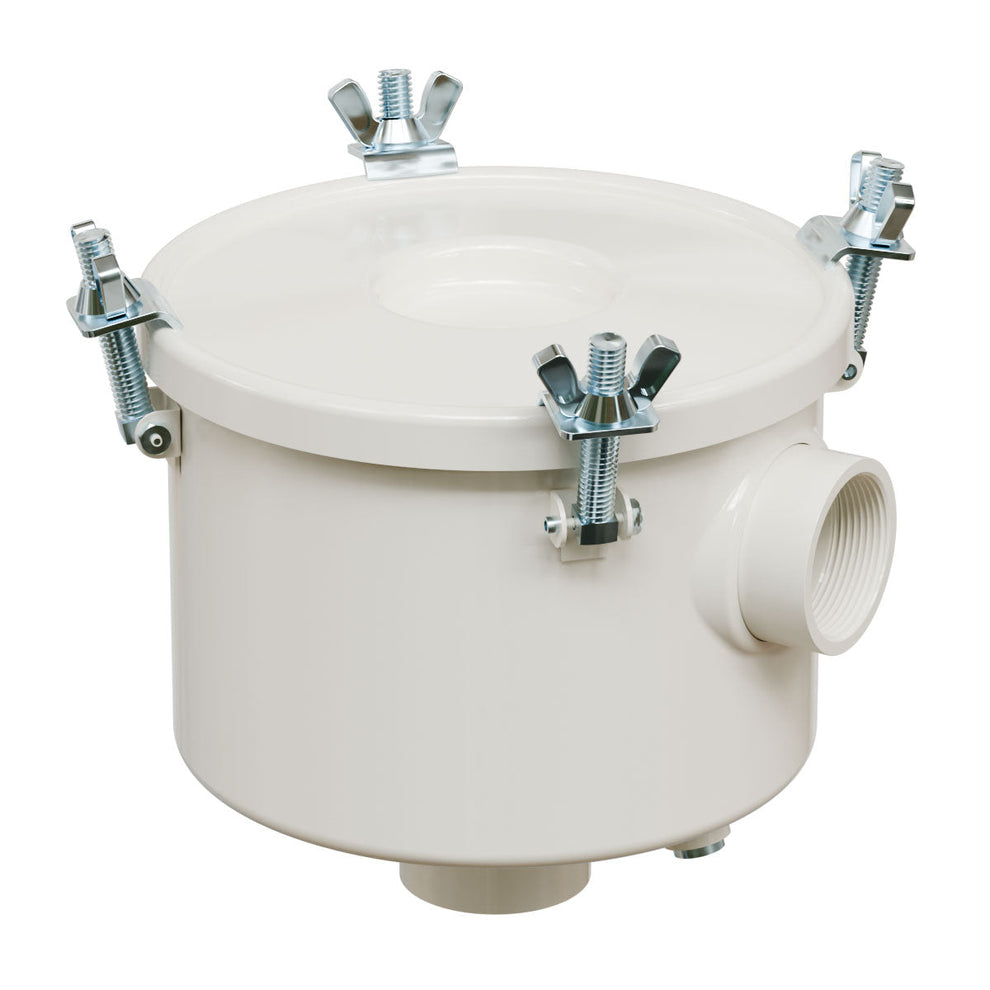

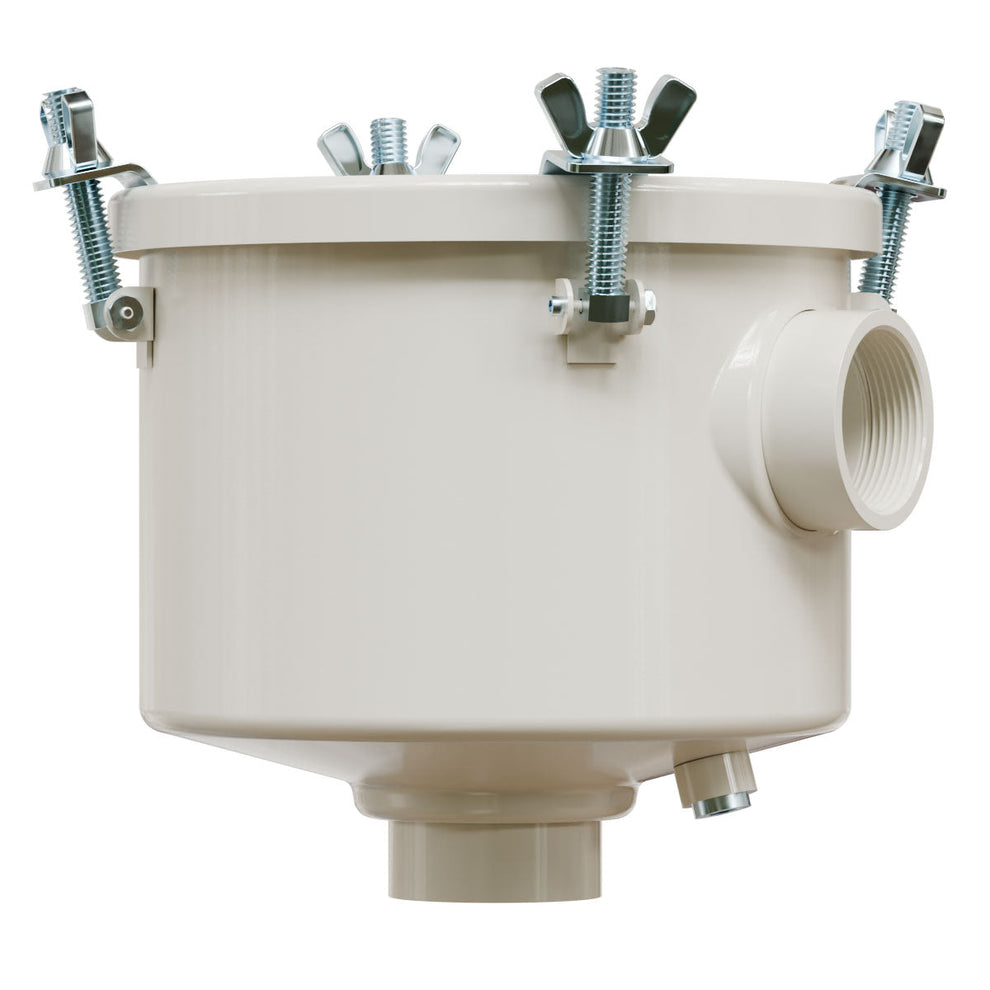

Solberg HDL-PSG848-150HC Oil Mist Discharge Filter
The Solberg HDL-PSG848-150HC is a high-efficiency oil mist discharge filter designed for oil-sealed vacuum pumps and compressor exhaust systems. It effectively captures fine oil mist, aerosol, and smoke generated during vacuum pump operation, helping maintain clean workplace air and enabling efficient oil recovery and reuse.
Built with a durable carbon steel housing and corrosion-resistant white powder-coated finish, this coalescing filter provides high separation efficiency with low pressure drop, ensuring reliable performance in continuous industrial applications.
Key Features
- High-efficiency oil mist and aerosol separation
- 1.5" NPSC inlet and outlet connections
- Coalescing filter media rated at 0.3 micron
- Up to 99.97% oil mist removal efficiency
- Pleated element design for low pressure drop
- Seamless carbon steel housing construction
- O-ring sealed housing for leak-free operation
- Integrated discharge baffle for optimized airflow
- Built-in drain tap for recovered oil collection
- Designed for vertical installation
Specifications
- Model: HDL-PSG848-150HC
- Series: HDL Oil Mist Discharge Filter Series
- Connection Size: 1.5"
- Connection Type: NPSC
- Filter Type: Coalescing Oil Mist Separator
- Filtration Rating: 0.3 micron
- Efficiency: 99.97%
- Rated Flow Capacity: ~50 SCFM
- Maximum Operating Pressure: ~2 psi (low pressure exhaust)
- Housing Material: Carbon steel (powder coated)
- Drain Port: 1/4" NPSC
- Element Type: Pleated coalescing media
- Operating Temperature: 20°C to 80°C (68°F to 176°F)
- Approximate Weight: ~5 lbs
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum pumps and compressors
- Vacuum coating systems
- Freeze drying and degassing systems
- Industrial manufacturing processes
- Oil mist recovery and emission control systems
Optional Features
- Alternative sealing materials and gaskets
- Custom inlet/outlet connection options
- Stainless steel housing variants (select models)
- High-temperature media options
The HDL-PSG848-150HC oil mist filter is engineered to improve air quality, recover usable oil, and protect downstream equipment by efficiently separating fine oil aerosols from exhaust air streams in industrial vacuum applications.
