Product Description

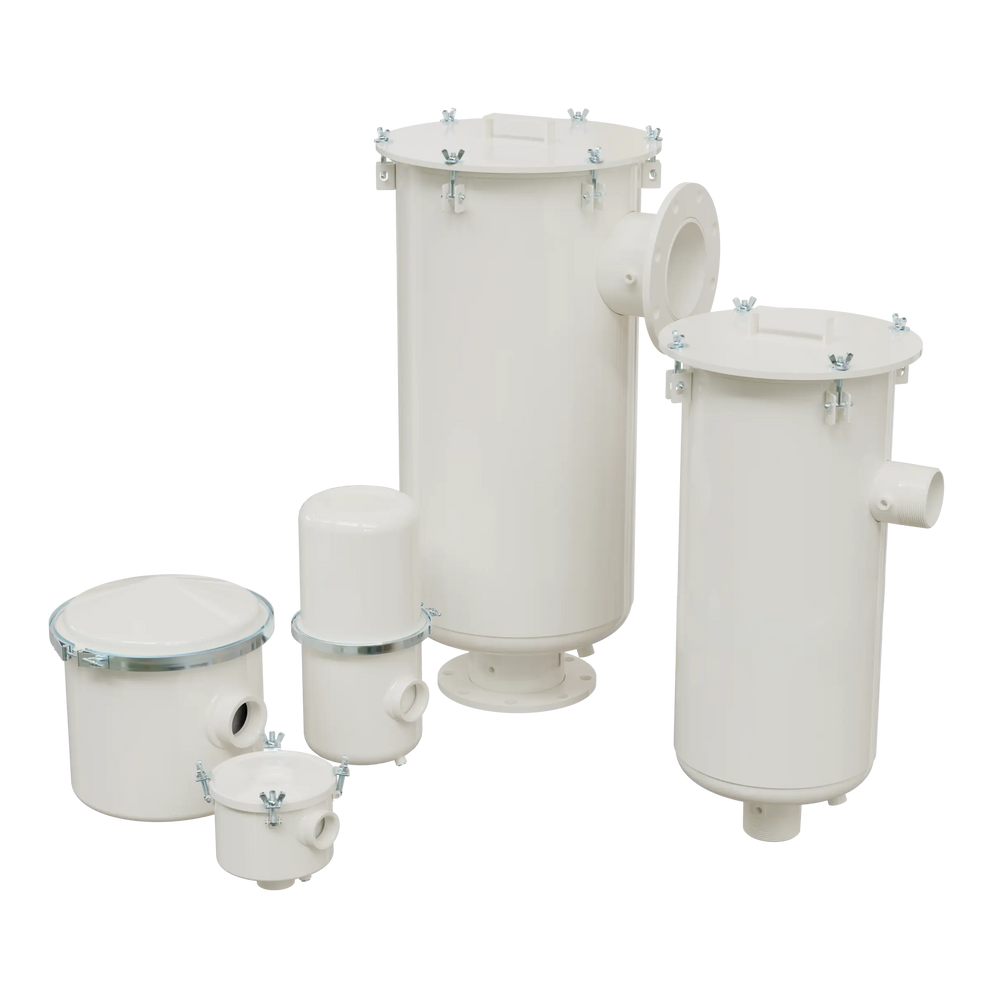

Solberg HDL-PSG850/1-200HC Oil Mist Discharge Filter
The Solberg HDL-PSG850/1-200HC is a high-efficiency oil mist discharge filter designed for oil-sealed vacuum pumps and industrial compressor exhaust systems. It captures fine oil fog, aerosol, and smoke particles from exhaust air, helping maintain clean working environments while enabling oil recovery and reducing operating costs.
This model features a durable carbon steel housing with corrosion-resistant white powder-coated finish and a high-performance pleated coalescing element. It is engineered for low pressure drop operation and consistent filtration performance in continuous-duty industrial applications.
Key Features
- High-efficiency oil mist and aerosol separation from exhaust air
- 2" NPSC inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency for oil mist removal
- Pleated element design for increased surface area and low pressure drop
- Seamless carbon steel housing construction
- O-ring sealed housing for leak-free performance
- Integrated discharge baffle for optimized airflow
- 1/4" NPSC drain tap for collected oil recovery
- Vertical mounting design for proper drainage
Specifications
- Model: HDL-PSG850/1-200HC
- Series: HDL Oil Mist Discharge Filter Series
- Connection Size: 2"
- Connection Type: NPSC
- Filter Type: Coalescing Oil Mist Exhaust Filter
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Maximum Airflow: 125 SCFM
- Housing Material: Carbon steel (powder coated)
- Element Material: Polyester coalescing media
- Drain Port: 1/4" NPSC
- Operating Temperature: 68°F to 180°F (20°C to 82°C)
- Overall Height: ~11.25"
- Outside Diameter: ~7.6"
- Approximate Weight: ~15 lbs
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum and compressor systems
- Vacuum coating processes
- Freeze drying and degassing systems
- Paper, cement, and food processing industries
- General industrial oil mist recovery systems
Optional Features
- Alternative sealing materials and gaskets
- Stainless steel housing options (select models)
- Custom connection adapters
- High-temperature media variants
The HDL-PSG850/1-200HC is engineered to efficiently remove oil mist from exhaust air streams, improve workplace air quality, and support oil recovery while ensuring stable vacuum pump operation.
