Product Description

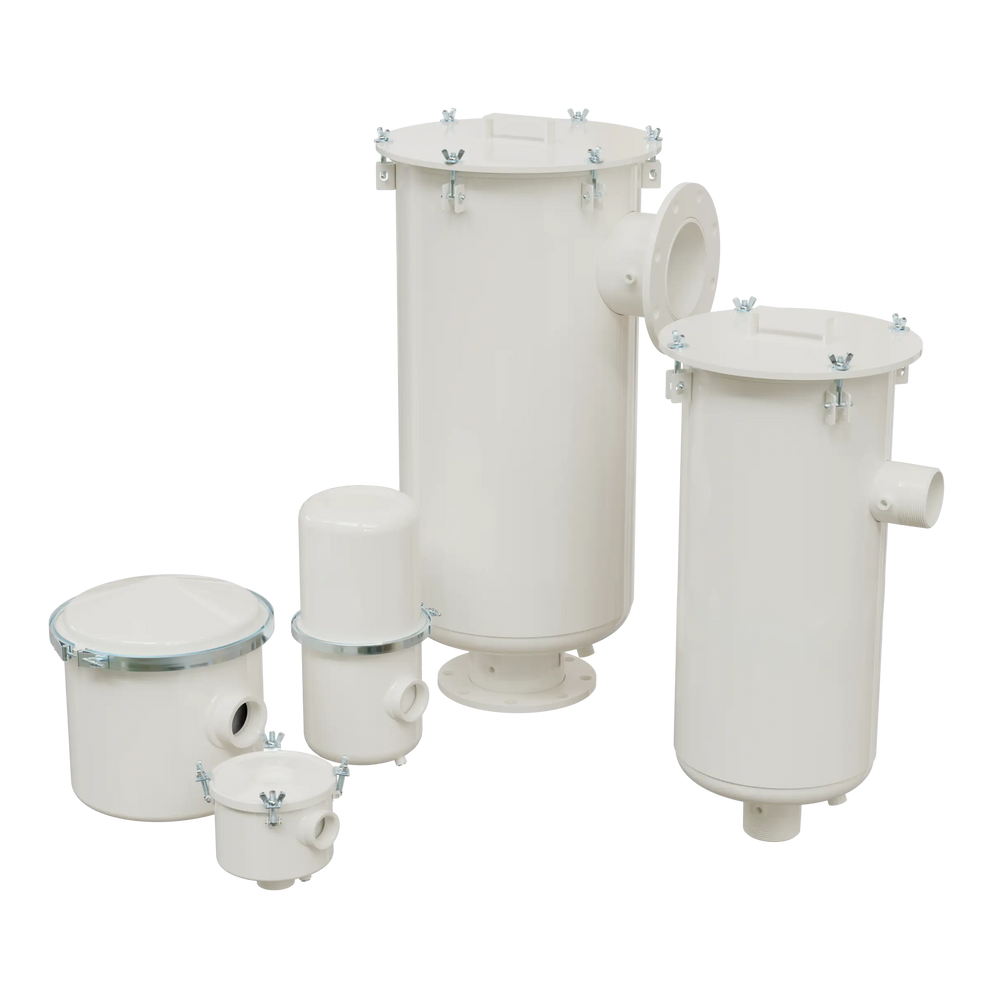

Solberg HDL-PSG860/1-200HC Oil Mist Discharge Filter
The Solberg HDL-PSG860/1-200HC is a heavy-duty oil mist discharge filter designed for oil-sealed vacuum pumps and industrial exhaust systems. It efficiently captures fine oil mist, aerosol, and smoke from exhaust air streams, helping maintain cleaner workplace environments and enabling oil recovery and reuse.
Built with a rugged carbon steel housing and corrosion-resistant white powder-coated finish, this high-performance coalescing filter delivers reliable separation of ultra-fine oil particles while maintaining low pressure drop for continuous industrial operation.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 2" NPSC inlet and outlet connections
- 0.3 micron coalescing filter media
- 99.97% oil mist removal efficiency
- Pleated element design for increased surface area and low pressure drop
- Seamless drawn carbon steel housing construction
- O-ring sealed housing for leak-free operation
- Integrated discharge baffle for optimized airflow
- 1/4" NPSC drain tap for recovered oil collection
- Designed for vertical installation
Specifications
- Model: HDL-PSG860/1-200HC
- Series: HDL Oil Mist Discharge Filter Series
- Connection Size: 2"
- Connection Type: NPSC
- Filter Type: Coalescing Oil Mist Exhaust Filter
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Maximum Airflow: ~175 SCFM
- Housing Material: Carbon steel (powder coated)
- Element Type: Pleated coalescing media
- Drain Port: 1/4" NPSC
- Operating Temperature: 68°F to 180°F (20°C to 82°C)
- Approximate Weight: ~15 lbs
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum and compressor systems
- Vacuum coating processes
- Freeze drying and degassing systems
- Paper, cement, and food processing industries
- General industrial oil mist recovery applications
Optional Features
- Alternative sealing materials and gaskets
- Stainless steel housing options (select models)
- Custom connection adapters
- High-temperature media variants
The HDL-PSG860/1-200HC is engineered to reduce oil emissions, improve air quality, and support efficient oil recovery while ensuring stable and reliable vacuum pump operation in demanding industrial environments.
