Product Description

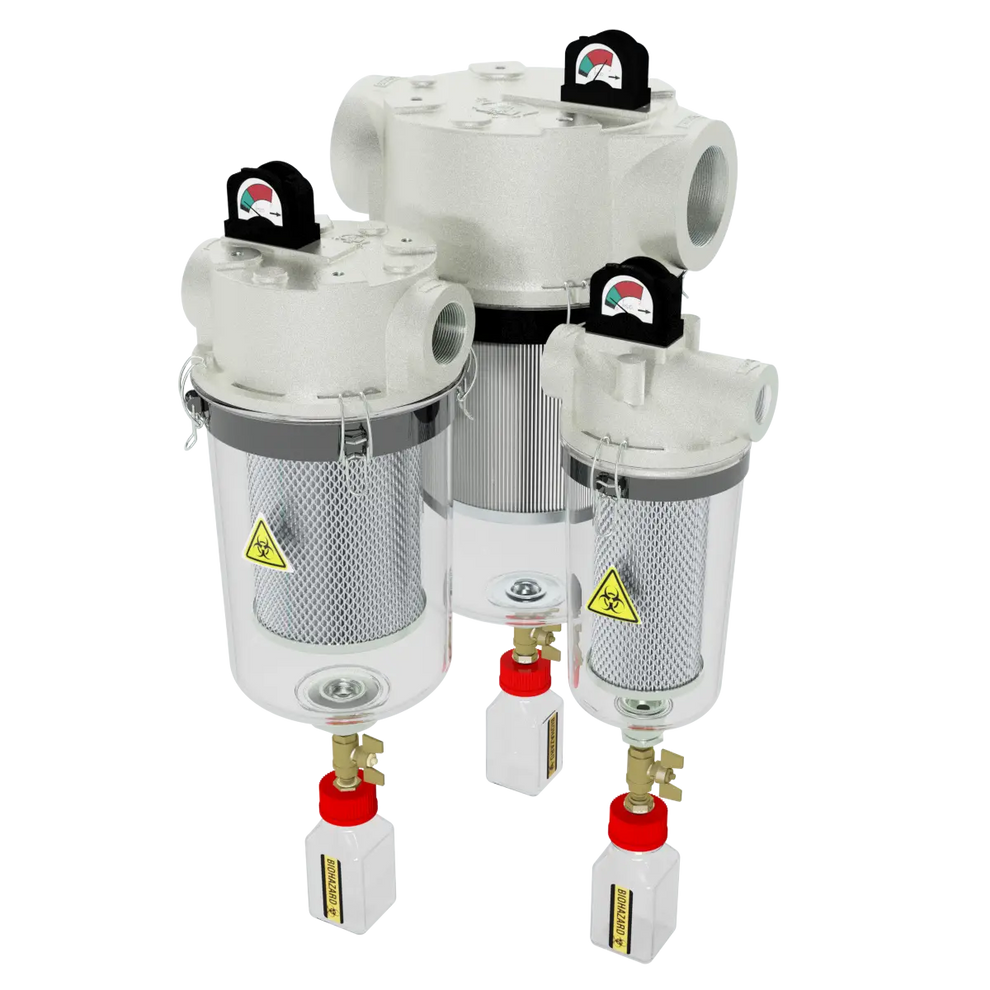

Solberg HV-UL234/2G-400C Medical Vacuum Filter
The Solberg HV-UL234/2G-400C is a high-capacity inline straight-through medical vacuum filter designed for hospital vacuum systems, laboratory environments, and medical gas distribution applications. It provides ULPA-grade filtration performance at 0.1 micron, ensuring 99.995% particulate removal while maintaining stable airflow and low pressure drop for critical vacuum applications.
Built for demanding healthcare and industrial environments, this filter features a corrosion-resistant cast aluminum head, transparent shatter-resistant polycarbonate collection chamber, reusable glass drain flask, and an integrated pressure drop indicator gauge for real-time monitoring of filter condition and system safety.
Key Features
- Inline straight-through medical vacuum filter design
- 4" FPT inlet and outlet connections
- ULPA filtration media rated at 0.1 micron
- 99.995% particulate removal efficiency
- Meets NFPA 99 medical vacuum system requirements
- ISO 29463-1 ISO 45H classification
- Corrosion-resistant cast aluminum head assembly
- Transparent polycarbonate collection chamber
- Reusable glass drain flask for safe sterilization and disposal
- “Easy Read” pressure drop indicator gauge
- Brass drain valve and fittings for liquid discharge
- Biohazard labeling for medical safety compliance
- High dirt-holding capacity for extended service intervals
- Low air-to-media ratio for reduced pressure loss
Specifications
- Model: HV-UL234/2G-400C
- Series: HV Medical Vacuum Filter Series
- Connection Size: 4"
- Connection Type: FPT
- Filter Media: ULPA
- Micron Rating: 0.1 micron
- Filtration Efficiency: 99.995%
- ULPA Classification: ISO 45H
- Airflow Capacity (Rarified): 619 CFM
- Free Air Aspirated (FAA): ~226 SCFM
- Operating Pressure: Atmospheric to full vacuum
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Approximate Dimensions: 29" Height x 13.5" OD
- Approximate Weight: ~30 lbs
- Replacement Element: UL234/2G
Applications
- Hospital central vacuum systems
- Medical gas distribution systems
- Laboratory vacuum systems
- Dental and surgical vacuum systems
- Biological containment systems
- Research and pharmaceutical facilities
- Cleanroom vacuum applications
- Industrial vacuum pump protection systems
Optional Features
- Available with or without pressure gauge
- Mounting bracket modifications available
- Additional service and maintenance kits
The HV-UL234/2G-400C is engineered to deliver reliable ULPA-level protection for critical vacuum systems, ensuring safe operation, high filtration efficiency, and long service life in healthcare and laboratory environments.
