Product Description

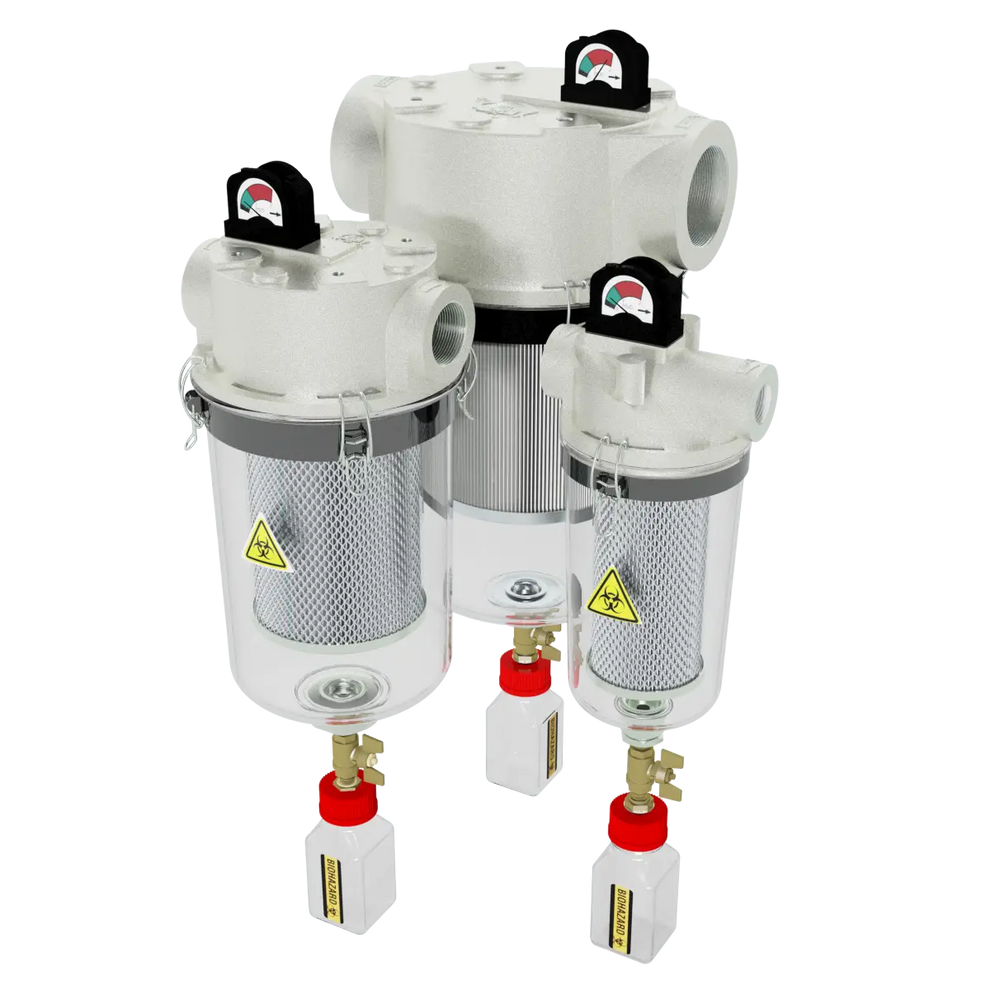

Solberg HV-UL850/1-200C Medical Vacuum Filter
The Solberg HV-UL850/1-200C is a high-capacity inline straight-through medical vacuum filter engineered for hospital vacuum systems, laboratory environments, and medical gas distribution applications. Designed to meet stringent healthcare filtration standards, this ULPA-rated filter delivers 99.995% filtration efficiency at 0.1 micron while maintaining low pressure drop for optimal vacuum pump performance.
Featuring a corrosion-resistant cast aluminum head, transparent shatter-resistant polycarbonate collection chamber, reusable glass drain flask, and integrated “Easy Read” pressure drop gauge, the HV-UL850/1-200C provides dependable contamination control and simplified maintenance for critical medical and laboratory applications.
Key Features
- Inline straight-through medical vacuum filter design
- 2" NPSC threaded inlet and outlet connections
- ULPA filtration media rated at 0.1 micron
- 99.995% particulate removal efficiency
- Meets NFPA 99 requirements for vacuum filtration
- ISO 29463-1 compliant ISO 45H filtration classification
- Operating pressure range from atmospheric to full vacuum
- Corrosion-resistant cast aluminum head assembly
- Transparent shatter-resistant polycarbonate collection chamber
- Reusable glass drain flask for easy sterilization and disposal
- Integrated “Easy Read” pressure drop indicator gauge
- Brass valve and fittings for contaminated liquid release
- Biohazard labeling for medical safety compliance
- Low air-to-media ratio minimizes pressure loss
- High dirt holding capacity for extended service life
Specifications
- Model: HV-UL850/1-200C
- Series: HV Medical Vacuum Filter Series
- Connection Size: 2"
- Connection Type: NPSC
- Filter Media: ULPA
- Micron Rating: 0.1 Micron
- Filtration Efficiency: 99.995%
- ULPA Classification: ISO 45H / H14
- Rarified Air Flow Rating: 383 CFM
- Free Air Aspirated (FAA): 129 SCFM
- Operating Pressure: Atmospheric to Full Vacuum
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Overall Height: 25.5"
- Outside Diameter: 9"
- Approximate Weight: 19 lbs
- Replacement Element: UL850/1
- Housing Material: Cast Aluminum / Polycarbonate
Applications
- Hospital central vacuum systems
- Medical gas distribution systems
- Laboratory vacuum systems
- Dental vacuum applications
- Biological containment systems
- Healthcare facilities
- Research laboratories
- Cleanroom vacuum processes
- Vacuum pumps and systems
- Medical suction systems
Optional Features
- Available with or without pressure gauge
- Mounting bracket modification options
- Additional accessory and replacement kits available
The HV-UL850/1-200C medical vacuum filter is engineered to provide exceptional bacterial and particulate filtration performance while protecting sensitive vacuum equipment and maintaining safe operating conditions in healthcare and laboratory environments.
