Product Description

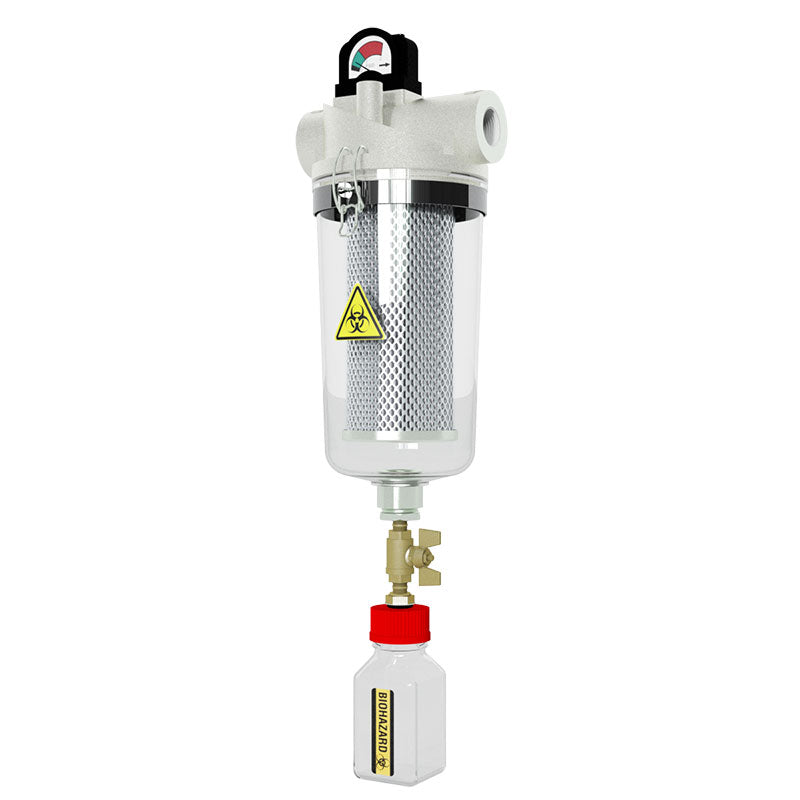

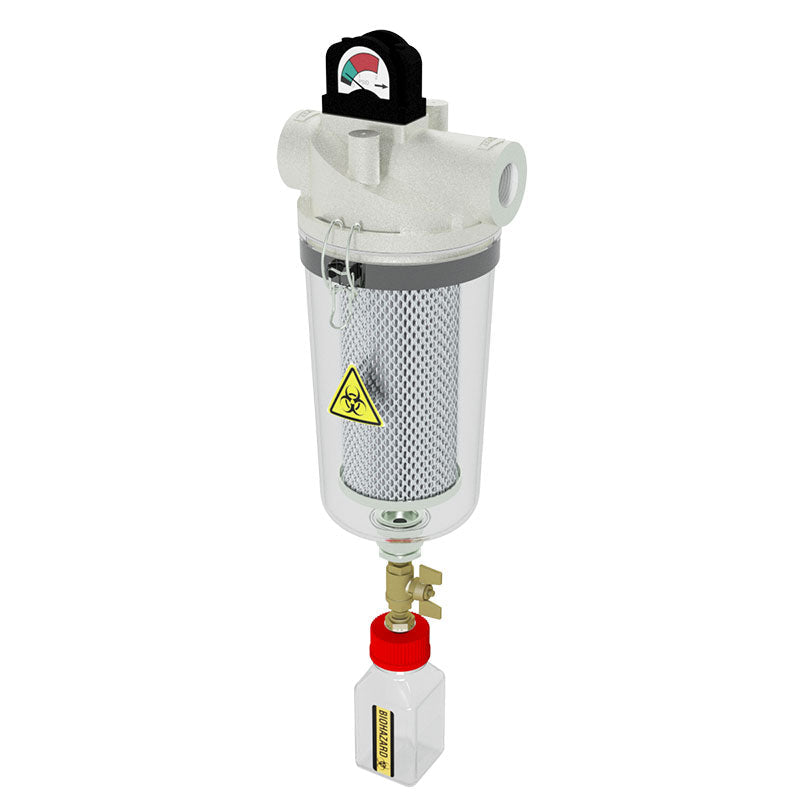

Solberg HV-UL896-100C Medical Vacuum Filter
The Solberg HV-UL896-100C is a high-efficiency inline straight-through medical vacuum filter engineered for hospital vacuum systems, laboratory environments, and medical gas distribution applications. Designed to meet stringent medical filtration standards, this ULPA-rated filter delivers 99.995% filtration efficiency at 0.1 micron while maintaining low pressure drop for optimal vacuum pump performance.
Featuring a corrosion-resistant cast aluminum head, transparent shatter-resistant polycarbonate collection chamber, reusable glass drain flask, and integrated pressure drop gauge, the HV-UL896-100C provides reliable contamination control and easy visual monitoring in critical medical and laboratory environments.
Key Features
- Inline straight-through medical vacuum filter design
- 1" NPSC threaded inlet and outlet connections
- ULPA filtration media rated at 0.1 micron
- 99.995% particulate removal efficiency
- Meets NFPA 99 vacuum filtration requirements
- Complies with ISO 29463-1 ISO 45H filtration standards
- Operating pressure range from atmospheric to full vacuum
- Corrosion-resistant cast aluminum head assembly
- Transparent shatter-resistant polycarbonate collection chamber
- Reusable glass drain flask for safe sterilization and disposal
- Integrated “Easy Read” pressure drop indicator gauge
- Brass valve and fittings for contaminated liquid release
- Biohazard labeling for medical safety compliance
- Low air-to-media ratio minimizes pressure loss
- High dirt holding capacity for extended service life
Specifications
- Model: HV-UL896-100C
- Series: HV Medical Vacuum Filter Series
- Connection Size: 1"
- Connection Type: NPSC
- Filter Media: ULPA
- Micron Rating: 0.1 Micron
- Filtration Efficiency: 99.995%
- ULPA Classification: ISO 45H
- Rarified Air Flow Rating: 110 CFM
- Free Air Aspirated: 40 SCFM
- Operating Pressure: Atmospheric to Full Vacuum
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Overall Height: 22.5"
- Outside Diameter: 7"
- Weight: Approx. 15 lbs
- Replacement Element: UL896
- Housing Material: Cast Aluminum / Polycarbonate
Applications
- Hospital vacuum systems
- Medical gas distribution systems
- Laboratory vacuum systems
- Dental vacuum applications
- Vacuum pumps and systems
- Medical and healthcare facilities
- Research laboratories
- Cleanroom vacuum processes
- Biological containment systems
Optional Features
- Available with or without pressure gauge
- Mounting bracket modification options
- Additional accessories and replacement kits available
The HV-UL896-100C medical vacuum filter is engineered to provide exceptional bacterial and particulate filtration performance while protecting vacuum pumps and maintaining safe operating conditions in healthcare and laboratory environments.
