Product Description
Solberg HV-UL896-150C Medical Vacuum Filter
The Solberg HV-UL896-150C is a high-efficiency inline straight-through medical vacuum filter designed for hospital vacuum systems, laboratory environments, and medical gas distribution applications. Engineered to meet demanding healthcare filtration standards, this ULPA-rated filter delivers 99.995% filtration efficiency at 0.1 micron while maintaining low pressure drop and reliable vacuum system performance.

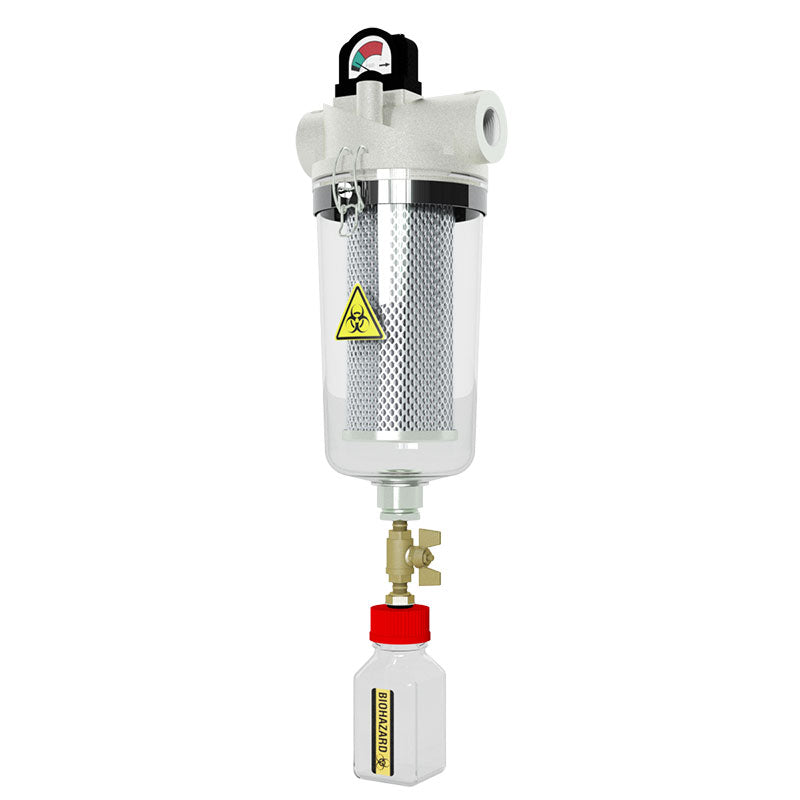

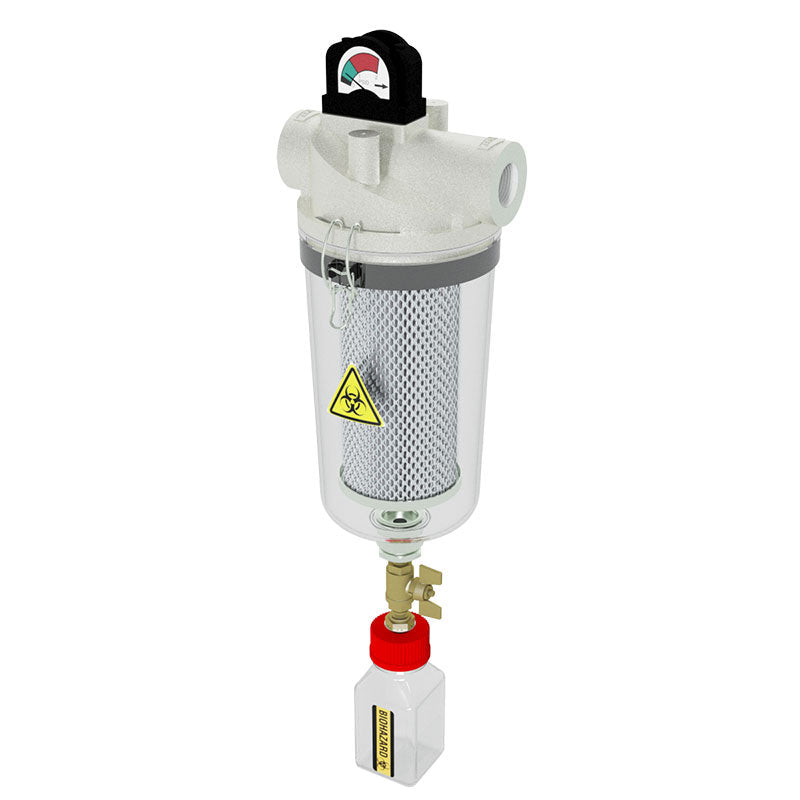

Constructed with a corrosion-resistant cast aluminum head assembly, transparent shatter-resistant polycarbonate collection chamber, reusable glass drain flask, and integrated pressure drop gauge, the HV-UL896-150C provides dependable contamination control and simplified maintenance in critical healthcare and laboratory environments.
Key Features
- Inline straight-through medical vacuum filter configuration
- 1.5" NPSC threaded inlet and outlet connections
- ULPA filtration media rated at 0.1 micron
- 99.995% particulate removal efficiency
- Complies with NFPA 99 vacuum filtration requirements
- ISO 29463-1 ISO 45H ULPA classified media
- Designed for operation from atmospheric pressure to full vacuum
- Corrosion-resistant cast aluminum head assembly
- Transparent shatter-resistant polycarbonate collection chamber
- Reusable glass drain flask for safe liquid disposal
- Integrated “Easy Read” pressure drop indicator gauge
- Brass drain valve and fittings
- Biohazard labeling for medical safety compliance
- High dirt holding capacity for extended service intervals
- Low pressure drop for efficient vacuum operation
Specifications
- Model: HV-UL896-150C
- Series: HV Medical Vacuum Filter Series
- Connection Size: 1.5"
- Connection Type: NPSC
- Filter Media: ULPA
- Micron Rating: 0.1 Micron
- Filtration Efficiency: 99.995%
- ULPA Classification: ISO 45H
- Rarified Air Flow Rating: 110 CFM
- Free Air Aspirated: 80 SCFM
- Operating Pressure: Atmospheric to Full Vacuum
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Overall Height: 22.5"
- Outside Diameter: 7"
- Approximate Weight: 15 lbs
- Replacement Element: UL896 Series
- Housing Material: Cast Aluminum / Polycarbonate
Applications
- Hospital central vacuum systems
- Medical gas vacuum systems
- Dental vacuum applications
- Laboratory vacuum systems
- Biological containment systems
- Healthcare facilities
- Cleanroom vacuum processes
- Vacuum pump protection systems
- Medical suction systems
- Research and pharmaceutical laboratories
Optional Features
- Available with or without pressure gauge
- Additional mounting bracket options
- Replacement drain flask assemblies
- Accessory and maintenance kits available
The HV-UL896-150C medical vacuum filter is engineered to provide exceptional bacterial and particulate filtration performance while protecting sensitive vacuum equipment and maintaining safe operating conditions in healthcare and laboratory environments.
