Product Description

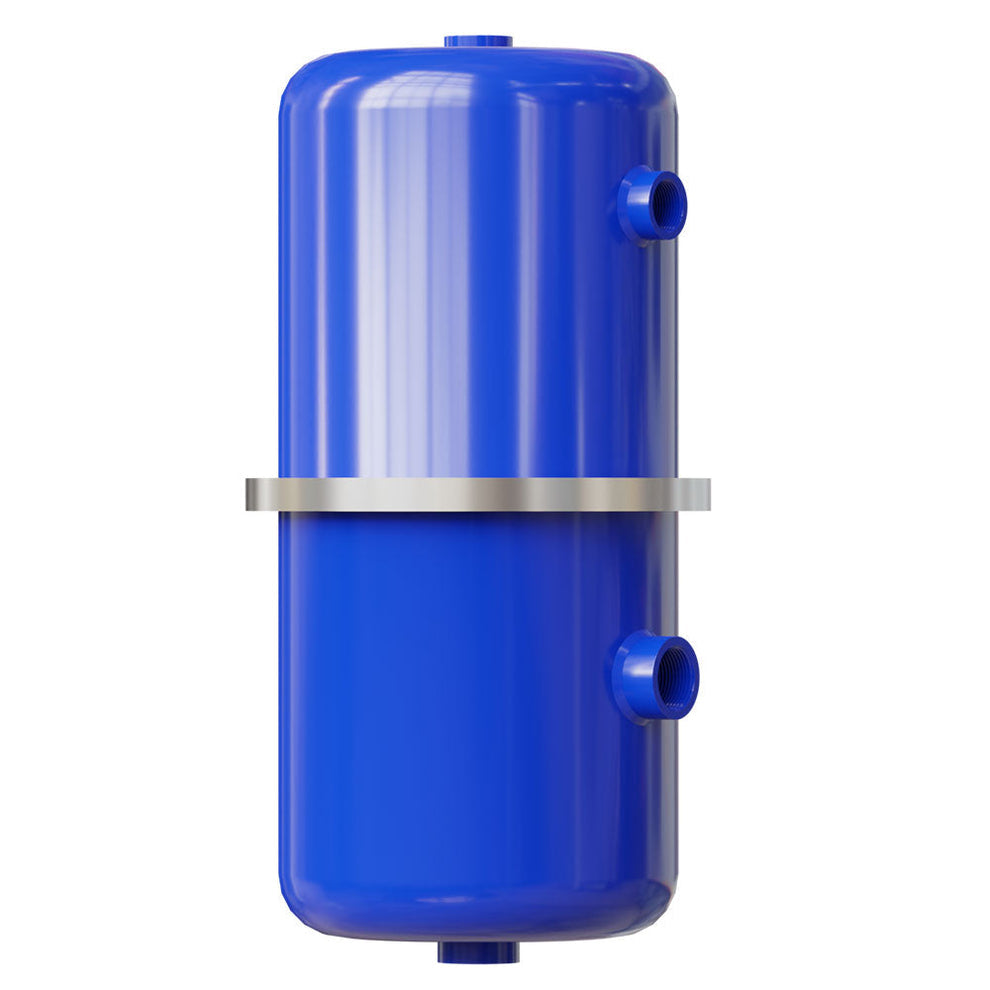

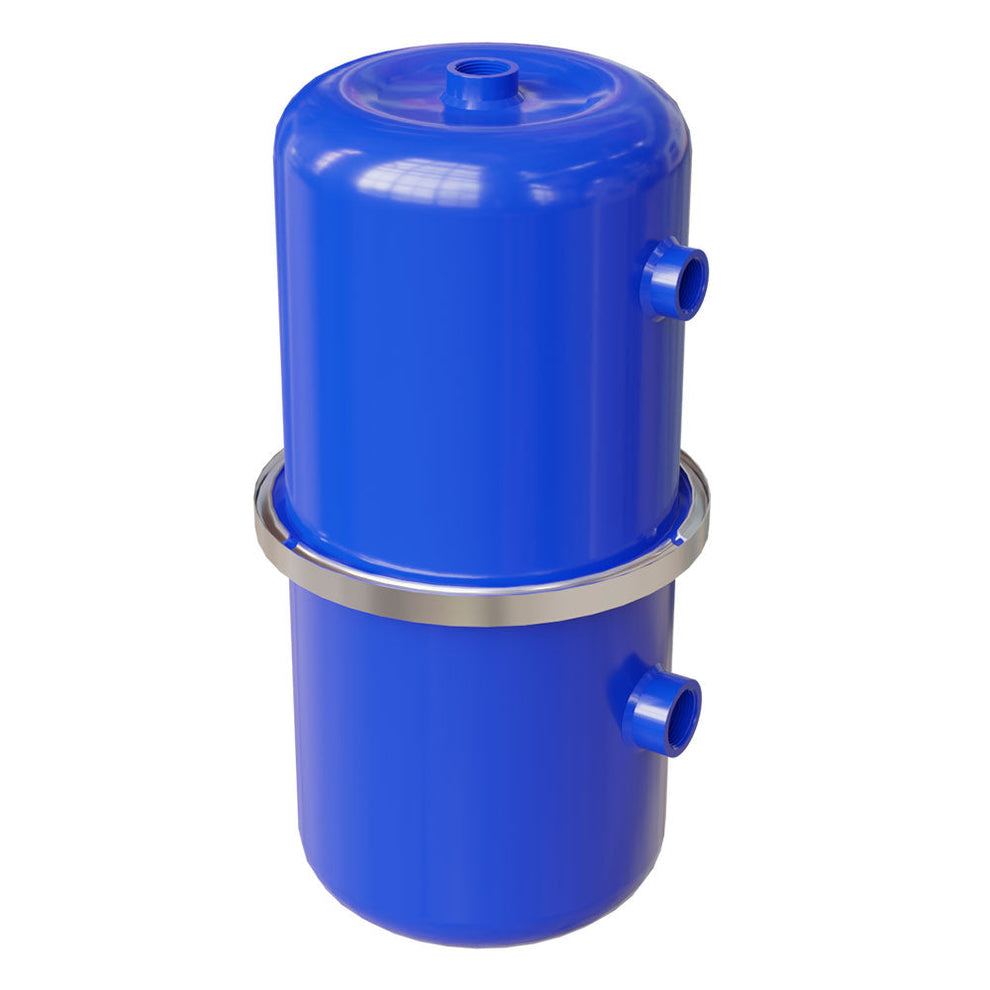

The Solberg LRS-19-100HC is a high-performance integrated liquid knockout and vacuum filtration system designed to protect vacuum pumps and process equipment from liquid carryover, moisture, aerosols, and fine particulate contamination. It combines liquid separation and 5-micron filtration in a single compact housing, reducing system footprint and improving efficiency.
This LRS Series unit features a 99%+ efficient 5-micron polyester filter element along with an integrated expansion chamber and baffle system that separates liquids before they reach the pump. Its heavy-duty powder-coated carbon steel body ensures long-term durability in demanding industrial environments.
Key Features
- Integrated liquid knockout + vacuum inlet filtration system (2-in-1 design)
- 5-micron polyester filter media with 99%+ efficiency
- Integrated expansion chamber and baffle for liquid separation
- High liquid/slurry holding capacity
- Transparent sight port for easy monitoring
- Durable powder-coated carbon steel construction
- Designed to prevent emulsification and pump damage
- Compact footprint for integrated vacuum systems
- Low pressure drop for efficient system operation
Specifications
- Model: LRS-19-100HC
- Connection Size: 1 in NPSC
- Function: Integrated liquid separator + inlet vacuum filter
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: ~85 SCFM
- Housing Material: Carbon steel (blue powder coated)
- Drain Port: 1 in NPSC
- Sight Port: 1 in NPSC
- Operating Temperature: -15°F to 220°F
- Vacuum Service: Rough to medium vacuum
- Approx. Length: ~17 in
- Approx. Weight: ~20 lb
Applications
- Vacuum pump protection systems
- Chemical processing systems
- Pharmaceutical vacuum applications
- Food processing equipment
- Chip and slurry handling systems
- Industrial vacuum filtration systems
- Air process systems with moisture or solvent separation
- Pneumatic conveying systems
The Solberg LRS-19-100HC delivers reliable dual-stage protection by combining liquid separation and fine filtration in one unit, improving system reliability, reducing maintenance, and extending vacuum pump life.
