Product Description

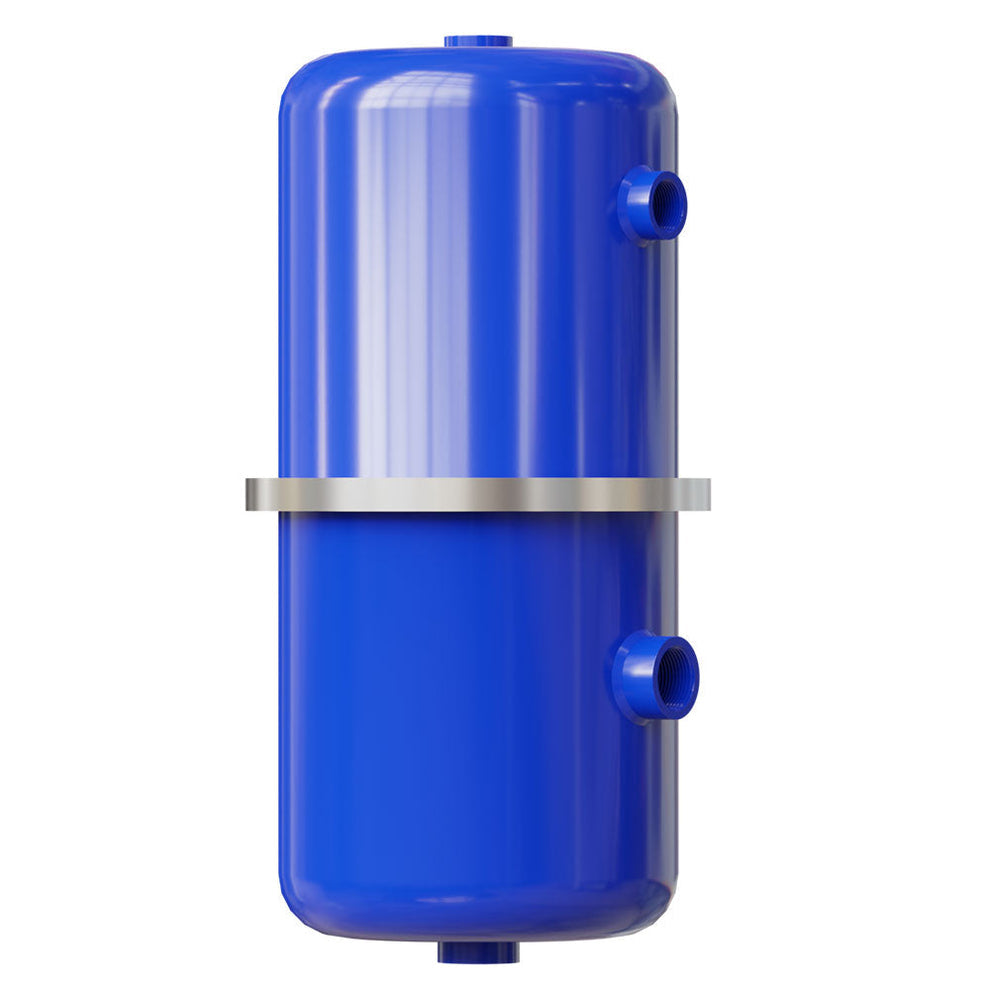

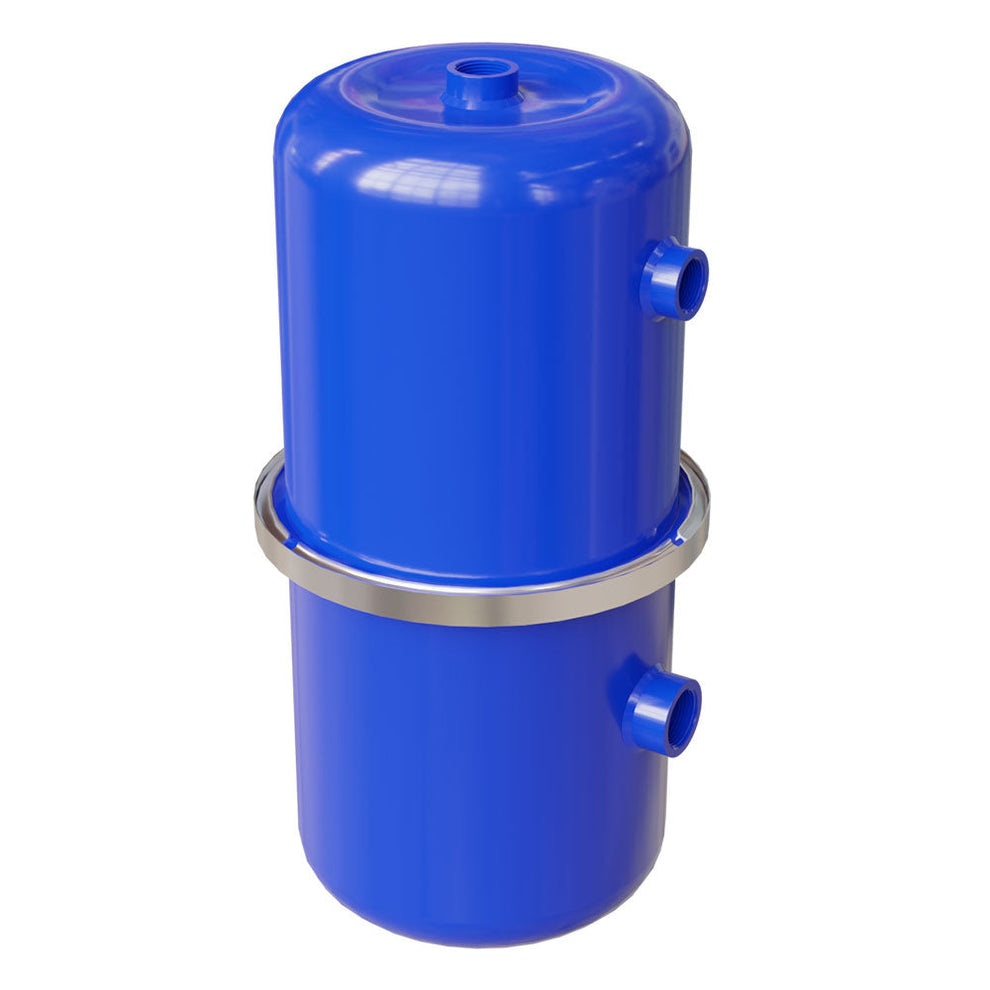

The Solberg LRS-19-125HC is a high-efficiency integrated liquid knockout and vacuum filtration system designed to protect vacuum pumps and process equipment from liquid carryover, aerosols, vapors, and fine particulate contamination. It combines liquid separation and 5-micron filtration in a single compact housing to reduce system footprint and improve reliability.
This LRS Series unit features a 5-micron polyester filter element with 99%+ filtration efficiency along with an integrated expansion chamber and internal baffle system that effectively separates liquids before they reach the vacuum pump. Its heavy-duty powder-coated carbon steel body ensures durability in demanding industrial environments.
Key Features
- Integrated liquid knockout + vacuum inlet filtration system (2-in-1 design)
- 5-micron polyester filter media with 99%+ efficiency
- Integrated expansion chamber and baffle for liquid separation
- High liquid and slurry holding capacity
- Transparent sight port for visual monitoring
- Durable powder-coated carbon steel construction
- Designed to protect vacuum pumps from moisture and emulsification
- Compact design for integrated vacuum systems
- Low pressure drop for efficient operation
Specifications
- Model: LRS-19-125HC
- Connection Size: 1.25 in NPSC
- Function: Integrated liquid separator + inlet vacuum filter
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: ~85 SCFM
- Housing Material: Carbon steel (blue powder coated)
- Drain Port: 1 in NPSC
- Sight Port: 1 in NPSC
- Holding Capacity: ~1.5 gallons
- Operating Temperature: -15°F to 220°F
- Vacuum Service:** Rough to medium vacuum applications
- Configuration: Inline integrated separator system
Applications
- Vacuum pump protection systems
- Chemical processing systems
- Pharmaceutical and food processing
- Pneumatic conveying systems
- Chip and slurry handling systems
- Industrial vacuum filtration systems
- Moisture and solvent separation applications
- Process air systems requiring liquid removal
The Solberg LRS-19-125HC provides reliable dual-stage protection by combining liquid separation and fine filtration in one compact system, improving vacuum reliability, reducing maintenance, and extending pump life in industrial applications.
