Product Description

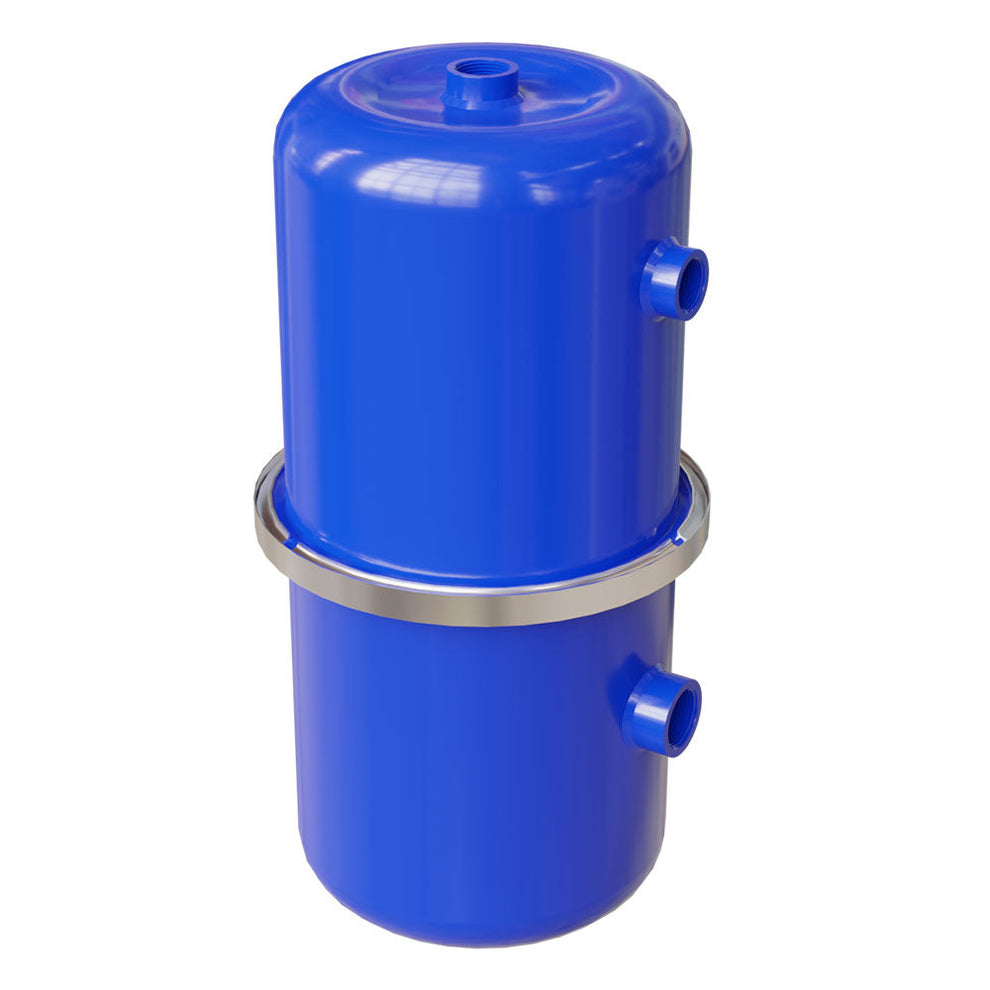

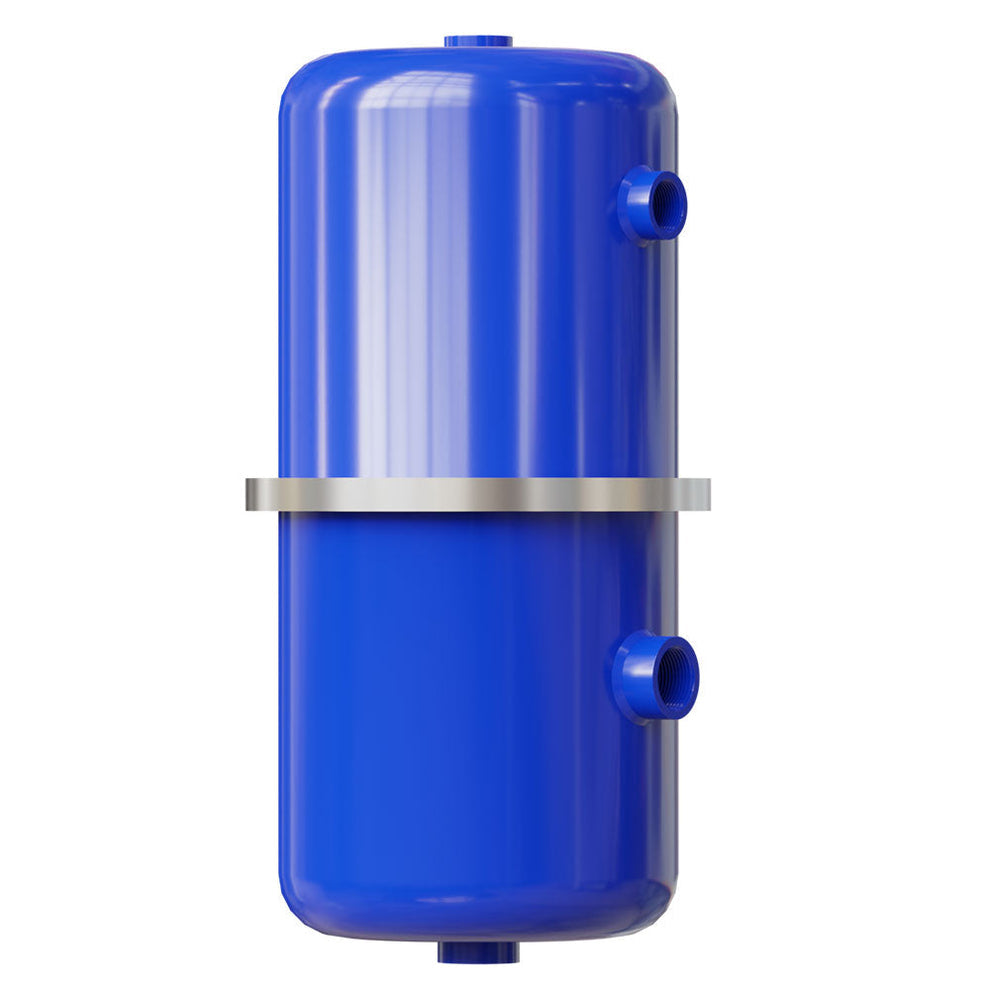

The Solberg LRS-19-150HC is a high-performance integrated liquid knockout and vacuum filtration system designed to protect vacuum pumps and process equipment from liquid carryover, moisture, aerosols, and fine particulate contamination. It combines liquid separation and inlet filtration in a single compact unit for improved efficiency and reduced system footprint.
This LRS Series unit features a 5-micron polyester filter element with 99%+ particulate removal efficiency, along with an integrated expansion chamber and baffle system that effectively separates liquids before they reach the pump. The rugged powder-coated carbon steel housing ensures long service life in demanding industrial environments.
Key Features
- Integrated liquid knockout + vacuum inlet filtration system (2-in-1 design)
- 5-micron polyester filter media with 99%+ efficiency
- Integrated expansion chamber and internal baffle for liquid separation
- High liquid/slurry holding capacity
- Transparent sight port for visual monitoring
- Durable powder-coated carbon steel construction
- Designed to prevent emulsification and protect vacuum pumps
- Compact design for integrated vacuum systems
- Low pressure drop for efficient operation
Specifications
- Model: LRS-19-150HC
- Connection Size: 1.5 in NPSC
- Function: Integrated liquid separator + inlet vacuum filter
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: ~100 SCFM
- Housing Material: Carbon steel (blue powder coated)
- Drain Port: 1 in NPSC
- Sight Port: 1 in NPSC
- Holding Capacity: ~1.5 gallons
- Operating Temperature: -15°F to 220°F
- Vacuum Service: Rough to medium vacuum applications
- Approx. Length: ~18 in
- Approx. Diameter: ~7.7 in
Applications
- Vacuum pump protection systems
- Chemical processing systems
- Pharmaceutical and food processing
- Chip and slurry handling systems
- Industrial vacuum filtration systems
- Pneumatic conveying systems
- Moisture and solvent separation applications
- Process air systems requiring liquid removal
The Solberg LRS-19-150HC provides reliable dual-stage protection by combining liquid separation and fine filtration in one compact system, improving vacuum reliability, reducing maintenance, and extending pump life in industrial applications.
