Product Description

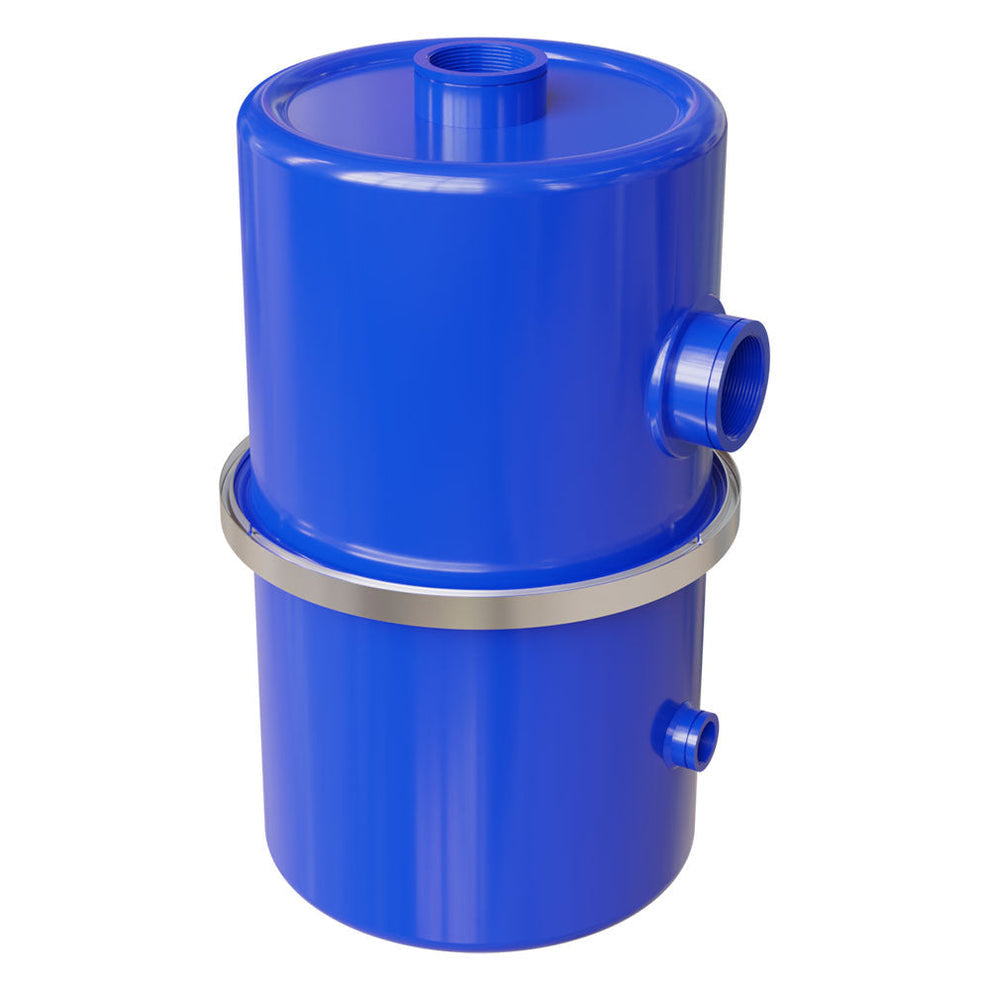

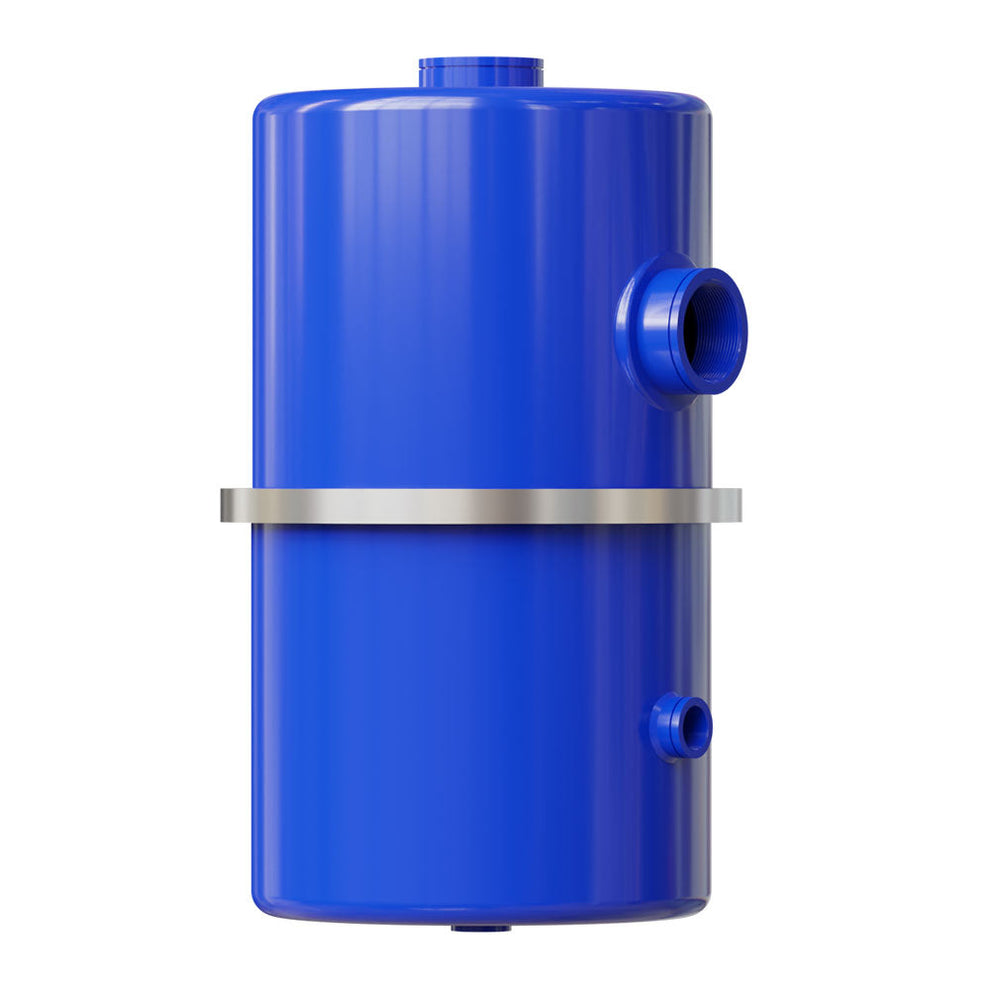

The Solberg LRS-237-200HC is a high-efficiency integrated liquid knockout and vacuum filtration system designed to protect vacuum pumps and process systems from liquid carryover, vapors, aerosols, and fine particulate contamination. It combines liquid separation and inlet filtration in a single compact unit to reduce footprint and improve system reliability.
This LRS Series system features a 5-micron polyester filter element with 99%+ filtration efficiency, along with an integrated expansion chamber and baffle system that effectively separates liquids before they reach the vacuum pump. Its rugged epoxy-coated carbon steel construction ensures durability in harsh industrial environments.
Key Features
- Integrated liquid knockout + vacuum inlet filtration system (2-in-1 design)
- 5-micron polyester filter media with 99%+ efficiency
- Integrated baffle and expansion chamber for liquid separation
- High liquid/slurry holding capacity (~2.5 gallons)
- Transparent sight port for visual monitoring
- Heavy-duty epoxy-coated carbon steel housing
- Designed to prevent emulsification and protect vacuum pumps
- Compact footprint for integrated vacuum systems
- Low pressure drop for efficient operation
Specifications
- Model: LRS-237-200HC
- Connection Size: 2 in NPSC
- Function: Integrated liquid separator + inlet vacuum filter
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: ~135 SCFM
- Housing Material: Epoxy-coated carbon steel
- Drain Port: 1 in NPSC
- Sight Port: 1 in NPSC
- Holding Capacity: ~2.5 gallons
- Operating Temperature: -15°F to 220°F
- Replacement Element: 237 series cartridge
Applications
- Vacuum pump protection systems
- Chemical processing systems
- Pharmaceutical and food processing
- Chip and slurry handling systems
- Industrial vacuum filtration systems
- Pneumatic conveying systems
- Moisture and solvent separation applications
- Process air systems requiring liquid removal
The Solberg LRS-237-200HC delivers reliable dual-stage protection by combining liquid separation and fine filtration in one compact system, improving vacuum performance, reducing maintenance, and extending equipment life in demanding industrial environments.
