Product Description

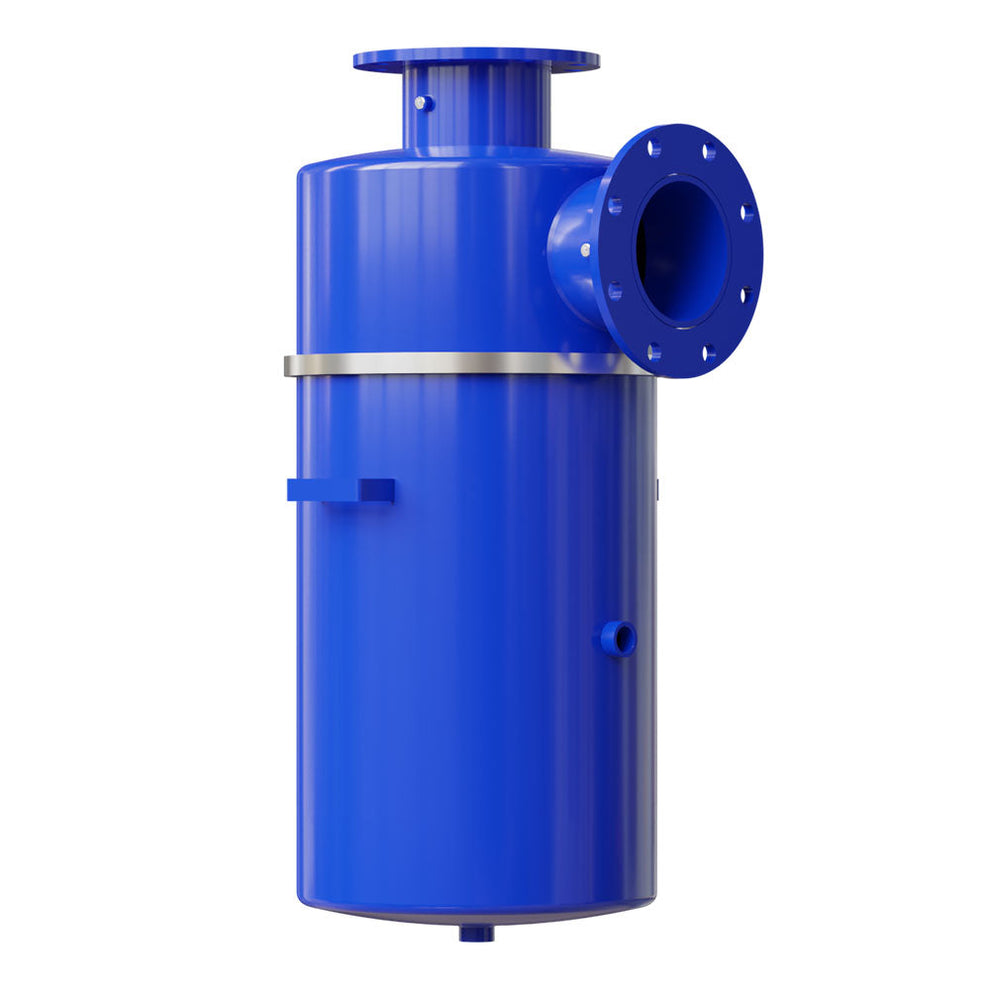

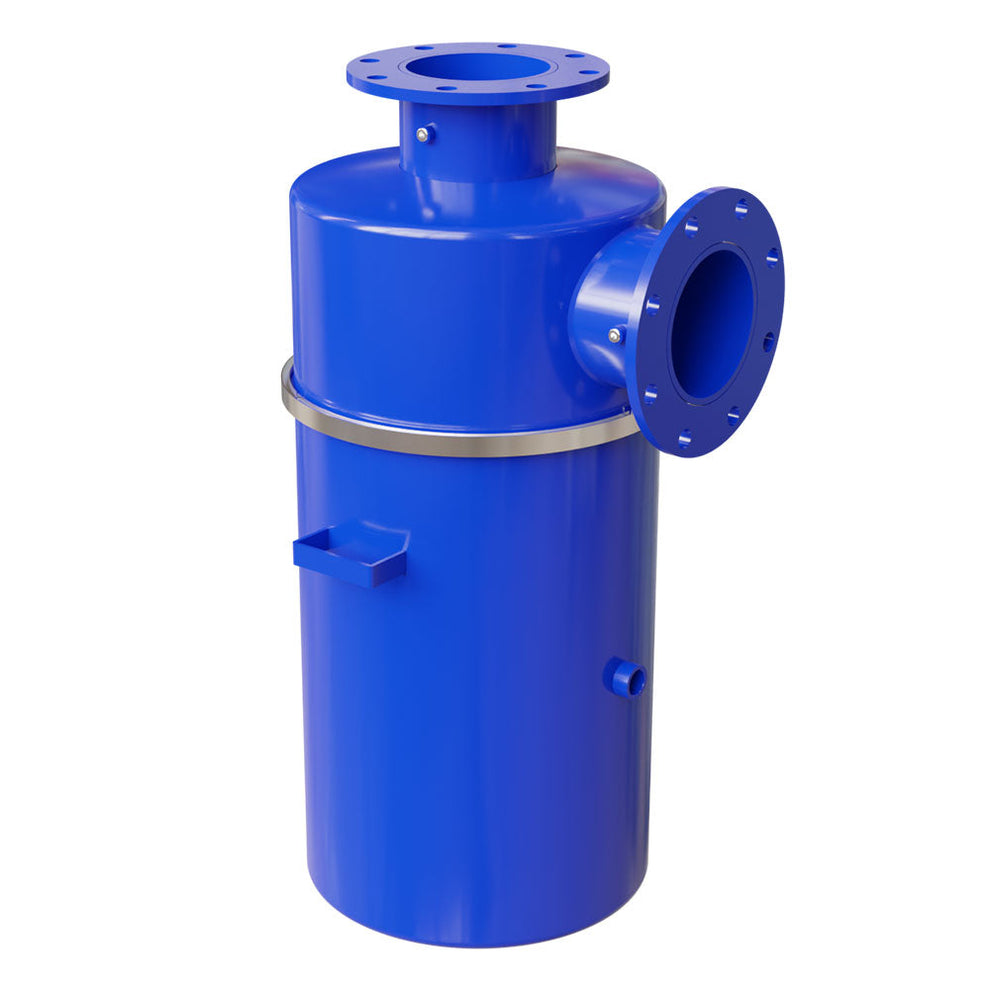

The Solberg LRS-275-600F is a high-capacity integrated liquid knockout and vacuum filtration system designed for large industrial vacuum applications. It combines liquid separation and fine filtration in a single heavy-duty unit to protect vacuum pumps, blowers, and process equipment from liquid carryover, aerosols, vapors, and fine particulate contamination.
This LRS Series system features a 5-micron polyester filter element with 99%+ efficiency, along with an integrated multi-stage separation chamber, baffle system, and expansion chamber. These components work together to efficiently remove liquids and solids before they reach the vacuum pump, improving reliability and reducing maintenance requirements.
Key Features
- Integrated liquid knockout + vacuum inlet filtration system (2-in-1 design)
- 6" ANSI flange inlet/outlet connections
- 5-micron polyester filter media with 99%+ efficiency
- High-flow capacity design up to ~830 SCFM
- Integrated baffle and expansion chamber for liquid separation
- SpinMeister® pre-separation technology (model dependent)
- Heavy-duty epoxy-coated carbon steel construction
- Large liquid/slurry holding capacity (~10+ gallons)
- 1" drain port and sight port for monitoring and maintenance
- Designed for continuous-duty industrial vacuum systems
Specifications
- Model: LRS-275-600F
- Connection Size: 6 in ANSI Flange
- Function: Integrated liquid separator + inlet vacuum filter
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: ~830 SCFM
- Housing Material: Epoxy-coated carbon steel
- Drain Port: 1 in NPSC
- Sight Port: 1 in NPSC
- Bowl Capacity: ~10.5 gallons
- Operating Temperature: -15°F to 220°F (continuous)
- Overall Length: ~39.4 in
- Outside Diameter: ~17.4 in
- Weight:** ~115 lb (approx.)
Applications
- Large-scale vacuum pump systems
- Chemical processing plants
- Pharmaceutical manufacturing systems
- Food processing industries
- Chip and semiconductor processing
- Pneumatic conveying systems
- Industrial liquid and vapor separation
- High-flow central vacuum systems
The Solberg LRS-275-600F delivers advanced multi-stage separation and filtration for high-capacity vacuum systems, ensuring superior pump protection, reduced downtime, and improved operational efficiency in demanding industrial environments.
