Solberg PSG476 Replacement Coalescing Filter Element – 0.3 Micron Oil Mist Removal Cartridge (HDL Series, ~1800 SCFM Class)

Product Description

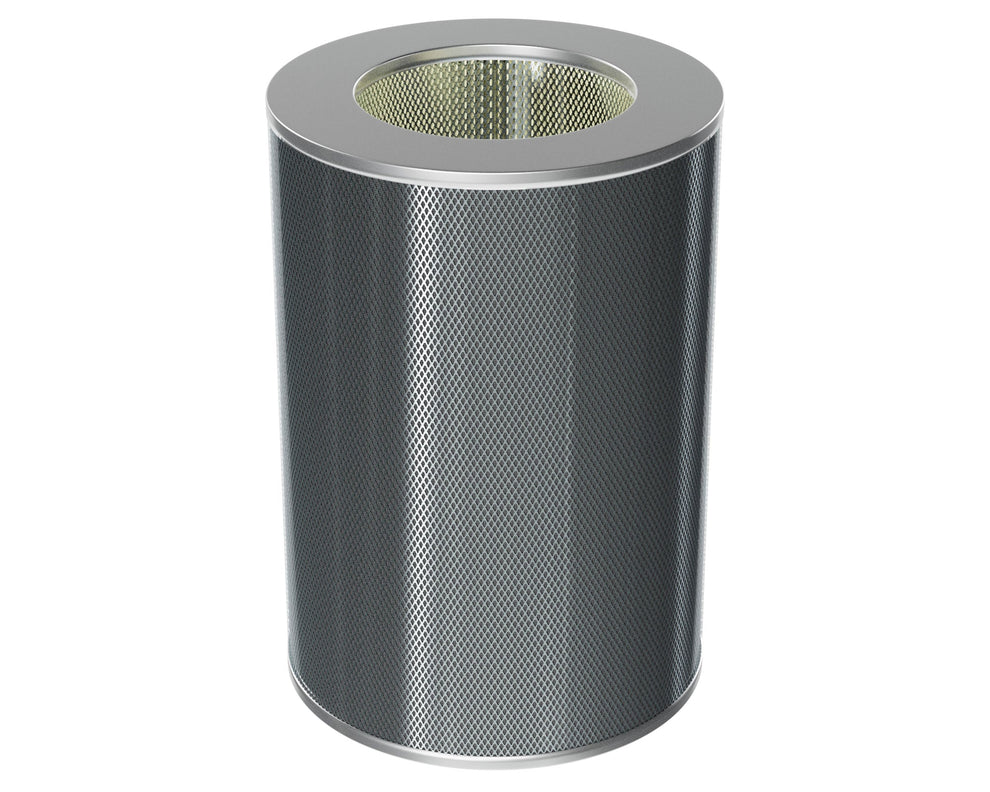

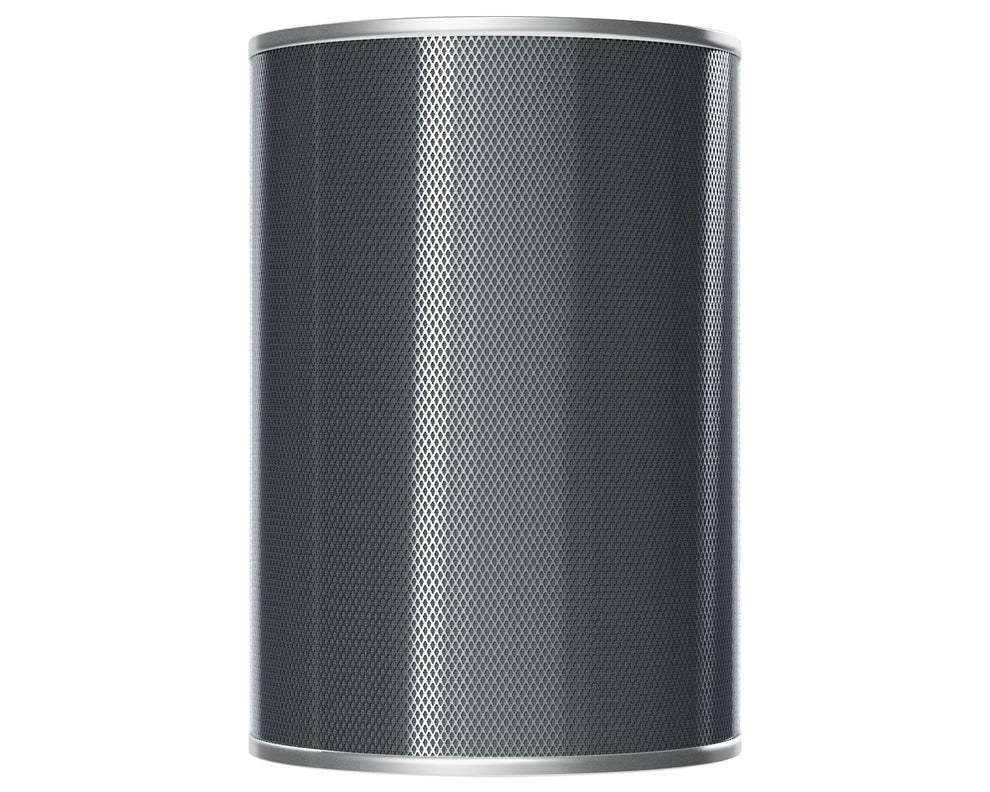

Solberg PSG476 Coalescing Filter Element

The Solberg PSG476 is a high-efficiency coalescing filter element designed for vacuum pump exhaust and oil mist separation systems. It is engineered to capture ultra-fine oil aerosols, mist, and smoke from oil-sealed vacuum pump discharge air.

This element uses advanced microglass and synthetic fiber media to achieve very high separation efficiency while maintaining low pressure drop. It is designed for large industrial systems requiring reliable oil mist removal and clean exhaust air.

Key Features

• High-efficiency coalescing filter element for oil mist removal
• 0.3 micron filtration rating
• 99.97% efficiency for aerosol and oil fog capture
• Glass fiber + synthetic media construction
• Large surface area pleated design for low pressure drop
• Designed for continuous-duty industrial exhaust systems

Specifications

• Model: PSG476
• Brand: Solberg
• Series: HDL Oil Mist Discharge Filter Series
• Filtration Rating: 0.3 micron
• Efficiency: 99.97%
• Maximum Flow Rate: ~1800 SCFM
• Media Type: Microglass and synthetic coalescing media
• Application: Vacuum pump exhaust oil mist separation

Applications

• Oil-sealed vacuum pump exhaust systems
• Industrial oil mist removal systems
• Vacuum coating and freeze drying systems
• Large industrial vacuum process systems
• Blower and compressor discharge filtration

Benefits

• Reduces oil emissions from exhaust air
• Improves workplace air quality and safety
• Enables oil recovery and reuse
• Reduces environmental contamination and maintenance costs

The Solberg PSG476 coalescing filter element delivers high-performance 0.3 micron oil mist separation with very high airflow capacity, making it suitable for large-scale industrial vacuum pump exhaust applications.
