Solberg PSG848 Replacement Coalescing Filter Element – 0.3 Micron Oil Mist Removal Cartridge (HDL Series)

Product Description

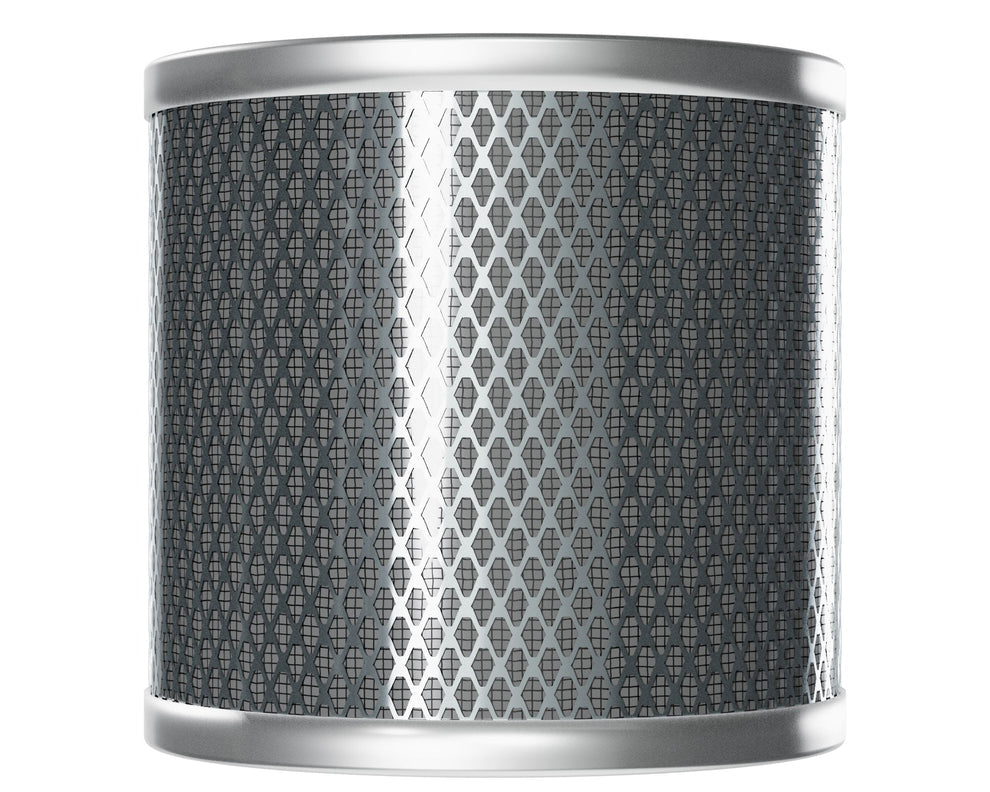

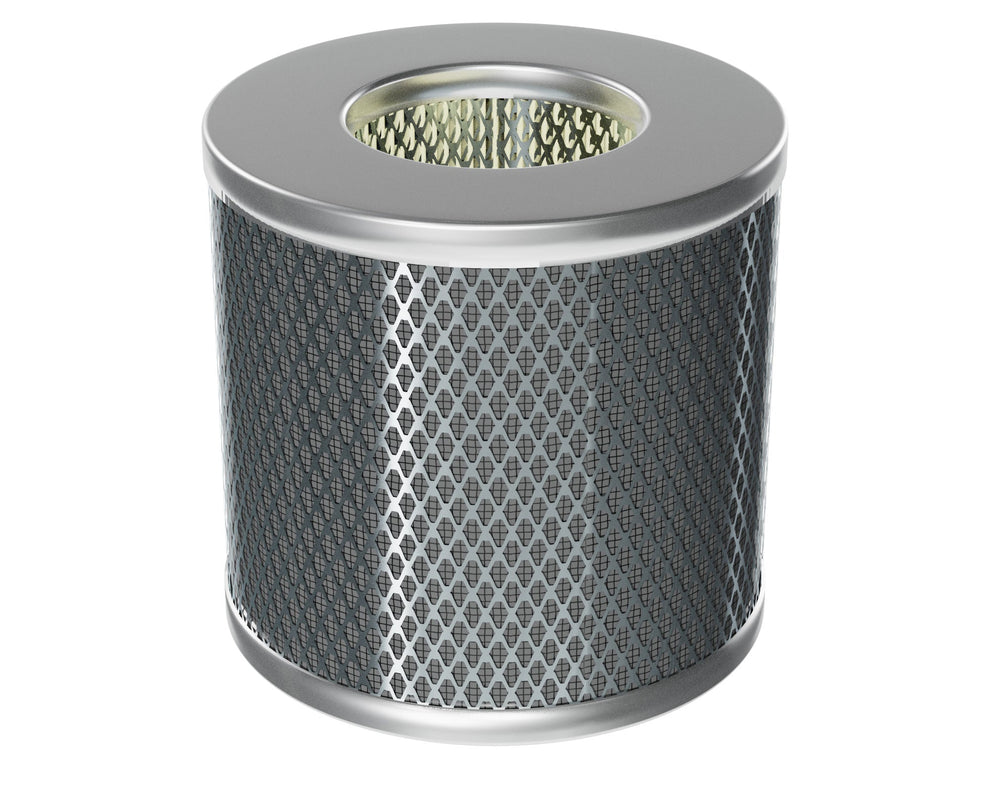

Solberg PSG848 Coalescing Filter Element

The Solberg PSG848 is a high-efficiency coalescing filter element designed for vacuum pump exhaust and oil mist separation applications. It is engineered to capture and remove fine oil aerosols, mist, and particulate contamination from exhaust air streams.

This element is part of the Solberg HDL series and uses advanced microglass and synthetic fiber media to achieve very high separation efficiency while maintaining low back pressure. It is commonly used in oil-sealed vacuum pump discharge systems.

Key Features

• High-efficiency coalescing filter element
• 0.3 micron filtration for ultra-fine oil mist capture
• 99.97% efficiency rating
• Microglass + synthetic fiber media construction
• Designed for low pressure drop operation
• Compatible with Solberg HDL series housings

Specifications

• Model: PSG848
• Brand: Solberg
• Series: HDL Discharge / Coalescing Filter Series
• Filtration Rating: 0.3 micron
• Efficiency: 99.97%
• Media Type: Microglass and synthetic fiber
• Application: Vacuum pump exhaust oil mist separation
• Maximum Flow Rate: ~50 CFM (depending on housing configuration)

Applications

• Oil-sealed vacuum pump exhaust systems
• Oil mist removal from industrial vacuum processes
• Blower and compressor discharge filtration
• Vacuum coating and freeze drying systems
• Industrial air/oil separation applications

Benefits

• Reduces oil emissions from vacuum pump exhaust
• Improves workplace air quality and safety
• Allows recovery of separated oil for reuse
• Reduces environmental contamination

The Solberg PSG848 coalescing filter element is engineered for high-performance oil mist separation, delivering reliable 0.3 micron filtration efficiency in demanding vacuum pump exhaust applications.
