Product Description

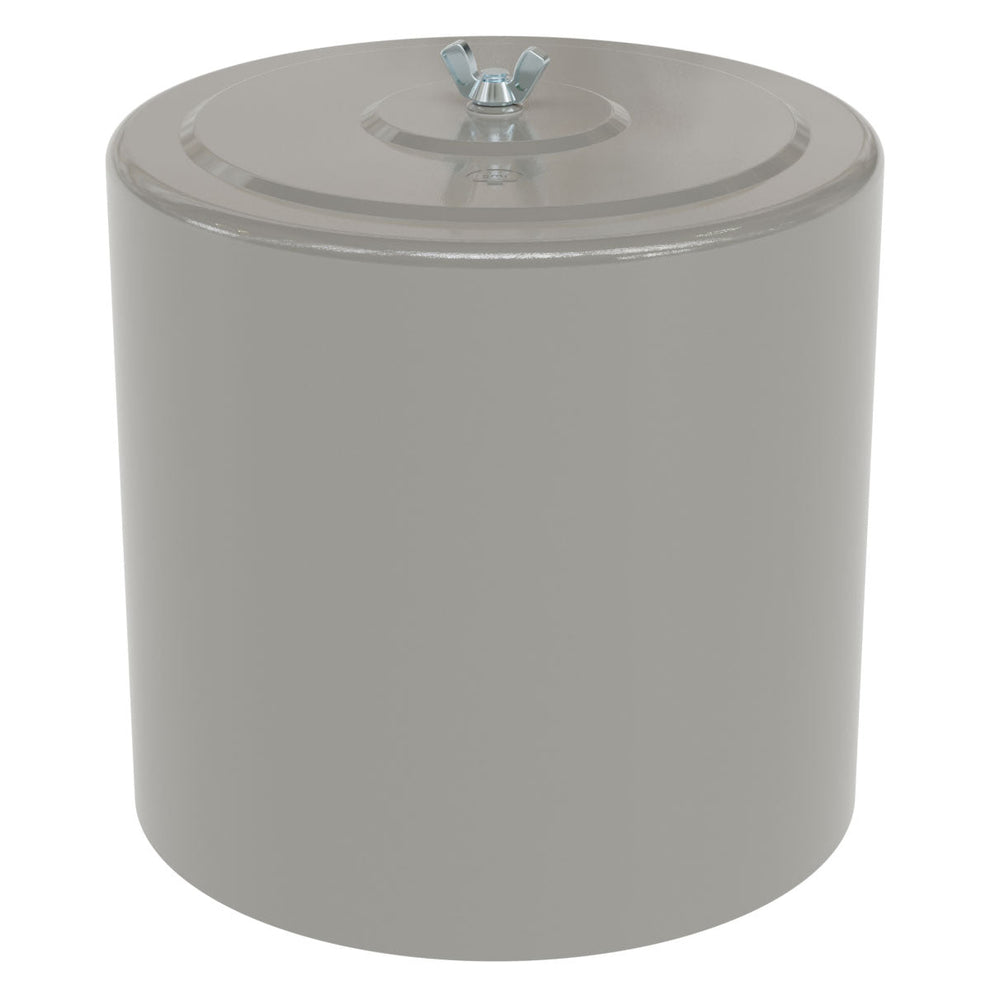

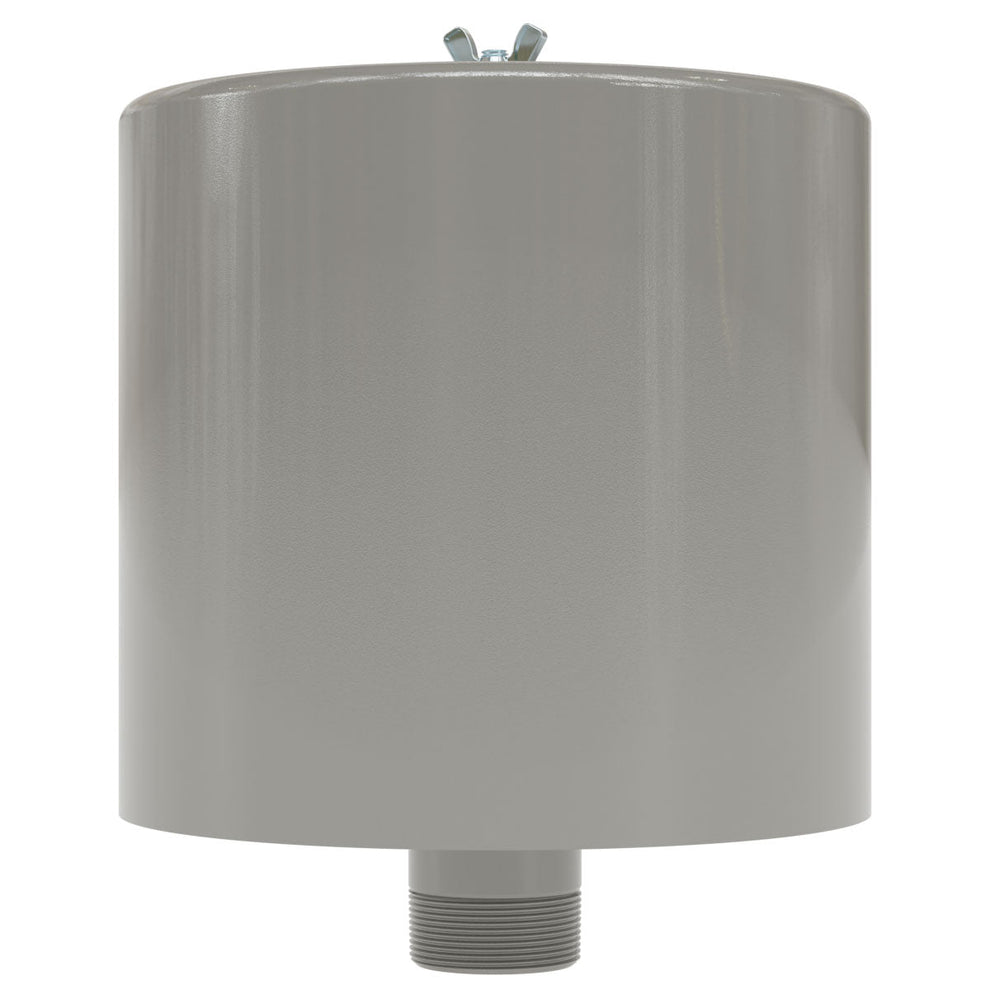

Solberg QB-230P-250 Enhanced Inlet Filter Silencer
The Solberg QB-230P-250 is a compact industrial inlet filter silencer designed for blowers, compressors, regenerative blowers, side channel blowers, and vacuum systems. Engineered with advanced Quiet Band silencing technology and a durable carbon steel weatherhood, this filter silencer delivers efficient particulate filtration and superior noise attenuation for industrial air intake applications.
Key Features
- Enhanced inlet filter silencer with Quiet Band weatherhood technology
- Paper filter media with 99%+ filtration efficiency to 2 micron
- Advanced tubular silencing system for maximum sound attenuation
- Integrated internal center tubular silencer for improved acoustic control
- Fully drawn carbon steel weatherhood helps prevent rust and vibration damage
- Durable baked enamel gray finish for industrial durability
- Low pressure drop airflow design for optimized system efficiency
- Multiple silencing tubes positioned to maximize attenuation and airflow
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
- Compact footprint ideal for blower packages and restricted installations
Applications
- Centrifugal blowers
- Regenerative blowers
- Side channel blowers
- Industrial compressors
- Vacuum lifters
- Regenerative vacuum pumps
- Pneumatic conveying systems
- Wastewater aeration systems
- Industrial air intake systems
- Manufacturing and processing equipment
Technical Specifications
- Model: QB-230P-250
- Brand: Solberg
- Connection Size: 2.5 Inch
- Connection Type: MPT
- Filter Media: Paper
- Filtration Efficiency: 99%+ to 2 micron
- Assembly SCFM Rating: 195 SCFM
- Element SCFM Rating: 300 SCFM
- Housing Material: Carbon Steel
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Approximate Weight: 16 lbs
- Number of Silencing Tubes: 9
- Replacement Element: 230P
- Color: Gray
Benefits
The Solberg QB-230P-250 combines high-efficiency intake filtration with advanced sound suppression technology to improve equipment protection, reduce operational noise, and optimize airflow performance. Its compact industrial-grade design makes it an excellent solution for blower and compressor systems requiring dependable filtration and acoustic control.
