Product Description

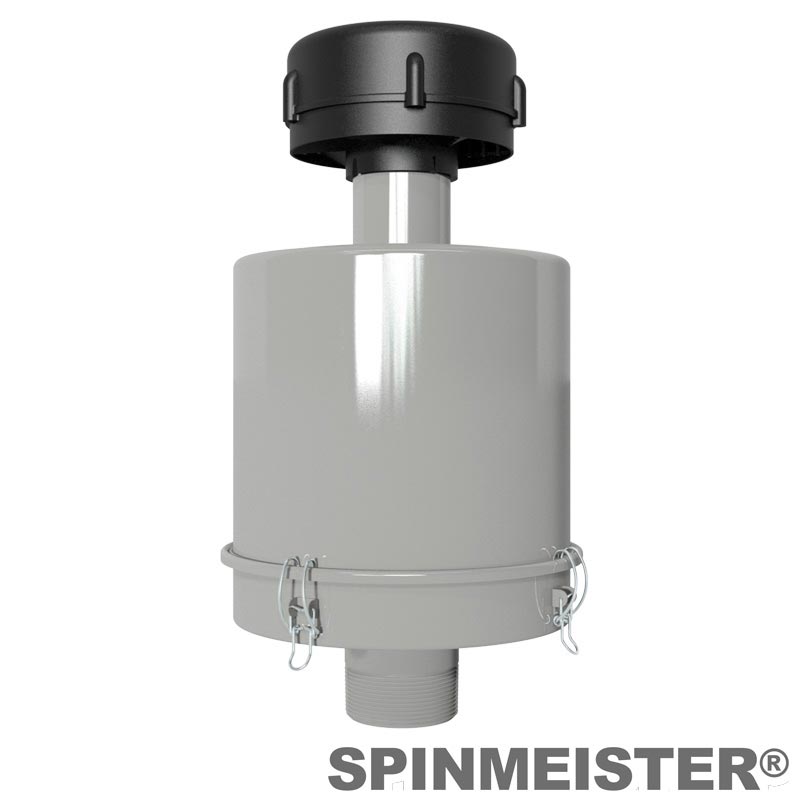

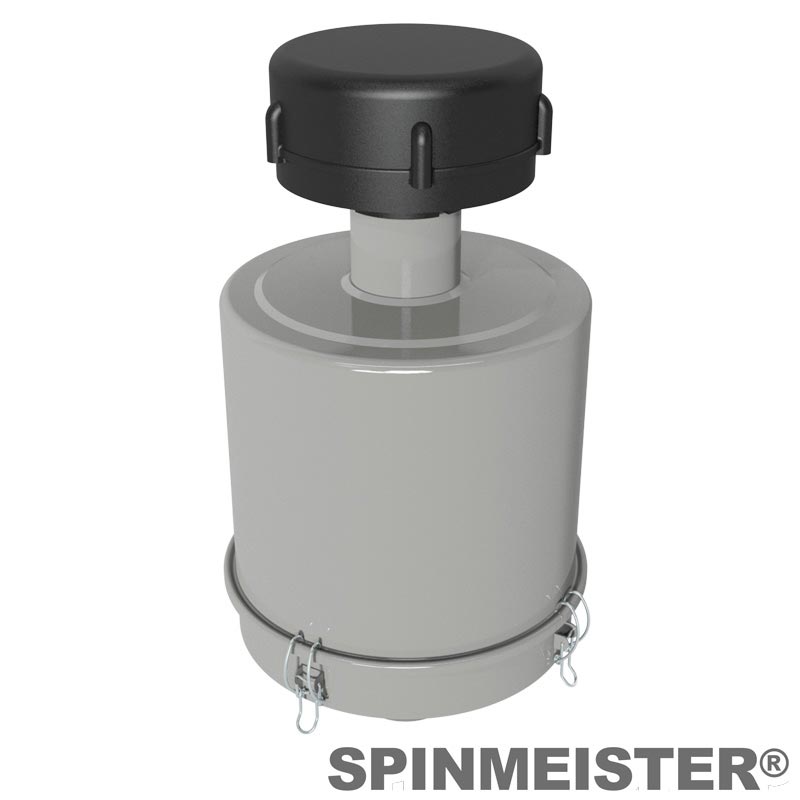

Solberg SM3-234P-400 SpinMeister Extreme Duty Inlet Filter
The Solberg SM3-234P-400 SpinMeister® Extreme Duty Inlet Filter is engineered for high-capacity intake filtration in severe industrial environments with elevated dust and airborne particulate contamination. Featuring a dual-stage filtration system, this rugged inlet filter combines a SpinMeister® centrifugal pre-cleaner with a high-efficiency paper filter element to provide superior protection for vacuum pumps, compressors, blowers, and industrial air systems.
The integrated SpinMeister® pre-cleaner uses centrifugal separation technology to remove larger airborne contaminants before they reach the primary filter media, helping extend filter service life, reduce maintenance requirements, and maintain consistent airflow performance in demanding industrial applications.
Key Features
- Dual-stage SpinMeister® centrifugal pre-cleaner filtration system
- High-efficiency paper filter media rated to 2 micron
- 4" MPT threaded connection
- Maximum airflow capacity up to 250 SCFM
- 99%+ filtration efficiency at 2 microns
- 85% pre-cleaner efficiency at 15 microns
- Corrosion-resistant gray powder-coated carbon steel housing
- Durable molded fiber-filled composite SpinMeister® assembly
- Heavy-duty seamless housing construction
- Continuous operating temperature from -15°F to 220°F
Applications
- Vacuum pumps and vacuum systems
- Regenerative blowers
- Piston compressors
- Screw compressors
- Construction and contractor equipment
- Vacuum coating systems
- Industrial air intake filtration
- Dust-heavy manufacturing environments
Technical Specifications
- Model: SM3-234P-400
- Series: SM Series SpinMeister®
- Connection Size: 4" MPT
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ @ 2 Micron
- Pre-cleaner Efficiency: 85% @ 15 Micron
- Maximum Flow Rating: 250 SCFM
- Outside Diameter: 11"
- Overall Height: 19.75"
- Housing Material: Powder-Coated Carbon Steel
- Replacement Element: 234P™ Paper Element
- Operating Temperature Range: -15°F to 220°F
The Solberg SM3-234P-400 delivers dependable high-capacity inlet filtration performance for industrial systems operating in harsh and dusty environments, helping protect critical equipment while minimizing downtime and maintenance costs.
