Product Description

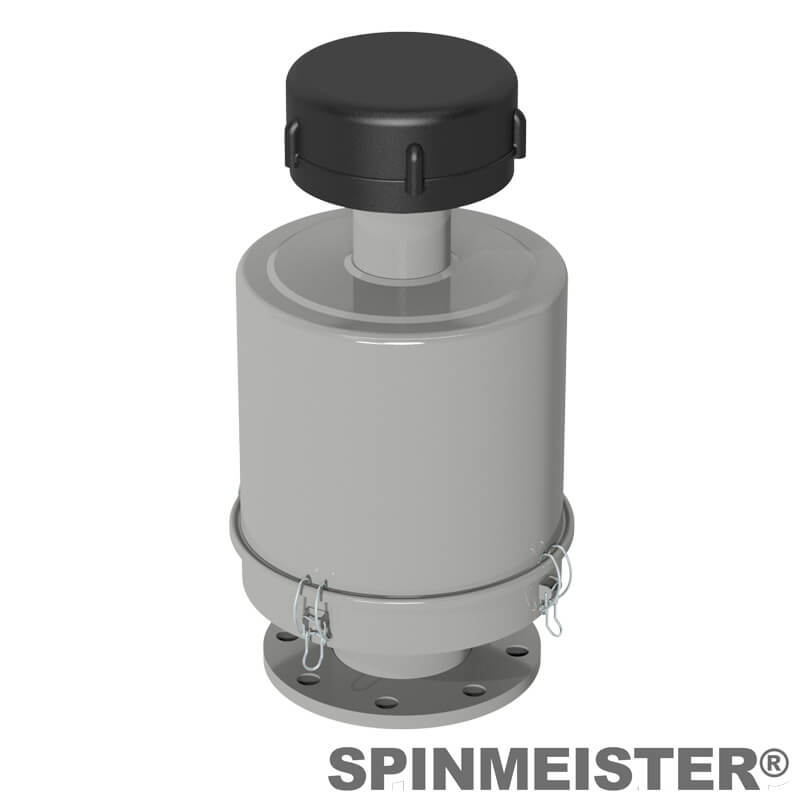

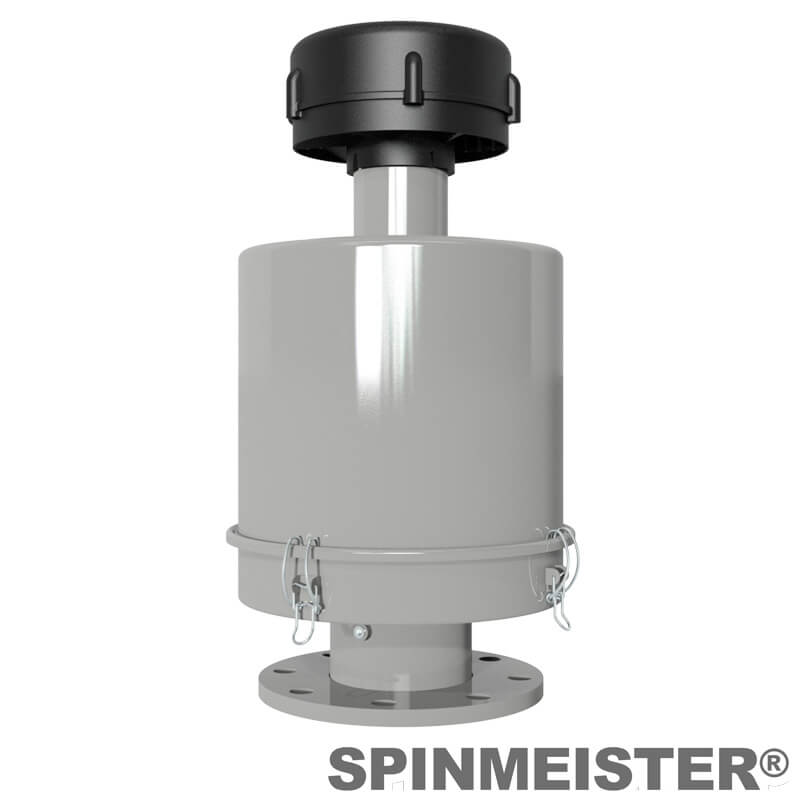

Solberg SM3-234P-400F SpinMeister Extreme Duty Inlet Filter
The Solberg SM3-234P-400F SpinMeister® Extreme Duty Inlet Filter is engineered for high-capacity intake filtration in harsh industrial environments with elevated dust and airborne particulate contamination. Featuring a dual-stage filtration system, this heavy-duty inlet filter combines a SpinMeister® centrifugal pre-cleaner with a high-efficiency paper filter element to deliver dependable protection for vacuum pumps, compressors, blowers, and industrial air systems.
The integrated SpinMeister® pre-cleaner uses centrifugal separation technology to remove larger airborne contaminants before they reach the primary filter media, helping extend filter life, reduce maintenance requirements, and maintain consistent airflow performance in demanding industrial applications.
Key Features
- Dual-stage SpinMeister® centrifugal pre-cleaner filtration system
- High-efficiency paper filter media rated to 2 micron
- 4" flange connection
- Maximum airflow capacity up to 250 SCFM
- 99%+ filtration efficiency at 2 microns
- 85% pre-cleaner efficiency at 15 microns
- Corrosion-resistant gray powder-coated carbon steel housing
- Durable molded fiber-filled composite SpinMeister® assembly
- Heavy-duty seamless housing construction
- Continuous operating temperature from -15°F to 220°F
Applications
- Vacuum pumps and vacuum systems
- Regenerative blowers
- Piston compressors
- Screw compressors
- Industrial air intake filtration
- Dust-heavy manufacturing environments
- Vacuum coating systems
- Bulk material handling systems
Technical Specifications
- Model: SM3-234P-400F
- Series: SM Series SpinMeister®
- Connection Type: 4" Flange
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ @ 2 Micron
- Pre-cleaner Efficiency: 85% @ 15 Micron
- Maximum Flow Rating: 250 SCFM
- Housing Material: Powder-Coated Carbon Steel
- Replacement Element: 234P™ Paper Element
- Operating Temperature Range: -15°F to 220°F
The Solberg SM3-234P-400F provides reliable high-capacity inlet filtration performance for industrial systems operating in severe and dusty environments, helping protect critical equipment while minimizing downtime and maintenance costs.
