Product Description

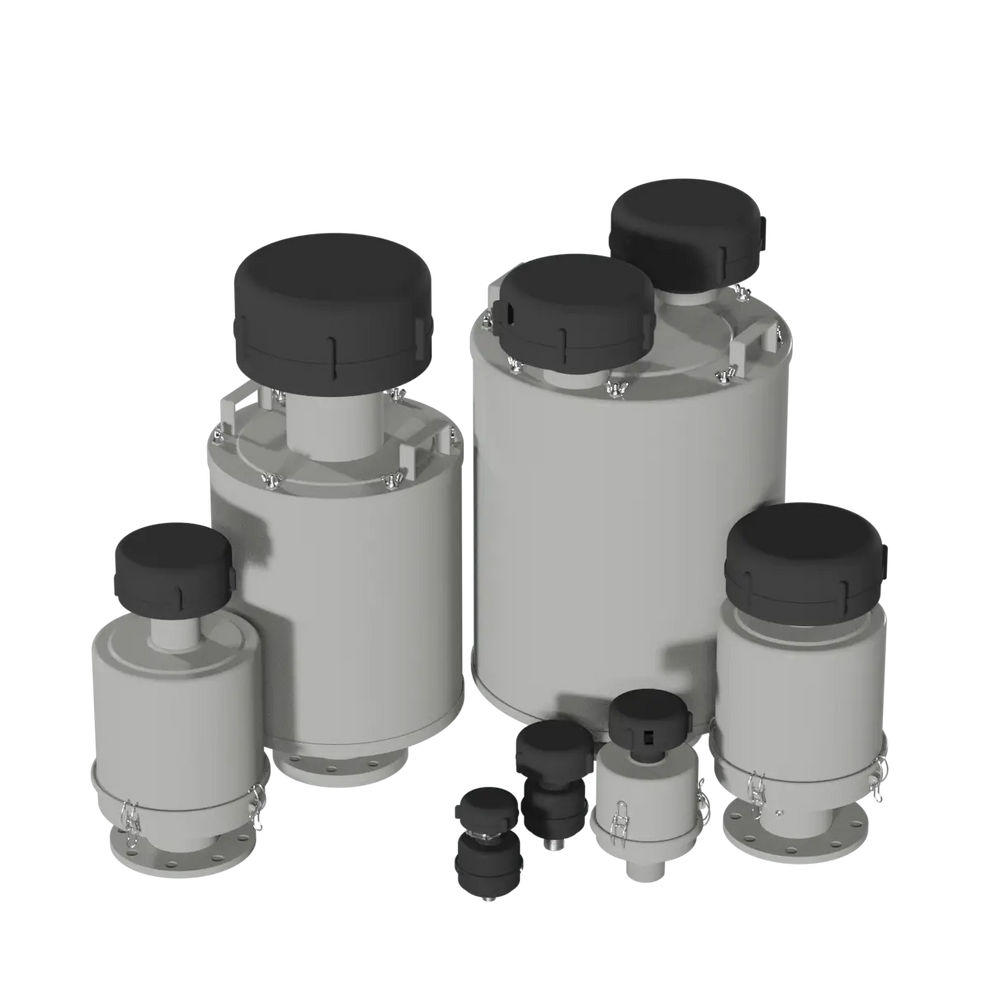

Solberg SM4-234P-300 SpinMeister Extreme Duty Inlet Filter
The Solberg SM4-234P-300 SpinMeister® Extreme Duty Inlet Filter is designed for high-capacity intake filtration in severe industrial environments with heavy dust and airborne particulate contamination. Featuring a dual-stage filtration system, this industrial-grade inlet filter combines a SpinMeister® centrifugal pre-cleaner with a high-efficiency paper filter element to provide superior protection for vacuum pumps, compressors, blowers, and industrial air handling systems.
The integrated SpinMeister® pre-cleaner uses centrifugal separation technology to remove larger contaminants before they reach the primary filter media, helping extend filter service life, reduce maintenance requirements, and maintain optimal airflow performance in demanding operating conditions.
Key Features
- Dual-stage SpinMeister® centrifugal pre-cleaner filtration system
- High-efficiency paper filter media rated to 2 micron
- 3" MPT threaded connection
- Maximum airflow capacity up to 300 SCFM
- 99%+ filtration efficiency at 2 microns
- 85% pre-cleaner efficiency at 15 microns
- Corrosion-resistant gray powder-coated carbon steel housing
- Durable molded fiber-filled composite SpinMeister® assembly
- Heavy-duty seamless housing construction
- Continuous operating temperature from -15°F to 220°F
Applications
- Vacuum pumps and vacuum systems
- Regenerative blowers
- Piston compressors
- Screw compressors
- Construction and contractor equipment
- Vacuum coating systems
- Industrial air intake filtration
- Dust-heavy manufacturing environments
Technical Specifications
- Model: SM4-234P-300
- Series: SM Series SpinMeister®
- Connection Size: 3" MPT
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+ @ 2 Micron
- Pre-cleaner Efficiency: 85% @ 15 Micron
- Maximum Flow Rating: 300 SCFM
- Housing Material: Powder-Coated Carbon Steel
- Outside Diameter: 11"
- Overall Height: 19.625"
- Replacement Element: 234P™ Paper Element
- Operating Temperature Range: -15°F to 220°F
The Solberg SM4-234P-300 delivers reliable high-capacity inlet filtration performance for industrial systems operating in harsh and dusty conditions, helping protect critical equipment while minimizing downtime and maintenance costs.
