Product Description

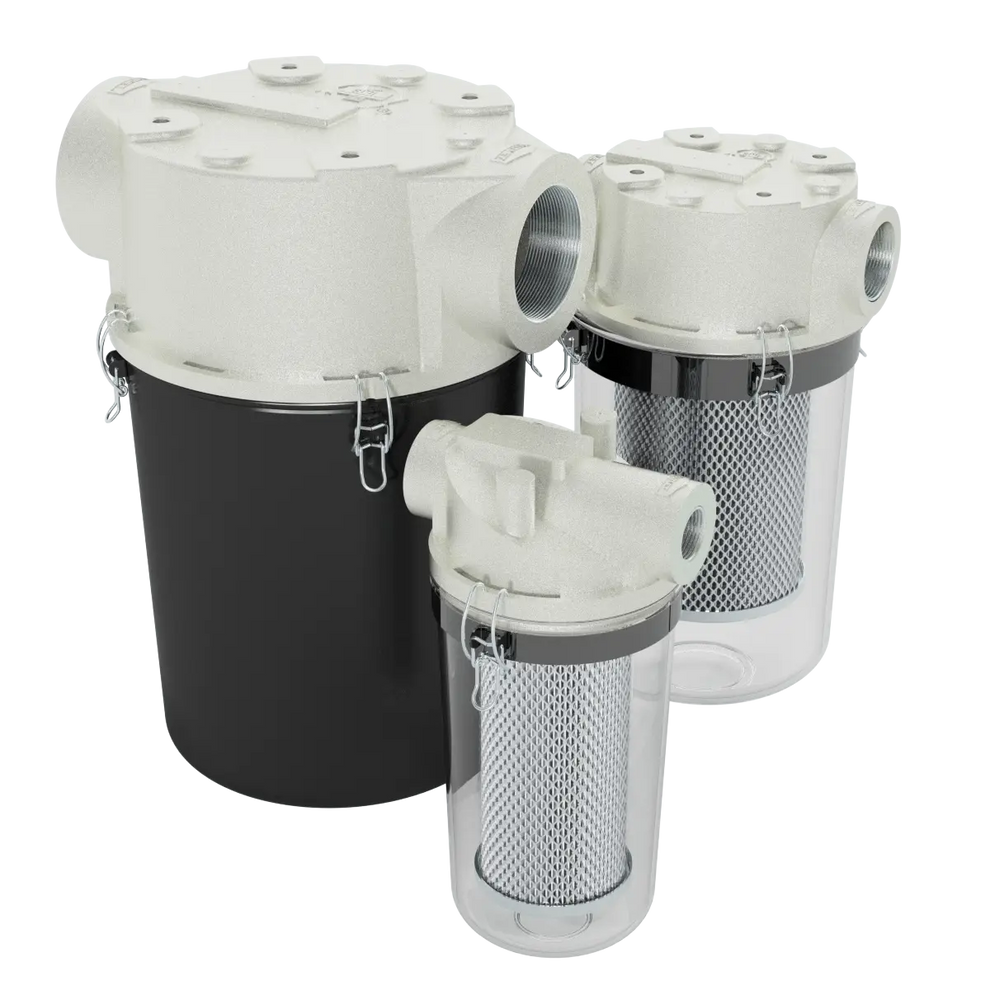

The Solberg ST-851/1-200C is a high-efficiency inline T-style inlet vacuum filter engineered to protect vacuum pumps and industrial vacuum systems from harmful contaminants and particulate intrusion. Featuring a durable see-through polycarbonate bucket and a compact straight-through design, this filter delivers reliable filtration performance while simplifying maintenance and visual inspection.
Designed for medium vacuum applications, the ST-851/1-200C utilizes a 5-micron polyester filter element with 99% filtration efficiency. The inlet-above-element configuration helps extend filter life and maintenance intervals while maintaining excellent airflow performance up to 175 CFM.
Key Features
- Inline T-style inlet vacuum filter design
- 5-micron polyester filter media
- 99% particulate removal efficiency
- Transparent shatter-resistant polycarbonate bucket
- Corrosion-resistant cast aluminum top
- Compact design for restricted installation spaces
- Integrated baffle design for improved filtration performance
- Easy visual inspection and maintenance access
- Low pressure drop for efficient airflow
Specifications
- Model: ST-851/1-200C
- Connection Size: 2 in
- Connection Type: FNPT / NPSC
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%
- Maximum Air Flow: 175 CFM
- Housing Material: Carbon Steel
- Head Material: Cast Aluminum
- Bucket Material: Polycarbonate
- Outside Diameter: 9 in
- Overall Height: 12-3/4 in
- Operating Temperature Range: -15°F to 220°F
- Pressure Drop: 37 to 50 mbar
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Vacuum packaging equipment
- Woodworking operations
- Paper processing facilities
- Factory automation systems
- Cement and ash handling
- Glass and ceramic vacuum applications
- Wastewater aeration systems
- Remote compressor installations
The Solberg ST-851/1-200C vacuum filter provides dependable industrial filtration performance with durable construction, high airflow capacity, and efficient contaminant removal for demanding vacuum and intake applications.
