Product Description

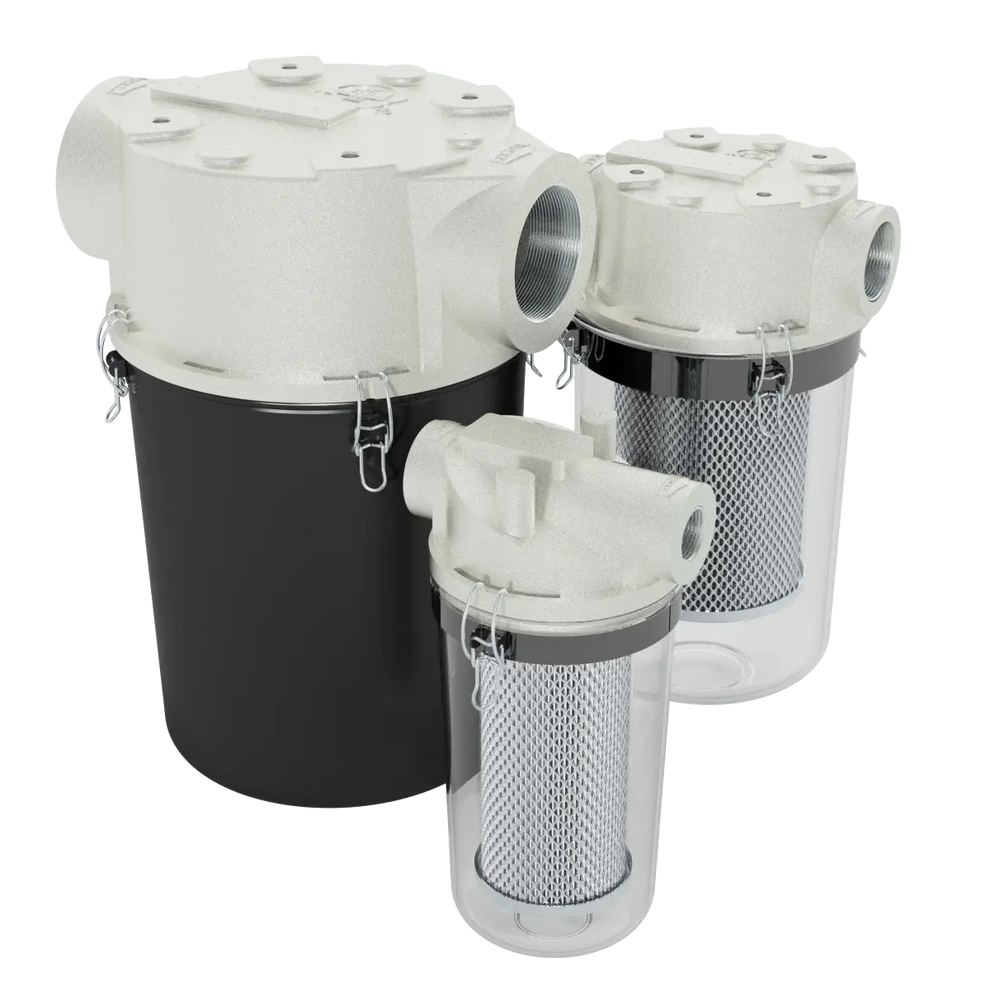

The Solberg ST-896-125C is a compact inline T-style vacuum inlet filter designed to protect vacuum pumps, compressors, and industrial systems from fine particulate contamination. It is widely used in medium-flow vacuum applications where high-efficiency filtration and compact installation are required.
This ST Series filter uses a 2-micron paper filter element with 99%+ efficiency, delivering excellent fine dust removal performance. The transparent polycarbonate bowl allows easy visual inspection, while the cast aluminum head with integrated baffle design ensures stable airflow and long service life.
Key Features
- Inline T-style vacuum inlet filter design
- 1.25" NPSC connection size
- 2-micron paper filter element for fine filtration
- 99%+ particulate removal efficiency
- Transparent polycarbonate see-through bowl
- Cast aluminum head with integrated baffle system
- Compact design for space-constrained installations
- Easy maintenance and quick element replacement
- Designed for medium vacuum applications
Specifications
- Model: ST-896-125C
- Connection Size: 1.25 in NPSC
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Flow Capacity: ~60–102 SCFM (depending on conditions)
- Housing Material: Cast aluminum head
- Bowl Material: Polycarbonate (ST clear bucket)
- Operating Temperature: -15°F to 220°F
- Pressure Drop (change-out): 37–50 mbar over initial ?P
- Mounting: Integrated bracket taps for installation
Applications
- Vacuum pump inlet protection
- Cement and ash handling systems
- Woodworking dust collection
- Pneumatic conveying systems
- Paper processing industries
- Central vacuum systems
- Factory automation equipment
- General industrial air filtration systems
The Solberg ST-896-125C provides reliable fine particulate protection in industrial vacuum systems, improving equipment life, reducing maintenance, and ensuring stable system performance.
