Product Description

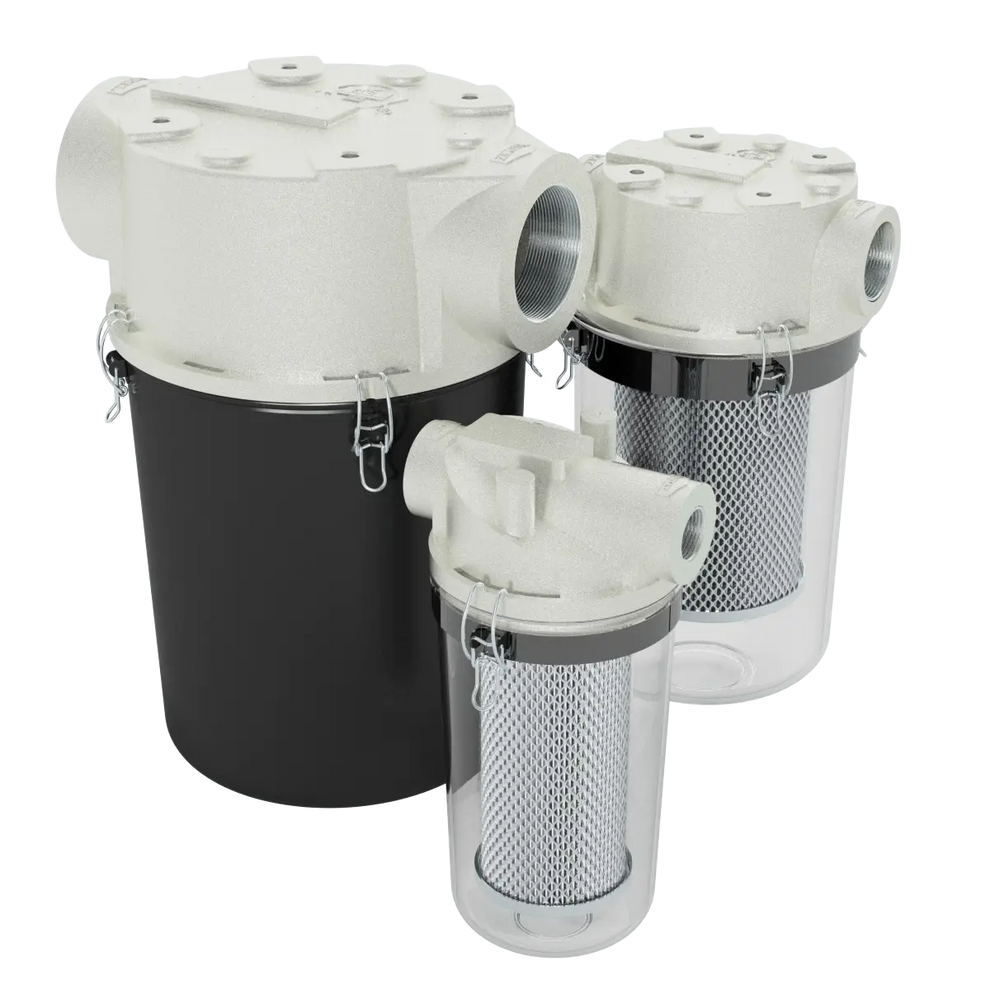

The Solberg ST-896-150C is a high-efficiency inline T-style vacuum inlet filter designed to protect vacuum pumps, compressors, and industrial air systems from fine particulate contamination. It is commonly used in medium-to-high flow vacuum applications requiring compact installation and reliable filtration performance.
This ST Series filter uses a 2-micron paper filter element with 99%+ efficiency, delivering superior fine dust removal. The transparent polycarbonate bowl allows easy visual inspection of contamination buildup, while the cast aluminum head with integrated baffle improves airflow stability and extends filter life.
Key Features
- Inline T-style vacuum inlet filter design
- 1.5" NPSC connection size
- 2-micron paper filter element for fine filtration
- 99%+ particulate removal efficiency
- Transparent polycarbonate see-through bowl
- Cast aluminum head with internal baffle design
- Compact design for industrial installations
- Easy maintenance and quick element replacement
- Designed for medium vacuum systems
Specifications
- Model: ST-896-150C
- Connection Size: 1.5 in NPSC
- Filter Media: Paper
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Flow Capacity: ~80 SCFM (approx.)
- Housing Material: Cast aluminum head
- Bowl Material: Transparent polycarbonate (ST clear bucket)
- Operating Temperature: -15°F to 220°F
- Pressure Drop (change-out): 15–20 in H?O over initial ?P
- Mounting: Inline T-style configuration
Applications
- Vacuum pump inlet protection
- Cement and ash handling systems
- Woodworking dust collection
- Pneumatic conveying systems
- Paper processing industries
- Central vacuum systems
- Factory automation equipment
- General industrial air filtration systems
The Solberg ST-896-150C delivers reliable fine particulate filtration for industrial vacuum systems, improving equipment protection, reducing maintenance, and extending vacuum pump life.
