Product Description

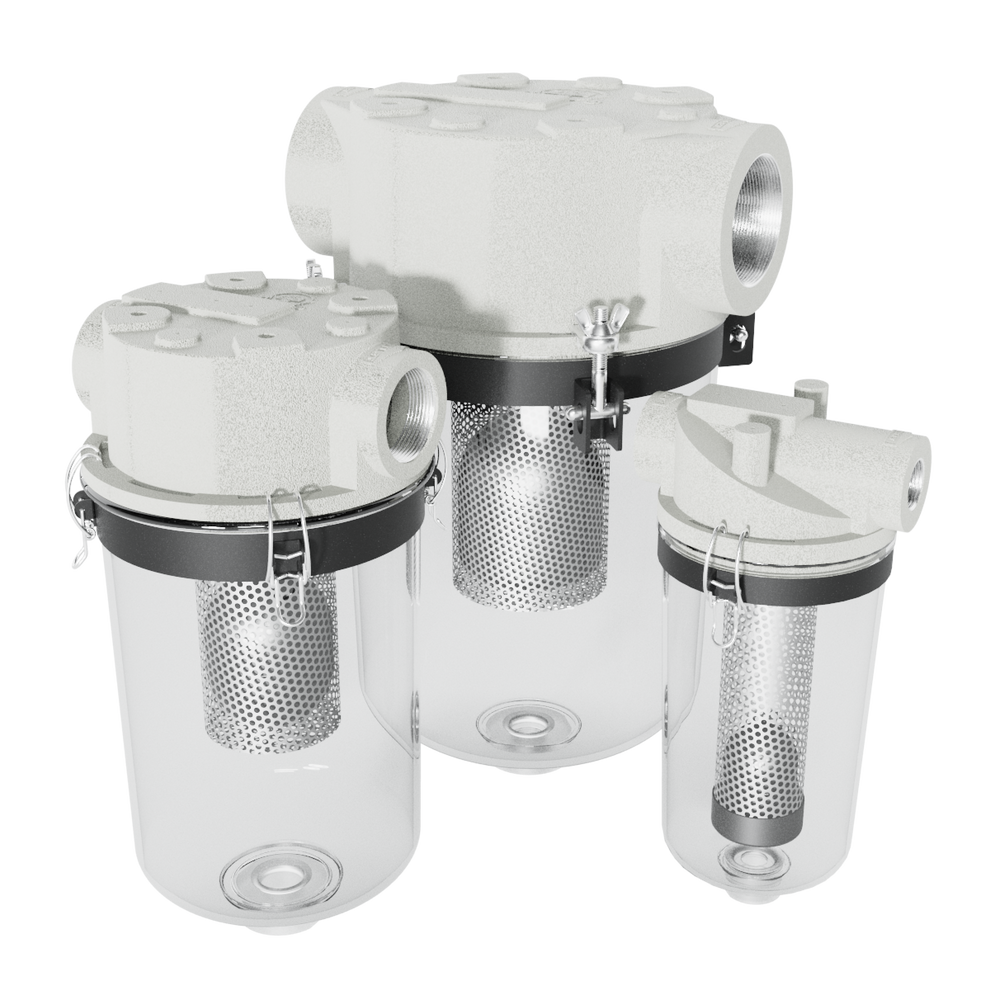

The Solberg STS-125C is an inline straight-through vacuum liquid separator designed to protect vacuum pumps and systems from liquid carryover, moisture, and debris. It is engineered for medium vacuum applications where reliable liquid knock-out and system protection are critical.
This STS series unit features a high-impact transparent polycarbonate bowl for easy visual inspection and a stainless steel float shut-off mechanism that helps prevent liquid overflow into the vacuum system. An internal baffle design improves separation efficiency, ensuring cleaner airflow and better equipment protection.
Key Features
- Inline straight-through vacuum liquid separator design
- 1.25" NPSC connection
- Transparent polycarbonate drop-down bowl for easy monitoring
- Stainless steel float shut-off for overflow protection
- Integrated internal baffle for improved liquid separation
- Cast aluminum corrosion-resistant head
- Compact design for installation in tight spaces
- Designed for vacuum pump protection and extended system life
- Easy maintenance and quick inspection access
Specifications
- Model: STS-125C
- Connection Size: 1.25 in NPSC
- Flow Capacity: ~40 CFM
- Type: Inline Straight-Through Liquid Separator
- Housing Material: Cast Aluminum
- Bowl Material: Polycarbonate (transparent)
- Float Mechanism: Stainless steel shut-off system
- Operating Temperature: -15°F to 220°F
- Vacuum Service: Medium vacuum applications
- Drain Port: Integrated drain design
Applications
- Vacuum pump protection systems
- Soil vapor extraction systems
- Food processing equipment
- Industrial vacuum lines
- Moisture and condensate removal systems
- Pneumatic conveying systems
- General industrial air-liquid separation
The Solberg STS-125C provides reliable liquid separation performance with a compact footprint, helping prevent vacuum system damage and improving operational efficiency in industrial environments.
