Product Description

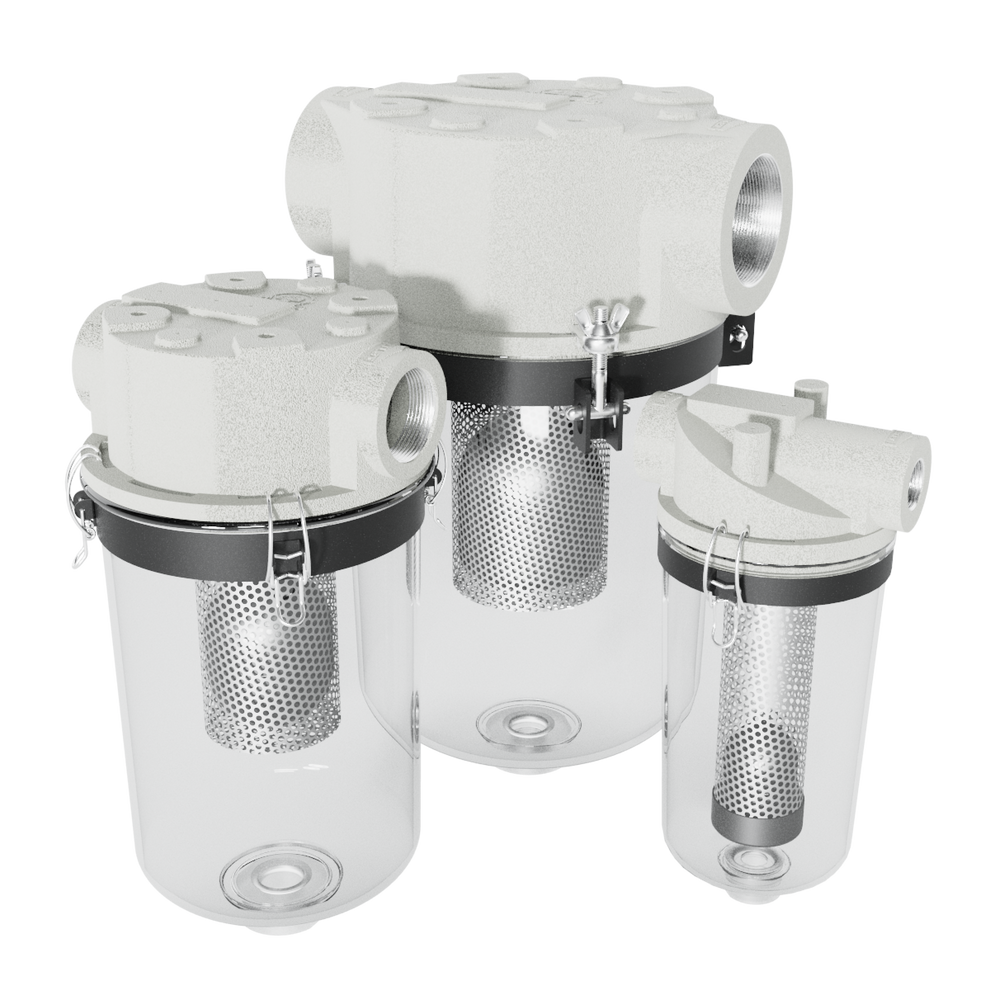

The Solberg STS-150C is a high-performance inline straight-through vacuum liquid separator designed to protect vacuum pumps and systems from liquid carryover, moisture, and particulate contamination. It is engineered for medium-duty industrial vacuum applications where reliable liquid removal is critical for system protection and uptime.
This STS Series separator features a transparent polycarbonate drop-down bowl for easy visual inspection and a stainless steel float shutoff mechanism that prevents liquid overflow from entering downstream equipment. The internal baffle design improves separation efficiency, ensuring cleaner airflow and improved pump performance.
Key Features
- Inline straight-through vacuum liquid separator design
- 1.5" NPSC inlet/outlet connection
- High-impact transparent polycarbonate bowl
- Stainless steel float shutoff for overflow protection
- Integrated internal baffle system for improved separation
- Cast aluminum corrosion-resistant head
- Compact design for space-constrained installations
- Designed for vacuum pump protection and extended service life
- Easy maintenance and visual inspection capability
Specifications
- Model: STS-150C
- Connection Size: 1.5 in NPSC
- Flow Capacity: ~60–80 CFM
- Type: Inline Straight-Through Liquid Separator
- Housing Material: Cast Aluminum
- Bowl Material: Polycarbonate (see-through)
- Float Mechanism: Stainless steel emergency shutoff
- Drain Port: 1 in
- Operating Temperature: -15°F to 220°F
- Max Operating Pressure: 2 psi
- Overall Length: ~14.25 in
- Outside Diameter: ~7 in
Applications
- Vacuum pump protection systems
- Soil vapor extraction systems
- Food processing equipment
- Industrial vacuum lines
- Moisture and condensate removal systems
- Pneumatic conveying systems
- Chip and dust processing systems
- General industrial air-liquid separation
The Solberg STS-150C provides reliable liquid separation performance with a compact footprint, helping protect vacuum systems from liquid damage and improving overall system efficiency and reliability.
