Product Description

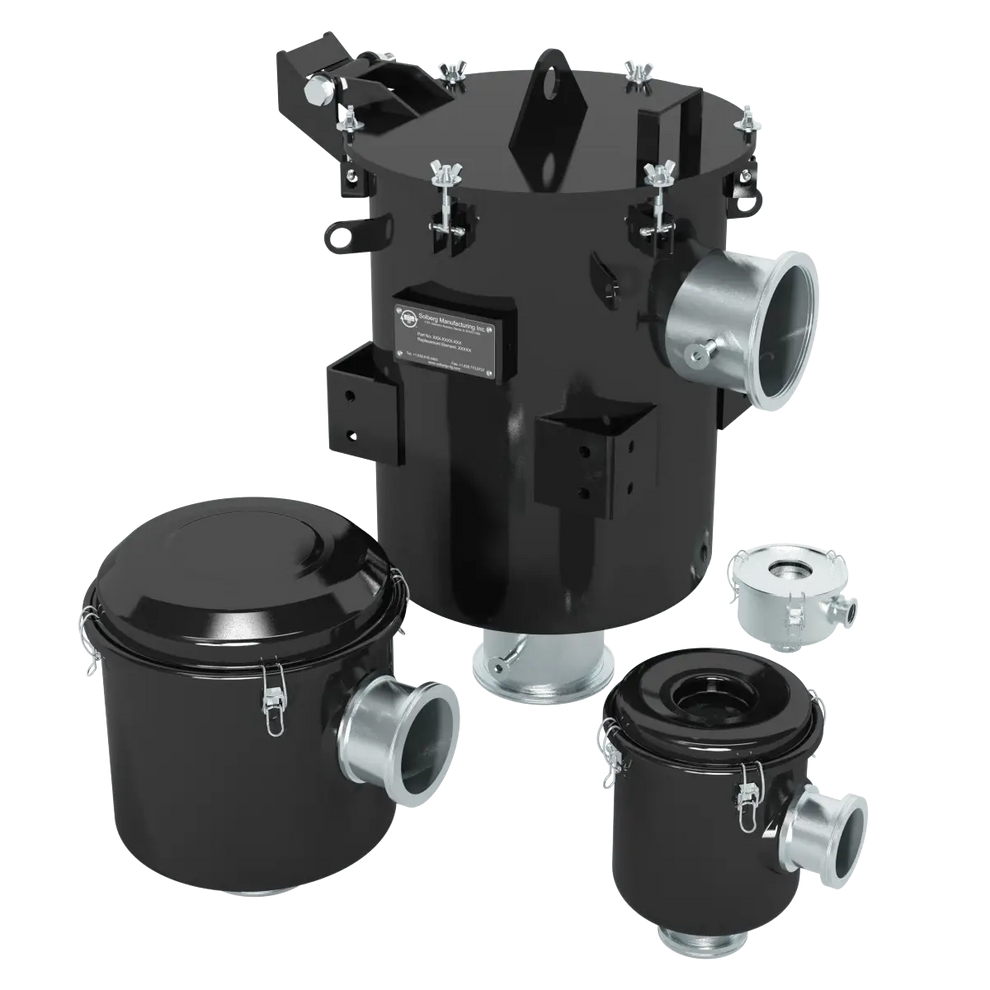

Solberg WL-825-NW16B ISO Flange Inlet Vacuum Filter
The Solberg WL-825-NW16B is a compact medium-to-high vacuum inlet filter engineered for industrial and semiconductor vacuum applications requiring reliable particulate filtration and verified vacuum integrity. Featuring ISO NW16 flange connections, a high-efficiency polyester filter element, and corrosion-resistant construction, this WL Series filter provides dependable protection for sensitive vacuum equipment and systems.
Key Features
- Compact WL Series L-style inlet vacuum filter
- ISO NW16 stainless steel flange connections
- High-efficiency polyester filter media
- 99%+ filtration efficiency at 5 micron
- Corrosion-resistant carbon steel housing
- Black powder-coated finish for enhanced durability
- Buna O-ring sealed ISO flange connections
- Seamless drawn housing construction
- Vacuum-tight O-ring housing seal
- Stainless steel torsion clips for secure assembly
- Helium leak tested for vacuum integrity
- Designed for medium to high vacuum applications
Technical Specifications
- Model: WL-825-NW16B
- Series: WL Series
- Configuration: L-Style / Right Angle
- Connection Type: ISO KF Flange
- Connection Size: NW16
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Airflow: 23 SCFM (39 m³/h)
- Housing Material: Powder-Coated Carbon Steel
- Seal Material: Buna O-Ring
- Vacuum Leak Rate: 1x10-5 mbar/l/sec or better
- Operating Temperature: -15°F to 220°F (-26°C to 104°C)
- Dimensions: A: 3.88", B: 2.63", C: 3.75", D: 2.25"
- Weight: Approximately 0.4 kg
- Replacement Element: 825 Polyester Element
Applications
The Solberg WL-825-NW16B is ideal for medium and high vacuum applications requiring clean and reliable inlet air filtration, including:
- Vacuum pumps
- Semiconductor processing equipment
- Laboratory vacuum systems
- Analytical instrumentation
- Vacuum coating systems
- Industrial process vacuum systems
- Research and development equipment
- Chemical processing applications
Benefits
The WL-825-NW16B helps protect sensitive vacuum equipment from harmful particulate contamination while maintaining high vacuum integrity and system efficiency. Its compact design, leak-tested construction, and durable materials make it an excellent solution for demanding industrial and scientific vacuum applications.
