Product Description

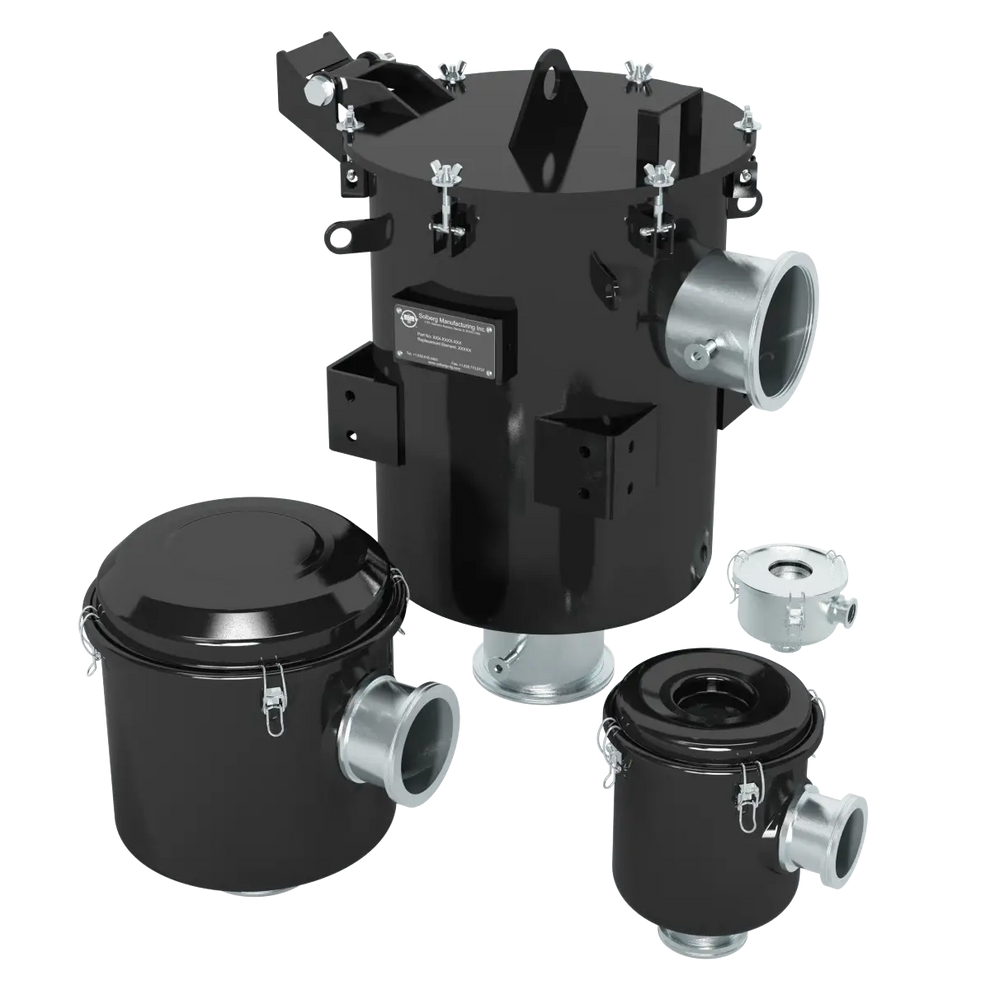

Solberg WL-825-NW25B ISO Inlet Vacuum Filter
The Solberg WL-825-NW25B ISO Inlet Vacuum Filter is designed for medium to high vacuum applications requiring reliable particulate filtration and verified vacuum integrity. Engineered for industrial and semiconductor processes, this compact L-style vacuum filter protects vacuum pumps and sensitive systems from harmful airborne contaminants while maintaining dependable vacuum performance.
The WL Series features a corrosion-resistant carbon steel housing with a durable black powder-coated finish and stainless steel ISO flange connections. Its high-efficiency polyester filter element delivers excellent particulate removal, while helium leak-tested construction ensures superior vacuum integrity for critical applications.
Key Features
- L-style ISO inlet vacuum filter design
- High-efficiency polyester filter element
- 5 micron filtration rating
- NW25 ISO flange connections
- 25 SCFM airflow capacity
- 99%+ filtration efficiency at 5 microns
- Helium leak tested for vacuum integrity
- Corrosion-resistant carbon steel construction
- Black powder-coated finish
- Buna O-ring sealed housing
- Stainless steel ISO flange and torsion clips
- Compact seamless drawn housing design
Applications
- Vacuum pumps
- Semiconductor processing systems
- Vacuum furnaces
- Deposition tools
- Industrial vacuum systems
- Medium to high vacuum applications
- Laboratory vacuum systems
Technical Specifications
- Model: WL-825-NW25B
- Series: WL Series
- Connection Type: ISO Flange
- Connection Size: NW25
- Filter Media: Polyester
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+ @ 5 Micron
- Flow Capacity: 25 SCFM
- Housing Material: Powder-Coated Carbon Steel
- Seal Material: Buna O-Ring
- Replacement Element: 825 Polyester Element
- Vacuum Leak Rate: 1x10?? mbar/l/sec or better
- Operating Temperature: -15°F to 220°F
- Dimensions: A: 3.88", B: 2.63", C: 3.75", D: 2.25"
- Approximate Weight: 1.2 lbs
The Solberg WL-825-NW25B delivers dependable inlet filtration and vacuum system protection for industrial and high-vacuum applications requiring reliable performance, superior filtration efficiency, and verified vacuum integrity.
