Product Description

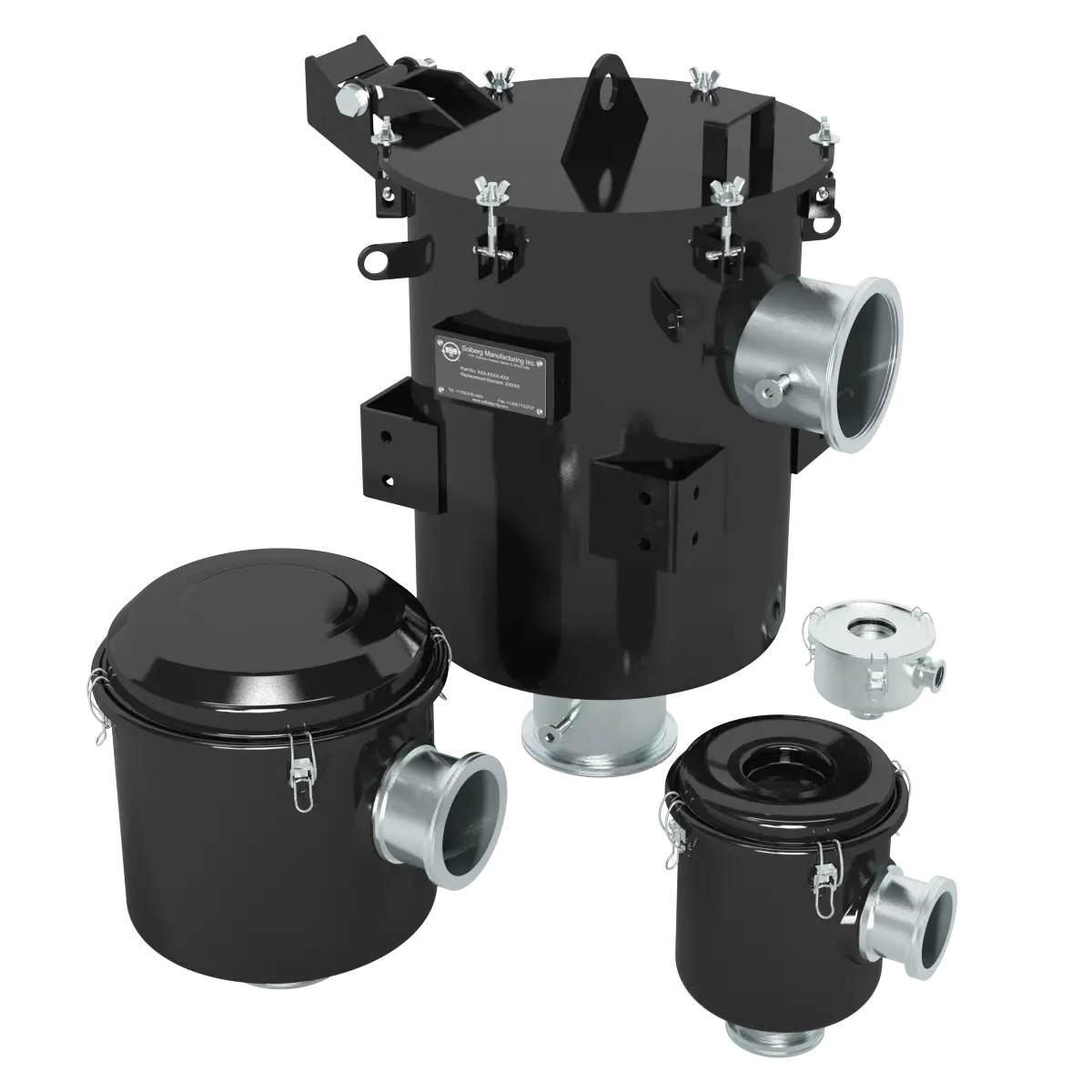

The Solberg WL-848-NW40EN Inlet Vacuum Filter is engineered for medium to high vacuum applications requiring efficient particulate filtration and dependable vacuum integrity. Featuring ISO NW40 flange connections and a corrosion-resistant electroless nickel-plated carbon steel housing, this industrial vacuum filter provides reliable protection for vacuum pumps and sensitive process equipment.
This model utilizes a high-efficiency paper filter element rated at 2 microns with 99%+ filtration efficiency, helping remove fine particulate contaminants from industrial vacuum systems. The seamless drawn housing, stainless steel ISO flange construction, Buna O-ring sealing system, and stainless steel torsion clips ensure leak-resistant and long-lasting vacuum performance in demanding operating environments.
- Model: WL-848-NW40EN
- Series: WL Series
- Connection Type: ISO Flange (NW40)
- Filter Media: Paper Element
- Filtration Rating: 2 Micron
- Filtration Efficiency: 99%+ at 2 Microns
- Maximum Flow Rate: 80 SCFM (136 m³/h)
- Housing Material: Corrosion-Resistant Carbon Steel
- Finish: Electroless Nickel Plating
- Seal Material: Buna O-Ring
- Vacuum Leak Rate: 1 x 10-5 mbar/l/sec or better
- Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Construction: Seamless Drawn Housing with Stainless Steel Torsion Clips
- Replacement Element: 848
- Approximate Weight: 4.96 lb (2.25 kg)
- Application: Vacuum Pump Protection, Semiconductor Processing, Thin-Film Manufacturing, Vacuum Coating, Laboratory Vacuum Systems
The Solberg WL Series vacuum filters are engineered for industrial vacuum systems where compact construction, high-efficiency filtration, and dependable vacuum sealing are essential for long-term equipment protection and system performance.
