SOS Cleanroom Osram Sylvania 64657 250W Halogen Light Bulb (10 Pack)

Product Description

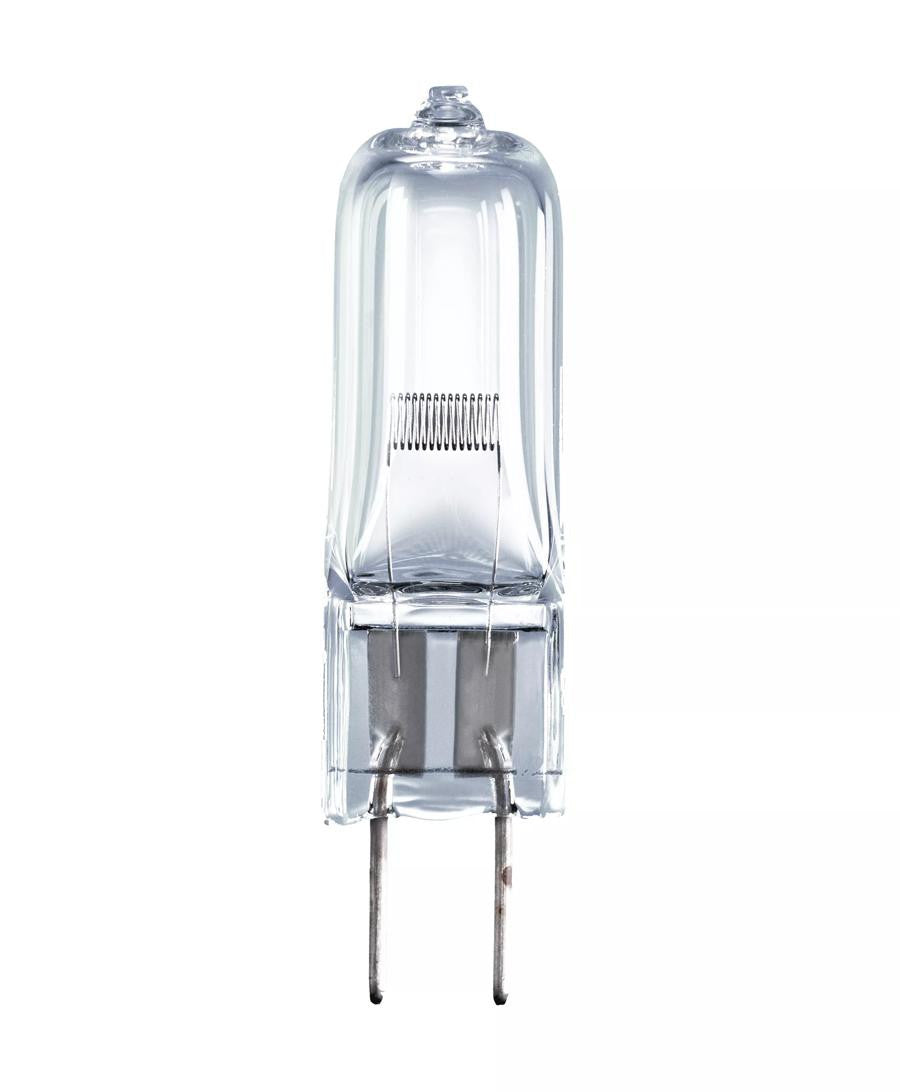

Osram Sylvania 64657 250W Halogen Light Bulb (10 Pack)

Product features and benefits
- Precise filament and reflector alignment with patented quartz pinch technology
- HLX lamps provide 10% higher luminous flux with same power consumption over standard halogen
- Instant on and nearly constant luminous flux over the life of the lamp
- Dimmable

Areas of application
- Microscopy
- Laboratory & Analysis
- UV Curing
- Fiber Illumination
- Surgical & Dental Overhead

General Product Information
Product number (Americas): 54255
Product name (Americas): EVC 64657 HLX 250W 24V 40/CS 1/SKU
Family brand: XENOPHOT (HLX)
Lamp type: SINGLE END
ANSI code: EVC
LIF code: M/33
Global order reference: 64657 HLX

Electrical Data
Nominal wattage: 250 W
Nominal voltage: 24 V
Type of current: AC

Photometric Data
Nominal luminous flux: 9000 lm
Illuminated field: 8.0*4.0 mm²
Color rendering index Ra: 100
Light center length (LCL): 33.0 mm
Light center length (LCL) - (in): 1.287 in

Physical Attributes & Dimensions
Lamp base: G6.35
Diameter (in): 0.551 in
Diameter: 13.5 mm
Length: 55.0 mm
Product weight: 3.35 g

Operating Conditions
Burning position: s90

Lifetime Data
Nominal lifetime: 300 hr

Environmental & Regulatory Information
Primary article identifier: 4050300012001
Declaration no. in SCIP database: No declarable substances contained
Candidate list substance 1: No declarable substances contained

Safety advice
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
